    Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG-100G
    Certification : CE
    Price : USD2245-USD2535/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    Precision TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester Pressure Load 50g

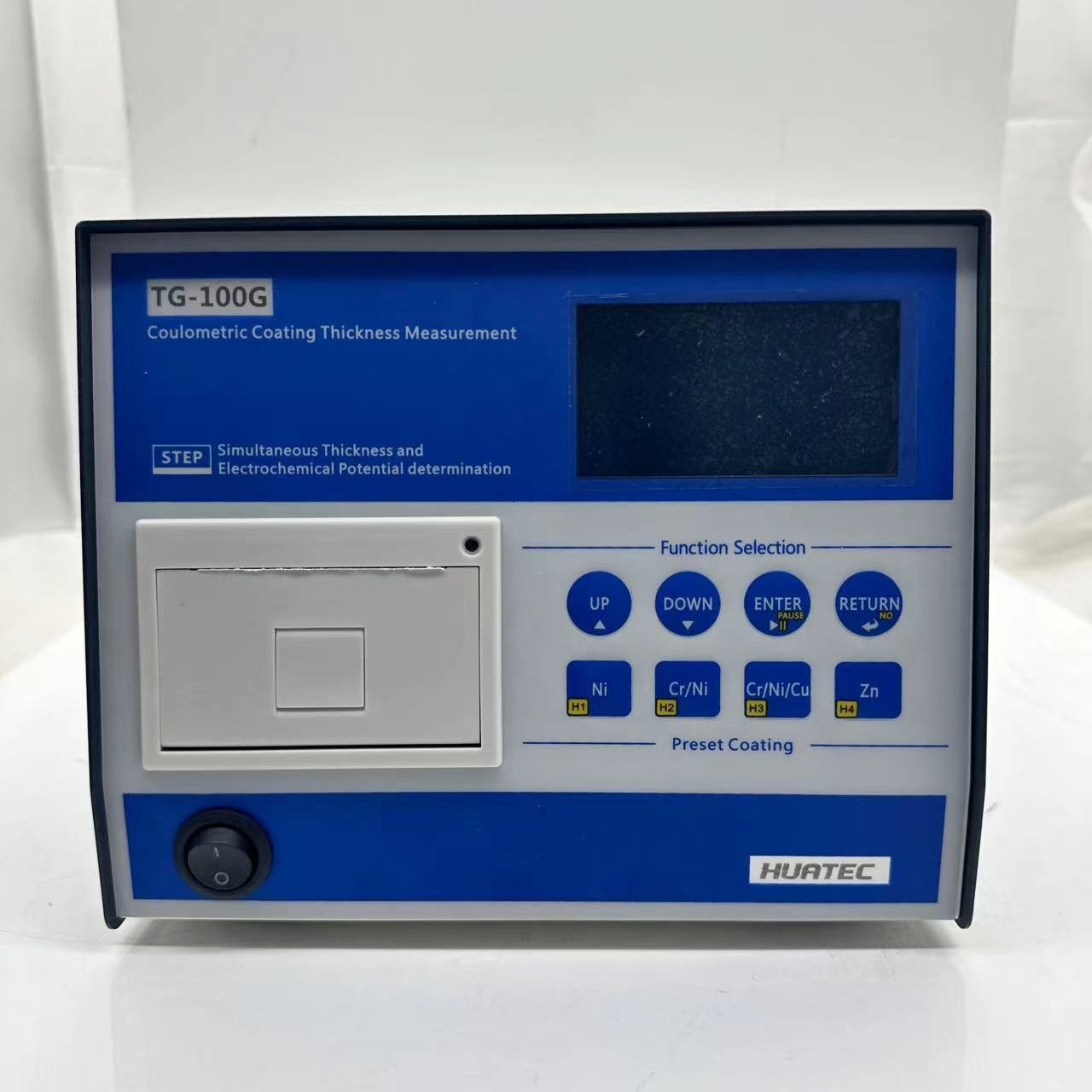

    TG-100G Inbuilt Printer Nickel-copper-nickel Electroplating Coulometric Thickness Tester


    TG-100G is more focused on the automobile, motorcycle, and sanitary ware industries, because these industries will use the potential difference function. And neodymium iron boron industry, to solve the test problems of the underlying nickel. Automobiles such as: signs, car door locks, car handles, car interior parts, motorcycles such as mufflers, motorcycle, brackets, sanitary wares such as: mixing water valves, towel racks, neodymium Iron-boron: mainly nickel-copper-nickel electroplating.


    Technifical specification

    Plating typeSingle metal pating layerComposite multiple plating layerAlloy plating layerMulti-layer nickel
    Cr,Ni,Cu, Zn,Sn,Ag, Au,Cd,Co, Pb etc.Cr/Ni/Cu etc.NiP,ZnNi, SZn,SPb etc.The thickness of each layer of multilayer nickel and the potential difference between nickel layers
    SubstrateMetalNon-metal
    Steel,copper,copper alloys, die-cast zinc,aluminum etcPlastic,neodymium iron boron,ceramics etc
    Measuring range0.03~300μm
    The best use range 0.03~50um,Over 50um,the error will gradually become larger
    Resolution0.01um
    Repeatability≤5%
    Indication error≤10%
    Potential range0~3000mv
    Potential accuracy0.01mv
    Probe sizeStandard:φ2.4,φ1.7(unit:mm)
    Optional:φ1.2,φ1.0,φ0.8(unit:mm)
    Wire testDiameter 0.050~4mm
    multi-layer coating thickness on the cylindrical surface, without conversion, direct reading
    Test standStandard:STD07
    Optional:STD16,STD19,STD-W wire test stand
    CalibrationFactory calibration
    calibrate a single coating with calibration foils or uniformly calibrate
    Stop measurementAutomatic judgment
    Stand-alone useWhen not measuring the potential difference
    PrintA laser or inkjet printer can be purchased separately to print A4 format test results, Excel format, content can be customized
    In stand-alone use, a thermal printer can be used to print the test results
    Print ContentPlating type, single measurement value, average value, maximum value, minimum value, standard deviation, coefficient of variation, time
    Thickness-potential curve
    Display modeOnline use:PC Screen display
    Stand-alone use:126*64 dot LCD screen
    Data stroagePC Database
    Test Hot KeyStand-aone use,you can customize the hot key for single plating or multiple plating/substrate combination
    Curve Analysiscan be displayed on the same screen and modified at will
    Pause testFor thick coatings, you can pause at any time and continue the test after changing the electrolyte
    Data checkmultiple query methods
    Operating systemWindows XP,win7,win10
    Software upgradeNew products in December 2019, continuous upgrade
    Power SupplyAC 220V, AC 110V can be customized
    Host Size200*255*161(mm)
