1 Μm Resolution TG-8010 Laboratory Coating Thickness Gauge With ±1-3%n Accuracy

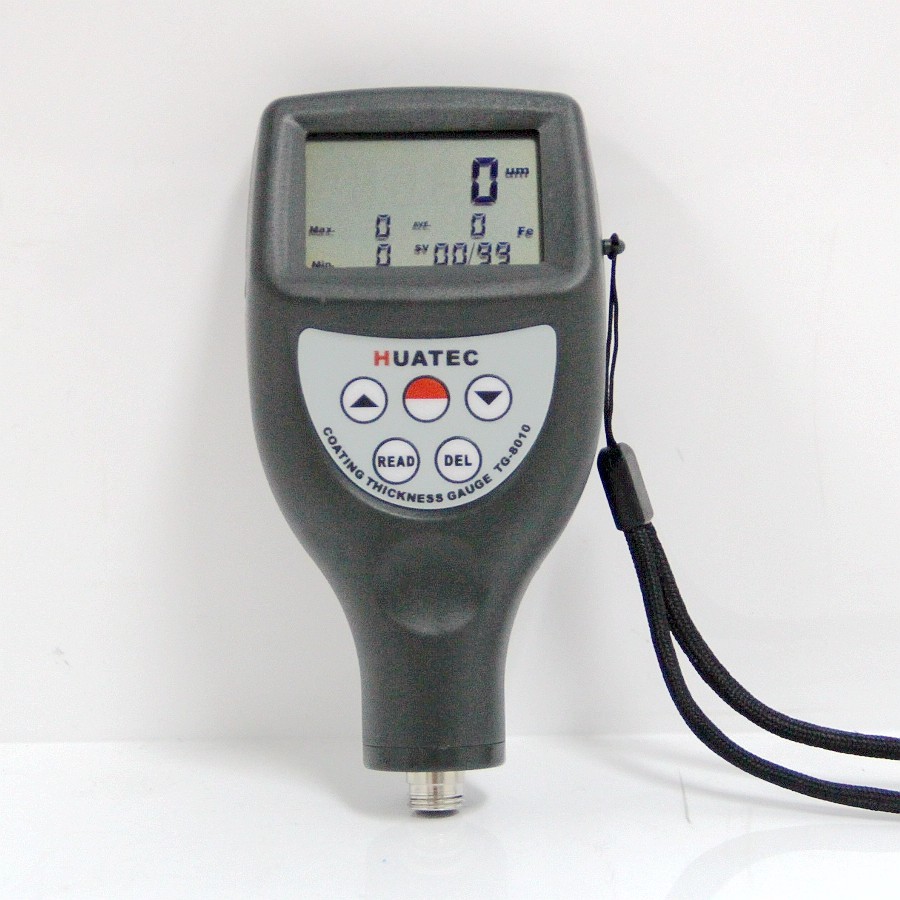

TG-8010 laboratory Coating Thickness Gauge

1.FEATURES
* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel,copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of n o n - m a g n e t i c c o a t i n g s o n n o n -m a g n e t i c m e t a l s . I t i s u s e d o n anodizing, varnish, paint, enamel, plastic coatings, powder,etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Can store 99 groups of measurements.
* Statistics is available.

TECHNICAL DATA

Display	4 digits LCD, backlit
Measuring range	0~1250 μm/0~50mil(other ranges can be specified )
Min.radius workpiece	F: Convex 1.5mm/Concave 25mm N: Convex 3mm/ Concave 50mm
resolution	0.1 μm (0~99.9μm);1 μm (over 100μm)
Min. measuring area	6 mm
Min.Sample thickness	0.3mm
Accuracy	±1~3%n or 2.5 μm or 0.1mil(Whichever is the greater)
Bttery Indicator	Low batter indicator
PC interface	with RS-232C interface
Power supply	2x1.5 AAA(UM-4) battery
Operating condition	Temp. 0~50℃ .Humidity <95% .
Size	126x65x35 mm; 5.0x2.6x1.6 inch
Weight	about 81g(not including batteries)

Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.

Optional accessories:
RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
