    TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG-3500
    Certification : CE
    Price : USD380-USD430/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

    TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge


    Features

    * Using the latest high performance and low power consumption microprocessor technology.

    * Automatic memory material code and sound velocity value, convenient to use.

    * Use “USB data output” and “RS-232 data output” to connect with PC.

    * Provide “Bluetooth ™ data output”


    Specifications

    Display4 Digit, 10 mm LCD
    Operating PrincipleUltrasonic
    Measuring Range (metric / Imperial)0.75~400mm (45# steel) (Depend on Probe)
    Battery IndicationLow Battery Indication
    Sound Velocity1000~9999 m/s
    Lower Limit Steel PipesΦ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
    Calibration BlockIncluded
    Resolution0.1mm / 0.01mm / 0.001inch
    Accuracy± (0.5%n + 0.1)
    Power offAuto Power off & Manual Power Off
    Operating ConditionsTemperature: 0~40 °C, Humidity: < 85 %RH
    Power Supply4 x 1.5 V AAA (UM-4) Battery
    Dimensions140 x 72 x 34 mm
    Weight185 g (Not Including Batteries)

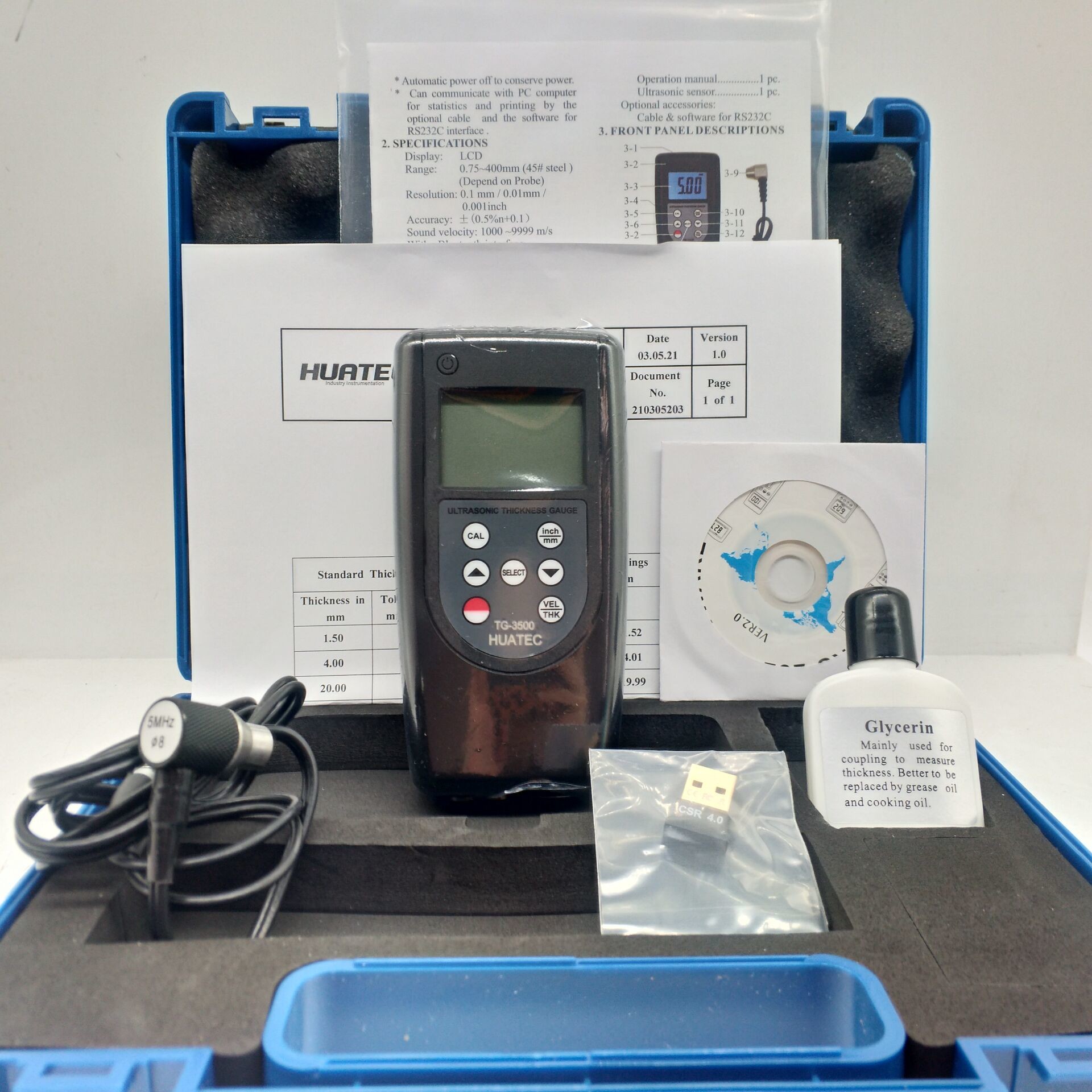

    Standard Delivery:

    1. Main Unit

    2. 5MФ8 Standard Sensor

    3. Coupling Agent

    4. Carrying Case

    5. Operating Manual


    Optional Accessories:

    1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C

    2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C

    3. Curved Surface Probe

    4. USB, RS-232C data cable with software

    5. Bluetooth data output with software


    TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge

    TG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness GaugeTG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness GaugeTG-3500 Bluetooth Big Range Portable Digital Ultrasonic Wall Thickness Gauge
