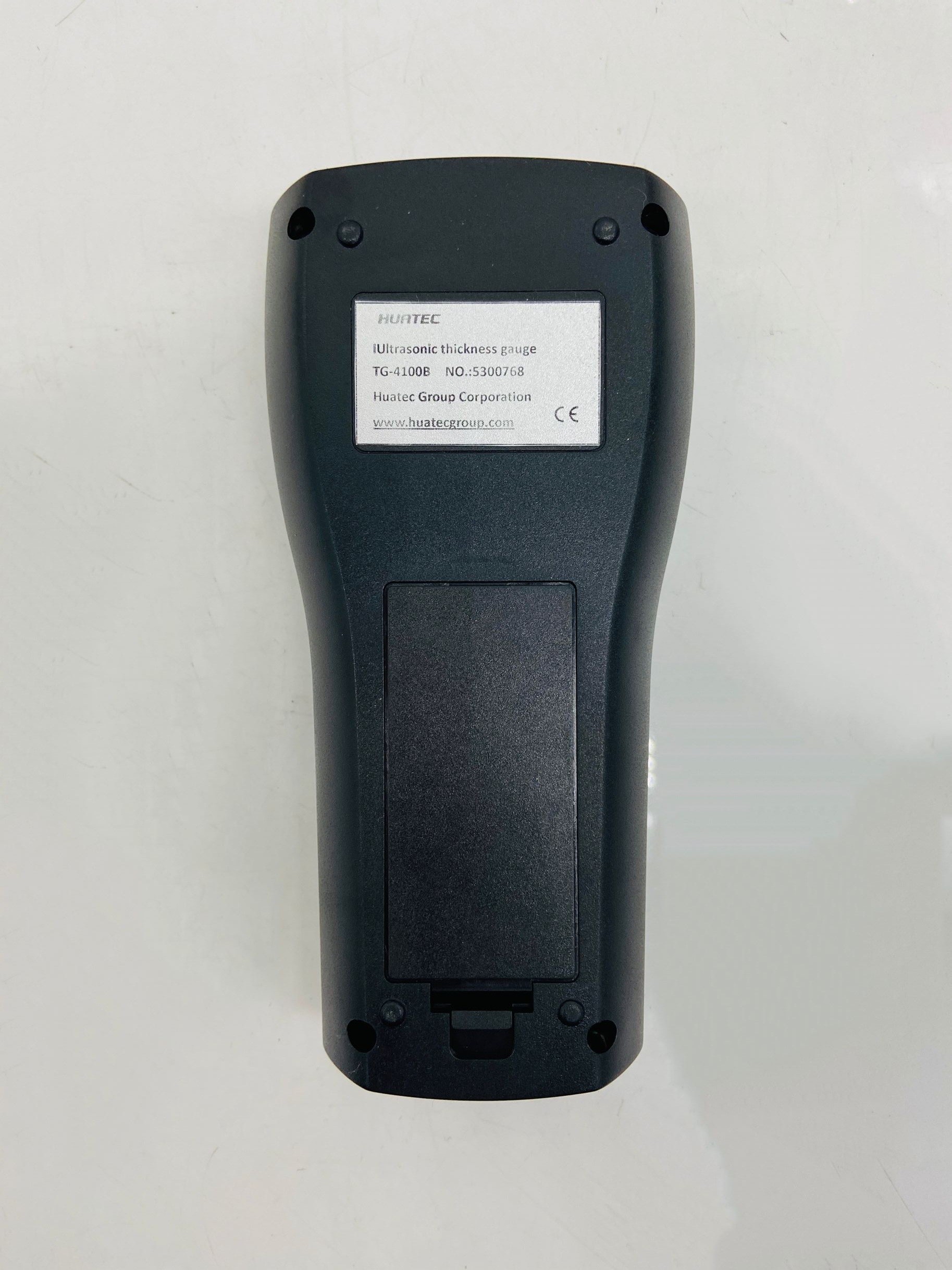

    TG4100B High Precision Thin Piece Ultrasonic Thickness Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG4100B
    Certification : CE
    Price : USD565S-USD637/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    TG4100B High Precision Thin Piece Ultrasonic Thickness Gauge

    TG4100B High Precision Thin piece Ultrasonic Thickness Gauge


    Usage
    Widely used to measure the thickness of metal materials. Especially display its advantage for measuring the thin piece and high precision measuring. What’s more, it can also through the thin coating layer and paint layer, and also be used to measure ultra thin wall with paint layer like fire extinguisher.


    TECHNICAL DATA

    Display128X64 Pixel LCD with backlight
    Measuring range

    0.8 mm-- 300.0 mm in steel depending on the probe

    Special request can reach measuring range up to 500mm

    Tolerance+/-0.05 mm in steel
    Display resolution0.01mm
    Built-in standard block4.00 mm
    Memory500 datas in 5 groups, memory does not lose after powering off
    Velocity range1000-9999 m/s
    Power2 pcs 1.2 V AAA batteries
    Outside dimension149X73X32 mm
    Net Weight160 g

    FEATURES

    Probe Zero Adjustment:

    Selectable: 1-point calibration: normal measurement

    2-point calibration: curve surface measurement or other special application with a high precision

    V-Path Correction: Automatic

    Automatic self-calibration

    Couplant indicator

    Automatic power off in 5 minutes and manual power off function

    High-low limit alarm

    LCD brightness adjustable

    Measurement Update rate: 4 Hz

    Minimum value scanning (MIN Capture mode): catch the minimum value during the measurement.

    Can modify systematical errors by using the 4mm standard block on the instrument.

    Low battery indicator

    Metric/imperial optional

    Dataview for PC communication


    STANDARD DELIVERY


    TG4100B main unit

    Hard carrying case

    Couplant bottle

    Standard 8 mm, 5 MHz probe PT-08 with cable


    OPTIONAL ACCESSORIES


    4 steps steel test block

    7 steps metrics steel test block

    5 MHz, 4 mm contact probe

    10 MHz, 4 mm, contact probe

    5 MHz high temp. probe

    Probe cables

    Water proof housing

    Dataview CD and communication cable optional


    TG4100B High Precision Thin Piece Ultrasonic Thickness GaugeTG4100B High Precision Thin Piece Ultrasonic Thickness Gauge
