Portable Puller Adhesion Tester Paints And Varnishes Pull-off Test
For Adhesion
Application field
HKSM-1 puller adhesion tester can measure the adhesion of metal,
paint, spray, waterproof material, adhesive, chrome plating, nickel
plating, concrete and other material coatings. The working
principle of the instrument is to use the hydraulic system to
measure the adhesion of the coating of a certain diameter on the
surface of the matrix. The multifunctional digital display of the
tester shows the size of the adhesion, with MPa or KN as the unit
of display. Digital display, the test results are intuitive and
reliable. Different from the marking device, the error of human
observation is reduced. The product according to international and
national standards design and manufacturing, leading technology,
stable performance
Conforming standard
ISO 4624 Paints and varnishes Pull-offtest for adhesion
② ASTM D 4541 StandardTest Method for Pull-Off Strength of Coatings
Using Portable Adhesion Testers
③ ASTM D7234 Standard Test Method for Pull-OffAdhesion Strength of
Coatings on Concrete Using Portable Pull-OffAdhesion Testers
④ GB/T 5210-2006 "color paint and varnish pulling method adhesion
test"
TB-T2965-2011 "Railway Concrete bridge deck waterproof layer
Technical Conditions"
Instrument parameter
| Instrument structure | one-piece |
| Display mode | Force value and strength switch with one key |
| Measuring range | Force range: 0-10.000KN Range of mpa values: 10mm block 0-127.38MPa 14mm block 0-64.99 MPa 20mm block 0-31.84 MPa 50mm block 0-5.09 MPa |
| resolution | 0.001K N 0.001 MPa |
| accuracy | ±1% |
| Peak retention | yes |
| Liquid crystal lighting | yes |
| Charging mode | 2000mAh High capacity rechargeable battery |
| Automatic shutdown | yes |
| Main material | Light alloy |

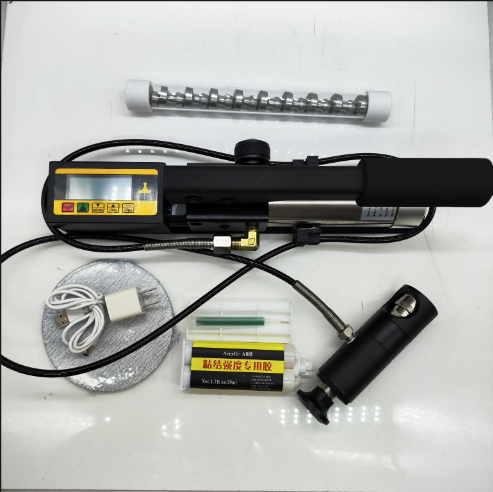

Product configuration:
1. A digital display manual pump
2. Quickly pull out one sleeve
3. A charger
4.20mm spindle ten
5. One cutter
6. Grinding pad six pieces
7. A set of adhesives
8. One copy of certificate, warranty card and manual
9. A portable instrument case
Instrument characteristics:
1, portable handheld instrument, can be used anywhere, no external
power supply - can be used in the laboratory, can be used in the
field.
2, large and easy to read LCD digital display
3. Press the button to select the spindle size, measuring unit and
storage data, and calculate the result automatically according to
the spindle size.
4, portable instrument box with alloy and stainless steel body,
rain proof, dust proof, anti-impact.
5, high quality hydraulic pump can be used in any occasion,
warranty for one years.
6, the pressure and display system are calibrated by the standard
dynamometer, the accuracy is controlled within ±1%(full scale).
7, self-positioning spindle, smooth and rough surface has no effect
on the measurement results.
8, high-grade industrial pressure sensor to ensure continuous high
precision.
9, optional 10mm, 14mm, 20mm and 50mm spindle.
10, LCD liquid crystal display, you can choose MPa or KN unit.
