    Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : HUH-6M
    Certification : ISO,CE
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000sets per month
    Delivery Time : 5~10 days after payment
    • Product Details
    • Company Profile

    Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

    Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring


    1. Functional Characteristics

    • Main hardness scale: HV

    Convertible hardness scale: HRC, HRA, HRB, HBW

    • In multi-points calibration mode, any hardness scales can be chosen.
    • Testing range: HV50~1599, HRC20~68, HB85~650
    • Test direction:Support 360° test, as long as the angle between the indenter and the surface doesn’t exceed 90° ± 3°.
    • Battery: 3.6V, 3000mAh lithium battery
    • Endurance: 10 hours
    • Test data can be exported to computer terminal.
    • Norms: DIN 50159-1-2008; ASTM-A1038-2005; JB/T 9377-2010; JJG-654-2013;JJF 1436-2013.
    • High accuracy----±4%HV, ±4%HB, ±1.5HR.
    • Tiny test indentation---- requires a high-power microscope to see.
    • Little damage to the workpiece.
    • High test speed----output test results in 1s at the soonest.
    • New appearance design, innovative sculpt, convenient to hold and good craft.
    • Full English display, menu-type operation, few keys, simple and convenient to operate.
    • 3.5 inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display.
    • Directly display the current measured value, cumulative measured value, maximum value, minimum value, average value and conversion value.
    • 50 sets of data storage.
    • Simple calibration----5 sets of one-blockcalibration data, 1 set of default calibration data and 5 sets of multi-blocksscalibration data can be stored in the host.
    • For materials with different elastic constants, just anone-block calibration is required to adapt to the new material.
    • For unknown material or material without conversion table, the hardness scale can be arbitrarily selected for multi-points calibration to eliminate the systematic error brought by the conversion table.
    • Easy to test on assembly line.

    2.Accuracy

    ModelUltrasonic Hardness Tester
    Test range:

    HV50-1599,HRC20-68,HB85-650,HRB41-100,HRA61-85.6,

    HS34.2-97.3,MPa255-2180

    Accuracy±4%HB,±1.5HR,HV please refer to the table below

    Accuracy

    Hardness valueMaximum allowable relative error of hardness tester %
    HV10HV5HV2HV1
    <250HV4444
    250HV-500HV4444
    >500HV-800HV4455
    >800HV4466


    3.Application

    • Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
    • Hardness test of axle and thin-wall pipes and vessels
    • Hardness test of wheels and turbine rotors
    • Hardness test of bit edge
    • Hardness test of welding parts
    • Measure the depth of deep hole with certain aperture, concave and convexwith large radians, and irregular plane
    • Hardness test of most ferrous and nonferrous metals and their alloys in industrial production
    • Hardness test of thin coatings
    • etc.

    4. Workpiece Requirements for UCI method

    Because ultrasonic hardness tester is a kind of Vickers hardness tester, the requirements of Vickers hardness tester are also met by ultrasonic hardness tester.


    5.Operating Conditions

    1. Temperature: -10℃~40℃
    2. Humidity: ≤ 90%RH
    3. No strong electromagnetic interference

    6. Specification

    Battery:3000mAh/3.7V

    Host size: 170mm*70mm*20mm

    Probe size: Ǿ22mm*150mm

    Weight: 650g

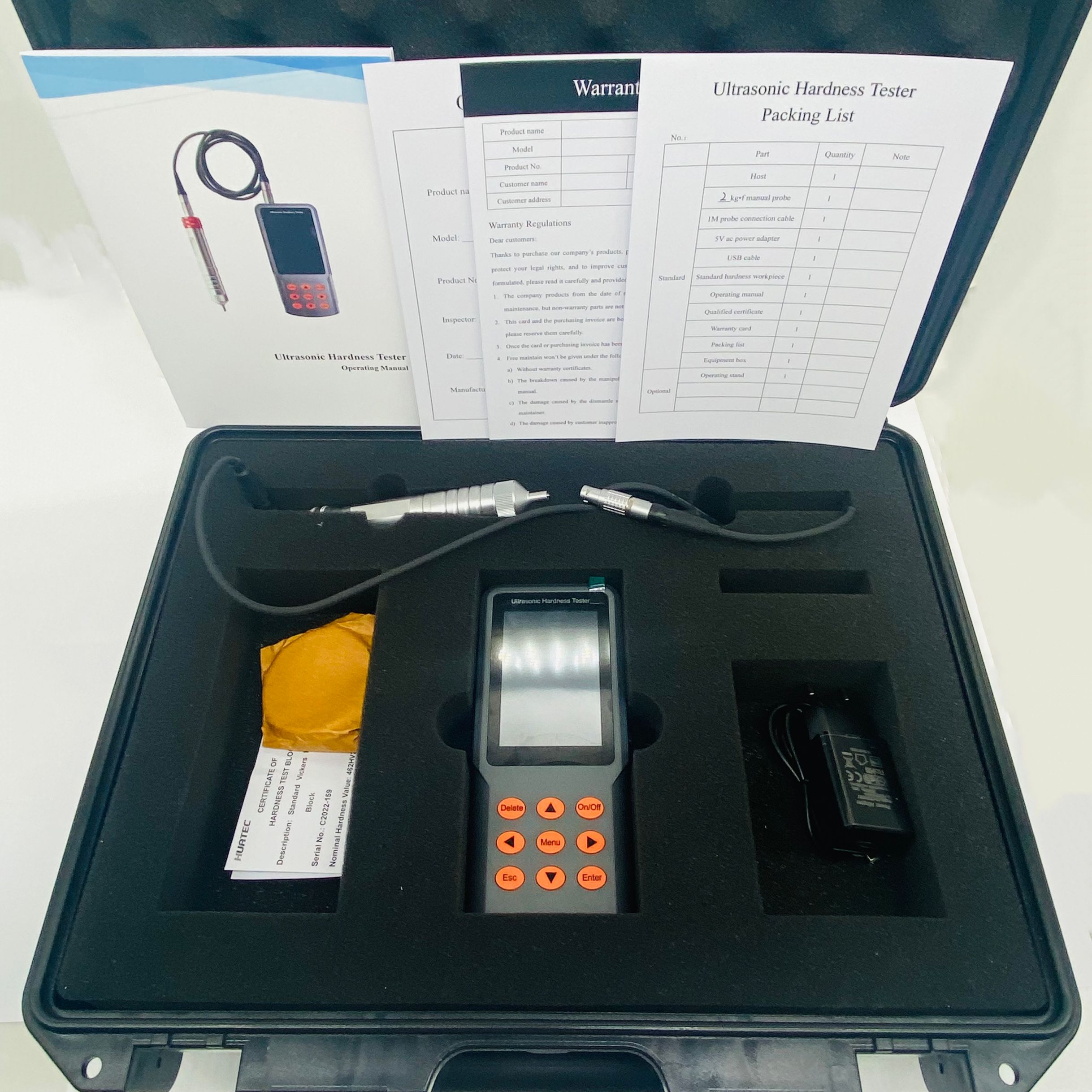

    7.Packing List

    Standard Delivery

    • Host
    • Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring Manual probe (2kgf)
    • Probe connection cable
    • 5V ac power adapter
    • USBcable
    • Standard hardness workpiece
    • Equipmentbox
    • Operating manual
    • Certificate
    • Warranty card
    • Packinglist

    Optional Accessories

    • Probe (1kgf, 3kgf, 5kgf, 10kgf)
    • Operating platform
