Name: RHL40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester
Brand: HUATEC
Price: 285 USD

Ask Lasest Price
Brand Name :	HUATEC
Model Number :	RHL-40B
Certification :	CE
Price :	USD285/set - USD325/set
Payment Terms :	T/T,Paypal
Supply Ability :	10sets/Month
Delivery Time :	1-3 working days after receipt of your payment

Add to Cart

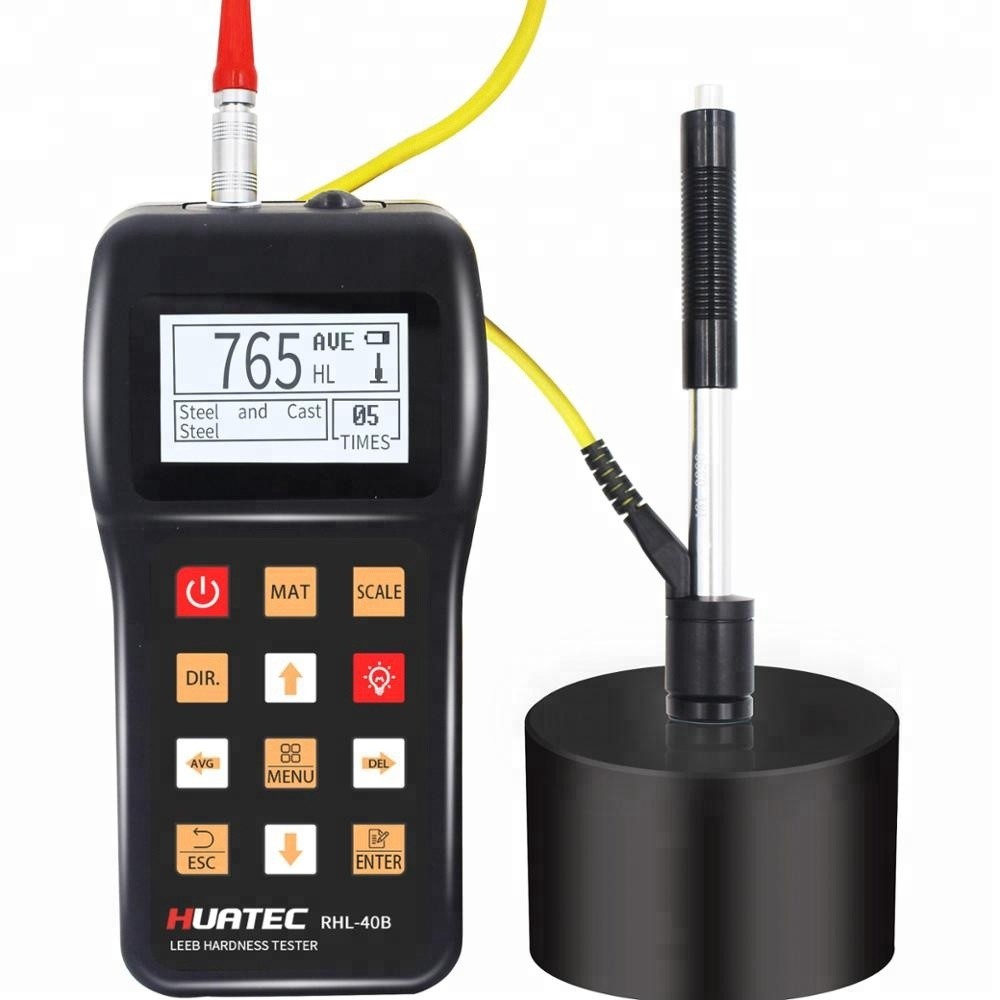

RHL-40B Segment LCD Back Light Display Large Capacity Memory Leeb Hardness Tester

Features:

Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.
Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
Large screen (segment LCD), showing all functions and parameters. With EL background light.
Large capacity memory could store 100 groups information.
Datapro Software to connect with PC via RS232 port. Micro printer support
Software calibration function.

Technical Specifications:

Measuring range	(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
Measuring direction	360°(↓↖↗↘↙→←↑)
Accuracy	±6HLD
Hardness Scale	HL,HB,HRB,HRC,HRA,HV,HS
Display	segment LCD
Data memory	max. 100 groups(relative to impact times 32～1)
Working voltage	3V(2 AA size alkaline battery)
Continuous working period	about 100 hours(With backlight off)
Communication interface	RS232

Main Application

Die cavity of molds

Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main unit	1
	2	D type impact device	1	With cable
	3	Standard test block	1
	4	Cleaning brush (I)	1
	5	Small support ring	1
	6	Alkaline battery	2	AA size
	7	Manual	1
	8	Instrument package case	1
Optional Configuration	9	Cleaning brush (II)	1	For use with G type impact device
	10	Other type of impact devices and support rings		Refer to Table 3 and Table 4 in the appendix.
	11	DataPro software	1
	12	Communication cable	1
	13	Micro Printer	1
	14	Print cable	1
