    HEC-102 Non Ferrous Metals Portable Eddy Current Electrical Conductivity Purity Meter

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HEC-102
    Certification : CE
    Price : USD2875/set - USD3250/set
    Payment Terms : T/T,Paypal
    Supply Ability : 10sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    HEC-102 Non Ferrous Metals Portable Eddy Current Electrical Conductivity Purity Meter

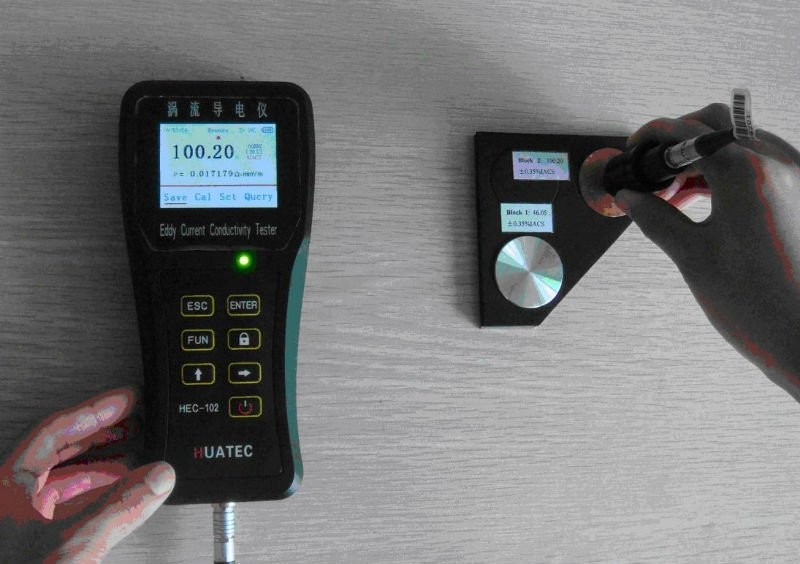

    HEC-102 Non-Ferrous Metals Portable Eddy Current Electrical Conductivity Purity Meter


    HEC-102 are designed for quick & convenient measurement of material property, such as
    material separate,quality control,material state check and so on.
    HEC-102 use 60 KHz~120 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations,thus can guarantee the testing accuracy of each measurement. The big typeface and the backlight illumination designs are advantageous for users to take the testing data even in low light condition.
    The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. HEC-10X can store 1000 measurement datas, moreover, users can use USB connect the meter to a PC to create testing report


    Technical parameters

    Measurement technologyEddy current
    Operating frequency6.9~110%IACS(4.0~64MS/m)
    Display screen240X320 pixels TFT-LCD
    L*B*H180*90*40 mm
    Instrument caseAnti-intense impact, water-proofing polyester; Toolbox.
    Weight300g
    conductivity standard blockVerify and guarantee temperature compensation.
    Measuring range6.9%IACS-110%IACS(4.0MS/m-64MS/m)
    Distinguishing rateConductivity : 0.01% IACS(MS/m)
    Resistivity: 0.000001Ω·(mm)2/m
    Probe compensated0.1mm
    Measuring accuracy

    0°C to 45°C

    ± 0.1%IACS~ 0.3%IACS

    Temperature compensationAutomatic compensation to the value of 20 ℃.
    Normal work environmentRelative humidity0~95%
    Operating temperature0℃~50℃
    Data storageData Logger Memory Up to 1000 readings.
    Can use the USB data line connect to
    the computer to print

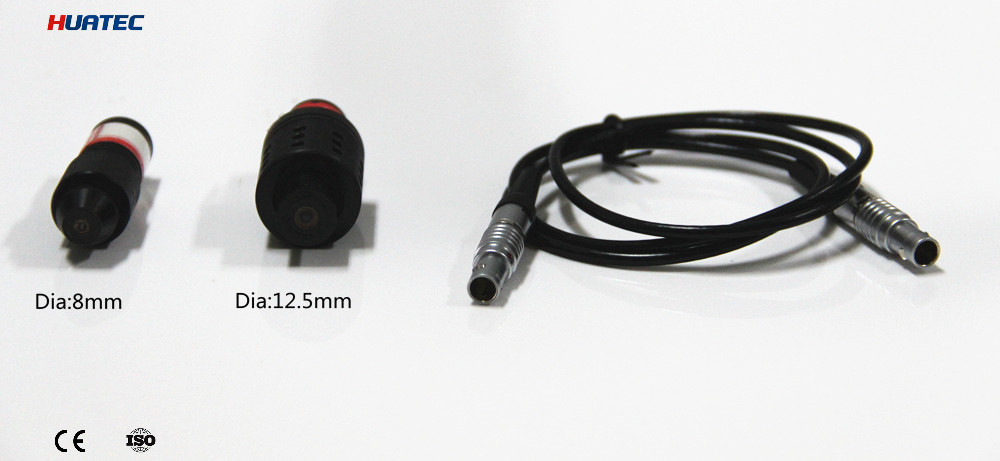

    HEC-102 Non Ferrous Metals Portable Eddy Current Electrical Conductivity Purity MeterProbe

    Probes 12.7 mm diameter, for 60 kHz;
    8 mm probe operates at 120 kHz (optional)

    Φ12.7mm: Applicable to minimum measuring area diameter of10mm.
    Φ8mm: Applicable to minimum measuring area diameter of 7 mm.


    Application:

    1. Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

    2. In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;

    3. Test the conductivity whenthe aluminum have not been oxidized;

    4. Measurement the purity of non-ferrous metals;

    5. Test the resistivity ofconductivematerials;

    6. Analyze thermal properties ofmaterials.


    Standard delivery

    Main unit1Carrying case1
    Probe 12mm1Manual1
    Probe cable1Cleaning cloth1
    Calibration block AI&Cu1PC sotware with cable
    Probe sheath1

    Optional accessories

    Probe dia.12mm

    Probe dia.8mm

    Calibration block

    Probe cable
