    HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HCDX-Y9
    Certification : CE
    Price : USD565-USD635/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

    HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke

    HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke


    FEATURES

    • Ergonomic, light-weight design

    • IP54 sealed housing resists dust and water

    • Field-swappable power cord

    • Isolated, replaceable trigger switch

    • Steel shields for leg protection

    • Exceeds ASTM lifting specifications

    • Convenient carrying case supplied with all yoke shipments

    • Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs

    • Two power supply modes are optional:

     110V/220V/240V Single-phase AC power supply (straight plug mode);

     DC magnetization power supply (DC battery pack with digital display screen)

    • Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.


    Parameters index

    Model

    Items

    HCDX-Y2HCDX-Y9
    Electrical Requirements

    AC110-115V 50/60Hz

    AC220-230V 50/60 Hz

    AC240V 50/60Hz

    WaveformAC
    Tangential Field Strength> 2kA/m at midpoint between legs / poles
    Working temperature-10~+40℃
    Duty Cycle50%, max on time is 90 seconds
    Ingress Protection (IEC 60259)IP54
    Relative humidity<80%
    SensitivityASTM E1444-05,ASME 2007 page number V
    DC power packX
    AC working currentAC2.2A
    DC working currentXDC 1.5A
    Battery charging timeX3hours
    Battery working timeX6h
    Leg / Pole Span0~220mm
    Leg size22*22mm
    Power cord length3M
    Lifting ForceA C≥7.1kg (69N)
    D C≥22.2kg (216N)
    WeightYoke2.3kg
    DC BatteryX0.6kg

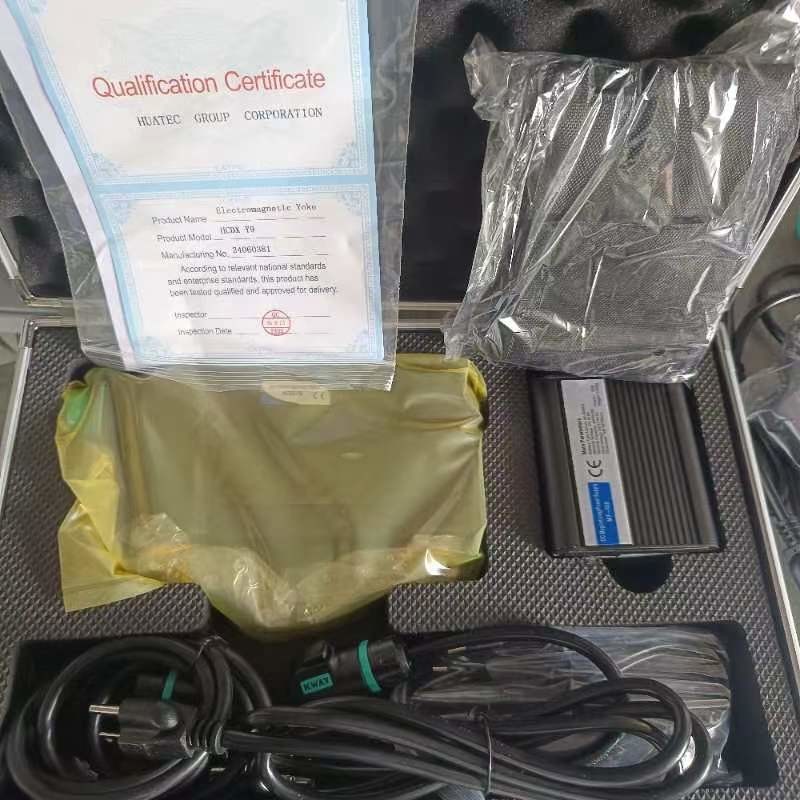

    Standard package:

    HCDX-Y9

    Yoke

    Power cord

    Calibration certificate

    Warranty card

    Carrying case

    DC battery pack

    DC battery charger

    DC battery power cord

    DC battery bag

    Carrying case

    HCDX-Y9 IP54 AC DC Electromagnetic Magnetic Particle Testing Yoke
