    AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HCDX-Y9
    Certification : ISO
    Payment Terms : T/T, Western Union/Paypal
    Supply Ability : 500PCS
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

    AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9

    AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9​

    The HCDX-Y9 is an AC/DC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC/DC magnetic field for the detection of surface indications during magnetic particle testing.

    Lightweight with an ergonomic grip and trigger, the HCDX-Y9 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y9 is easily serviceable not stop a job from getting done.

    A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

    Parameters index

    Model

    Items

    HCDX-Y9
    Electrical RequirementsAC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz
    WaveformAC
    Tangential Field Strength> 2kA/m at midpoint between legs / poles
    Working temperature-10~+40℃
    Duty Cycle50%, max on time is 90 seconds
    Ingress Protection (IEC 60259)IP54
    Relative humidity<80%
    SensitivityASTM E1444-05,ASME 2007 page number V
    DC power packBattery MT500
    AC working currentAC2.2A
    DC working currentDC 1.5A
    Battery charging time3h
    Battery working time6h
    Leg / Pole Span0~220mm
    Leg size22*22mm
    Power cord length3M
    Lifting ForceA C≥7.1kg (69N)
    D C≥22.2kg (216N)
    WeightYoke2.3kg
    DC Battery0.6kg

    Note: AC and DC Magnetic Particle Yoke Flaw Detector of Magnetic Particle Testing HCDX-Y9 can choose inbuilt led white light or inbuilt led UV light, and we also have ac yoke and other MT accessories, such as Gauss meter,UV lamp,test specimen, dead weight test block and so on.

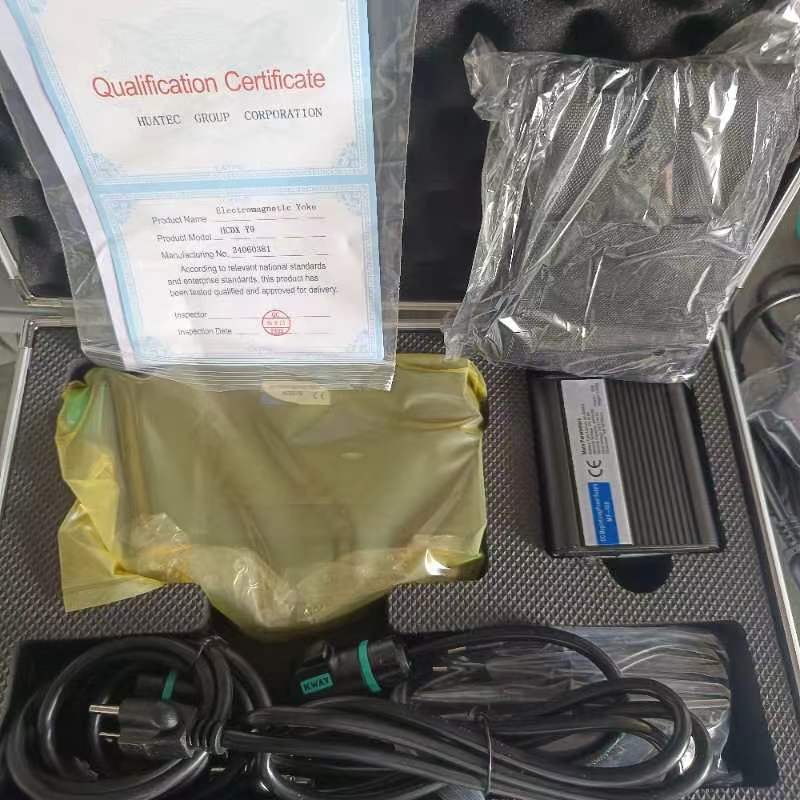

    Standard delilvery

    Yoke HCDX-Y9 1PC

    Power cord 1PC

    DC battery pack 1PC

    DC battery charger 1PC

    DC battery power cord 1PC

    DC battery bag 1PC

    Calibration certificate 1PC

    Warranty card 1PC

    Carrying case 1PC
    Operation manual 1PC
