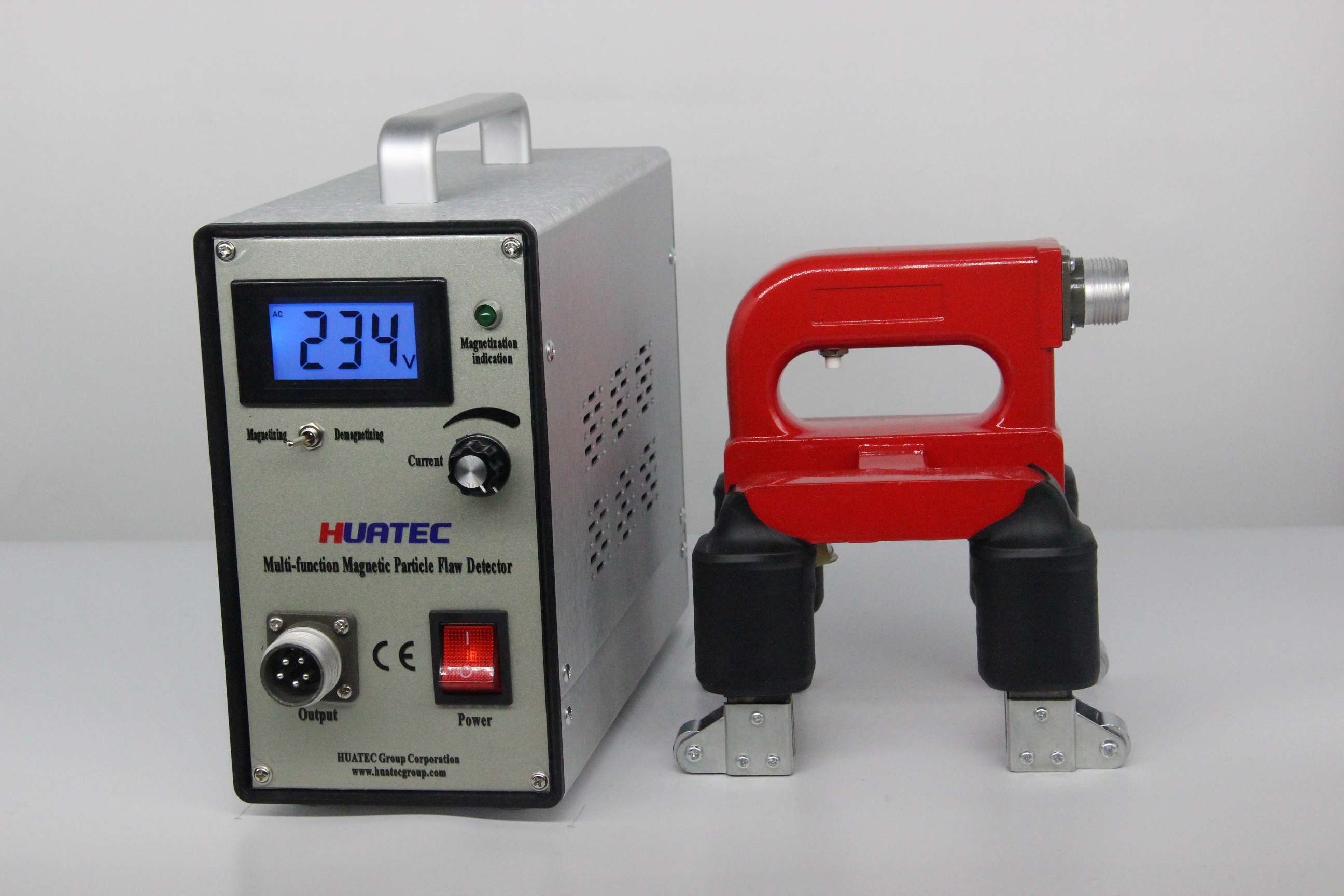

HCDX-IISC Portable Multifunction Magnetic Particle Flaw Detector
Current Adjustable Demagnetization Effect
Introduction:
HCDX-IISC composite magnetic powder flaw detector adopts silicon
controlled contactless switch, with low noise, strong magnetic
force, long service life and simple operation, suitable for field
and laboratory use. The instrument adopts combined configuration,
and users can choose probe freely according to their needs. Type A,
D, E, O probe can be configured according to user requirements.
HCDX-IISC series has function of demagnetization, and current
adjustable.
8-bit MCU is adopted as the controller by this magnetic particles
flaw detector (with the phase controlled circuit), and the
continuous regulation of magnetizing current can be realized
through the precise collection of the AC zero voltage crossing
signal and the signal of current regulation. Besides, it is
equipped with the function of demagnetization; the demagnetization
function can be switched on after choosing the demagnetization mode
and pressing the trigger button. In addition, the program of MCU
can enjoy lifetime free upgrades, and type A, D, E, O probe can be
configured according to user requirements.
Application:
Mainly used to detect surface and near surface cracks of
ferromagnetic workpiece.
Boiler pressure vessel, steel structure, forgings, castings,
welding parts, machined parts, etc.
The standard probes introduction for model HCDX-IISC:
Type D probe (electromagnetic yoke probe): equipped with movable
joints, can magnetize and detect the surface workpiece.
Type A probe (horseshoe probe): suitable for all kinds of fillet
weld, large workpiece inside and outside corners of local
magnetization inspection, equipped with working lights.
Type O probe (ring type coil): it is suitable for circumferential
crack detection of workpiece, and it is very sensitive to cracks
caused by fatigue of workpiece. In addition, it can demagnetize the
workpiece by far away method.
Type E probe (rotating magnetic field probe): conduct an all-round
flaw detection for all kinds of straight welds, girth welds, butt
welds and plane and curved surface with large geometric shapes. The
probe is equipped with roller, which facilitates the operation and
increases the speed. The probe is equipped with working lights for
easy observation.
Technical parameters:
Power supply: AC 220V ± 10% 50HZ 5A
Output: AC 38V 10A
Type A.D.E.O probes are optional and available
Inspection speed: ≥6 m/min
Temperature rise of probe: ≤60℃
Working beat: it is recommended to work for a long period of
continuous operation: magnetizing time ≤3 seconds, gap time ≥5
seconds
Weight: about 6.5Kg (main unit)
Controller size: 95x45x75mm (L*W*H)
Carrying case size: 170x140x70mm (L*W*H)
All optional probes parameters:
| D type probe | Lifting force: AC≥5Kg DC≥18Kg (no joints) Pole distance: 50-200mm (adjustable) Operating current: ≥8A Working voltage: AC=38V, DC=9V Weight: 2.5 Kg |
| Ａtype probe | Lifting force: AC≥ 4.5kg DC≥18Kg Pole distance: 20-160mm (adjustable) Working voltage: AC=38V, DC=9V Weight: 2.0 Kg |
| Ｏtype probe | Central magnetic intensity: 180Oe Working voltage: AC=38V Inside diameter: 150 mm Weight: 2.5 Kg |
| Ｅtype probe | Lifting force: ≥12Kg Distance: 110 mm Operating current: ≥7A Inspection speed: 6 m/min Working voltage: 38 v left, 2 Weight: 3.0 Kg |
Standard delivery:
Host HCDX-IISC 1
Type D yoke probe 1
Type A probe 1
Type E probe 1
Type O probe 1
The power line 1
The probe line 1
Standard specimen 1
Operation manual 1
Certificate 1
Optional accessories:
Type A probe
O the probe
E probe
D probe
Dead weight
Test specimen
UV light
