HUATEC FD-GT-1010 Digital Ultrasonic Flaw Detector

The 13th Engineering Construction System Vocational Skills Competition in 2017, the only officially designated instrument.

The first national military-civilian vocational skill competition in 2016, the only officially designated instrument.

The screen equipped is assumed by 1/2-T-R high resolution TFT screen (640×480), maintaining good working condition outdoors or in intense sunlight. Power is supplied by battery of 6-8 hours life in uninterrupted service.

It only weighs 1.5kg. It is applicable in mobile or aerial working field for petrifaction, pressure vessel, electricity power and railway transportation.

Features:

• Sophisticated circuitry with 640MHz sampling frequency enables the system to quickly reflect the signals of the flaws and interpret them accurately to detail no matter how weak and small they are, which ensures real-timeness and truthfulness of the echo signals.
• Advanced square wave drive renders the device extraordinarily penetratable with high signal-to-noise ratio when applied on high attenuating materials or thick works. Adjustable drive pulse width, drive voltage, and damping resistance are contributors to high resolution of the device when used on thin works or composites.
• PIR digital filtering technique for enhancement of signal-to-noise ratio. Probe frequency spectrum scoping gives you the overview of the engaged probe.
• Quality 5.7" trans-reflecting TFT screen (640×480),suitable for working outdoors or sunlighted.
• In accordance with EN12688-1:2000, long and continuous record and storage, up for TSG R0004-2009 standards.
• Auto velocity adjustment to the materials being worked on, and adaptation of the parameters like time delay, K value to different probes; DAC and AVG figures could be easily organized and drawn on.
• SD card port for mass storage; USB port for extended volume from U disk, and for extended control from keyboard or mouse, realizing communication, data transference and paperborne output with PC.
• Ergonomics-optimized structure and appearance with multi-angledly adjustable handle.Weighing 1.5kg, including built-in battery and charger for easy operation and carriage.

Specifications:

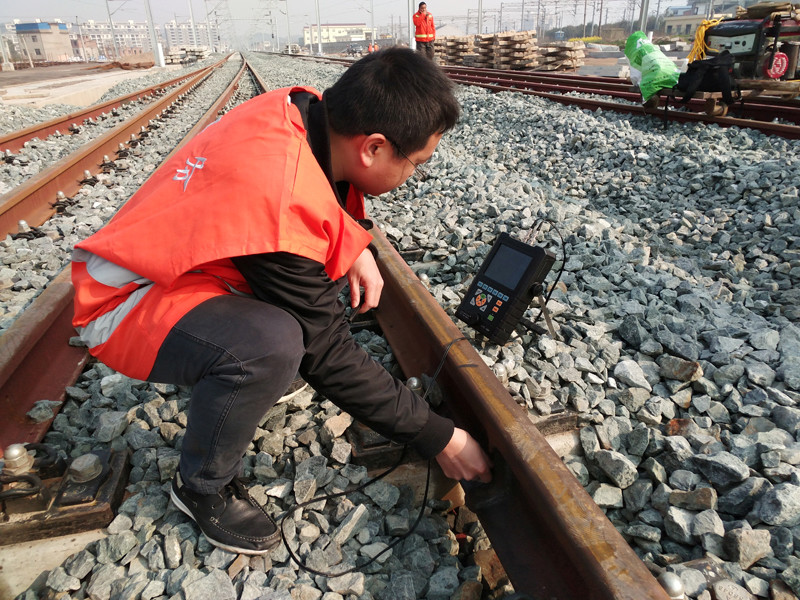

Rail Welding-seam Purposed Tandem Scanner

The rail welding-seam purposed tandem scanner--HSCQc1-H2 is designed to detect inclusions, bores, rarefaction inside central part of the welding seam of the rail cross-section.

Features

1. The scanner is equipped with two probe chuckings movable towards opposite direction.

2. Total soundpath remains in the steel piece of rail.

3. Put the scanner equipped with a pair of T-R probes to the central part of the rail piece, and tune the knob as the probe will move from the starting point of the ruler to the close-up, which will accomplish the detection process from the head to bottom of the cross-section of the welding seam. The depth of the flaw can be read from the ruler. The scanner is absorptive to magnetic matters.

4. With simple structure, light weight and high durability. Water-proofing bag is provided for convenient carry-on.

5. It can be matched up with any UT instrument with T-R connector pairs.

6. More portable as coupled with model HUATEC FD-GT-1010 and FD-GT-1020 and suitable for field work.
