    Movable Magnetic ParticlesFlaw Detector HCDX-3000

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HCDX-3000
    Certification : CE ISO
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 500 Set per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

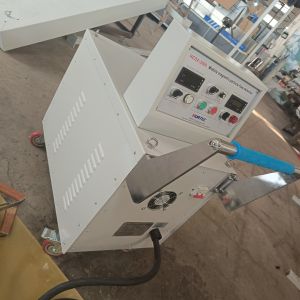

    Movable Magnetic ParticlesFlaw Detector HCDX-3000

    Movable Magnetic ParticlesFlaw Detector HCDX-3000


    Movable Magnetic ParticlesFlaw Detector HCDX-3000Movable Magnetic ParticlesFlaw Detector HCDX-3000Movable Magnetic ParticlesFlaw Detector HCDX-3000


    Movable Magnetic Particles Flaw Detector HCDX-3000 is applicable to detect workpieces by AC magnetization. It has the function of demagnetization, and do not need additional configuration of demagnetization set.

    8-bit MCUis adopted as the controller by this magnetic particles flaw detector, and the continuous regulation of magnetizing current can be realized through the precise collection of the AC zero voltage crossing signal and the signal of current regulation. It has the function of maximum current limit. With the function of phase controlled, the detector is suitable for both continuous technique and residual technique.


    The current value is displayed on the analog ammeter or digital ammeter. The prod sets and trigger button are for operating in the narrow space.

    The output current is reduced from the initial value to zeroautomatically when demagnetizing. Non-contact switch is adopted for the equipment.

    This detector can be connected to the prod sets (handheld electrode sets) or spiral cable (flexible coil). Also there are some coils or electrodes designed for this equipment to become a simple inspection machine tool as option.


    Characteristics:
    Movable host machine:
    Can be used as the power for circular magnetization
    Can be used as the power for longitudinal magnetization

    Simple inspection machine tool:
    Electrode of circular magnetization
    Coil of circular magnetization
    Manual adjustment of tail electrode
    Stainless steel sink
    Stainless steel tank (include spray pump and mixing pump)
    Spray gun
    Magnetic ink can be reused
    Black magnetic particles, red magnetic particles, fluorescent magnetic particles are supported
    UV light as option for fluorescent magnetic particles testing


    Configuration table:

    Type

    Configuration

    HCDX-3000
    AC magnetization
    AC current0-3000A
    Half-wave rectified magnetization
    AC demagnetization
    DC demagnetization
    Power input380V/50Hz

    Notes: “●”marked as standard, while “○”marked as option.


    Main functions:

    *Flaw detection method: strut method, winding method, coil method

    *Magnetization method: AC magnetization, DC magnetization (HWDC/FWDV)

    *Demagnetization method: AC demagnetization adopts remote demagnetization (attenuation method), and AC demagnetization adopts ultra-low frequency demagnetization

    Magnetization: use the two ends of the support rod to top the steel plate flaw detection area, and the support rod spacing is 0~500mm (adjust the spacing according to experience)


    Or clamp both ends of the steel plate with wire clamps


    Demagnetization: Wrap the whole part with a cable, with a pitch of about 20~30cm. Connect both ends of the cable with the flaw detector. The connection method is the same as that of magnetizing.
