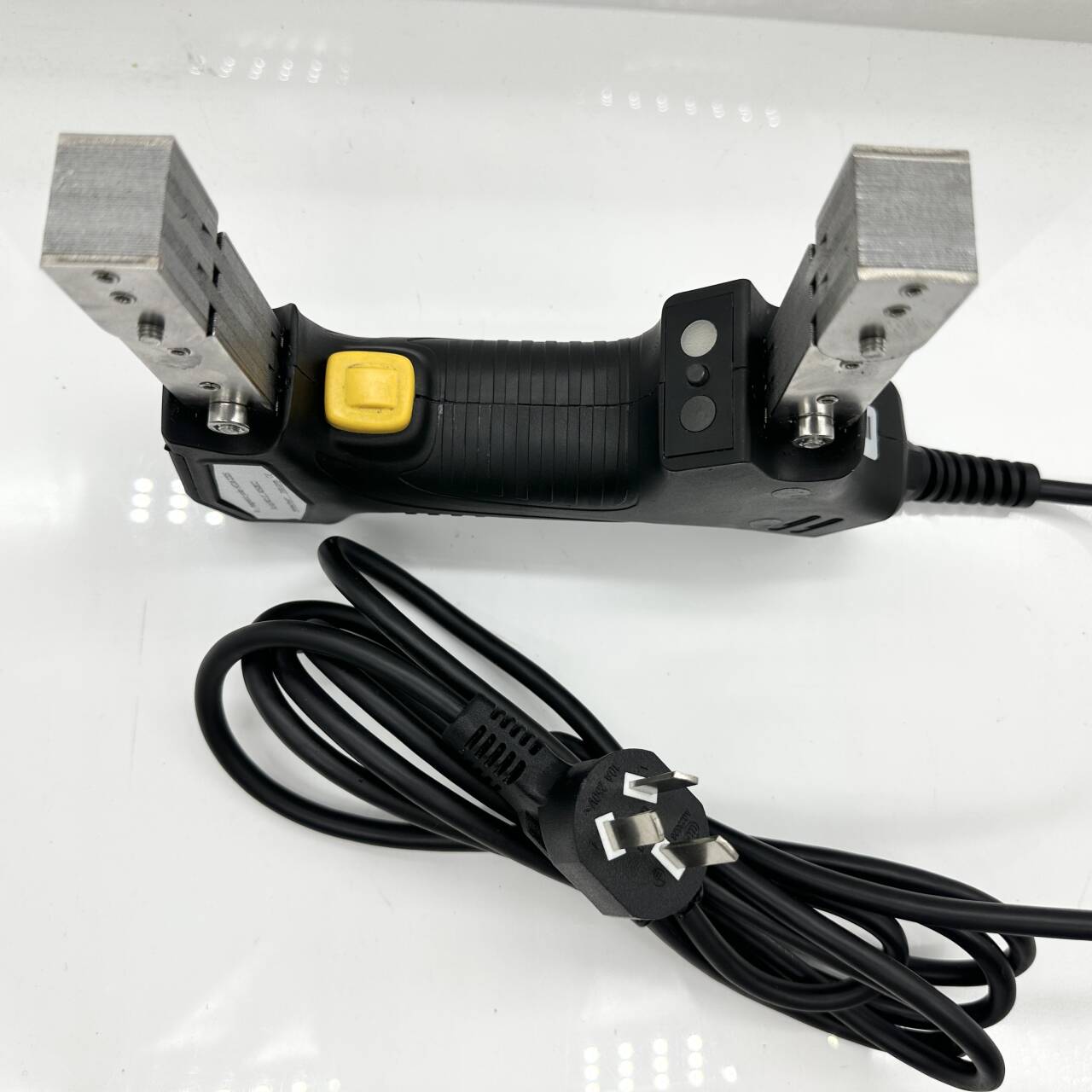

    Handy AC Yoke With UV Lamp And White Lamp

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HCDX-220S
    Certification : ISO,CE
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 1000 sets per month
    Delivery Time : 3~7 working days
    • Product Details
    • Company Profile

    Handy AC Yoke With UV Lamp And White Lamp

    Handy AC Yoke With UV Lamp And White Lamp


    Application
    •Surface and subsurface testing for f ield testing
    •Surface and subsurface for s pot inspections
    •Surface and subsurface for i n service inspections
    •Surface and subsurface for d emanding environments
    •Surface and subsurface for w eld inspection


    Functional characteristics

    1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;
    2. The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and
    ordinary magnetic particle detection can be performed;
    3, High sensitivity, strong lifting force, high flaw detection efficiency.
    4. Duty time: 5 minutes on,1 minute off
    5. Sealed, durable construction

    AC working modethe probe can be directly connected to the AC220V
    Duty time5 minutes on,1 minute off

    Standards conform
    •ASME BPVC
    •ASTM E709
    •ASTM E1444
    •ASTM E3024
    •ISO 9934 3


    Technical parameter
    1. Sensitivity: A1 type standard test film 15/100 grooves display clearly,better than the national standard;
    2. Lifting force: AC ≥68.6N (7kg);
    3. Probe pole distance: 60mm
    205mm (spacing range is adjustable);
    4. Probe light source: white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c ㎡
    5. Probe volume: 200mm*48mm*158mm;
    6. Probe weight: 2.0kg


    Configuration list
    1. D type yoke 1 set (including 3 meters probe line)
    2. 1 set of auxiliary tools
    3. User manual, warranty card, certificate of 1
    4. Instrument box
