Tin Plating On Copper Galvanized Layer Multifunction Coating Thickness Gauge

Ask Lasest Price
Brand Name :	HUATEC
Model Number :	TG-6105
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

Tin Plating On Copper Galvanized Layer Multifunction Coating Thickness Gauge

Tin plating on copper galvanized layer multifunction coating thickness gauge

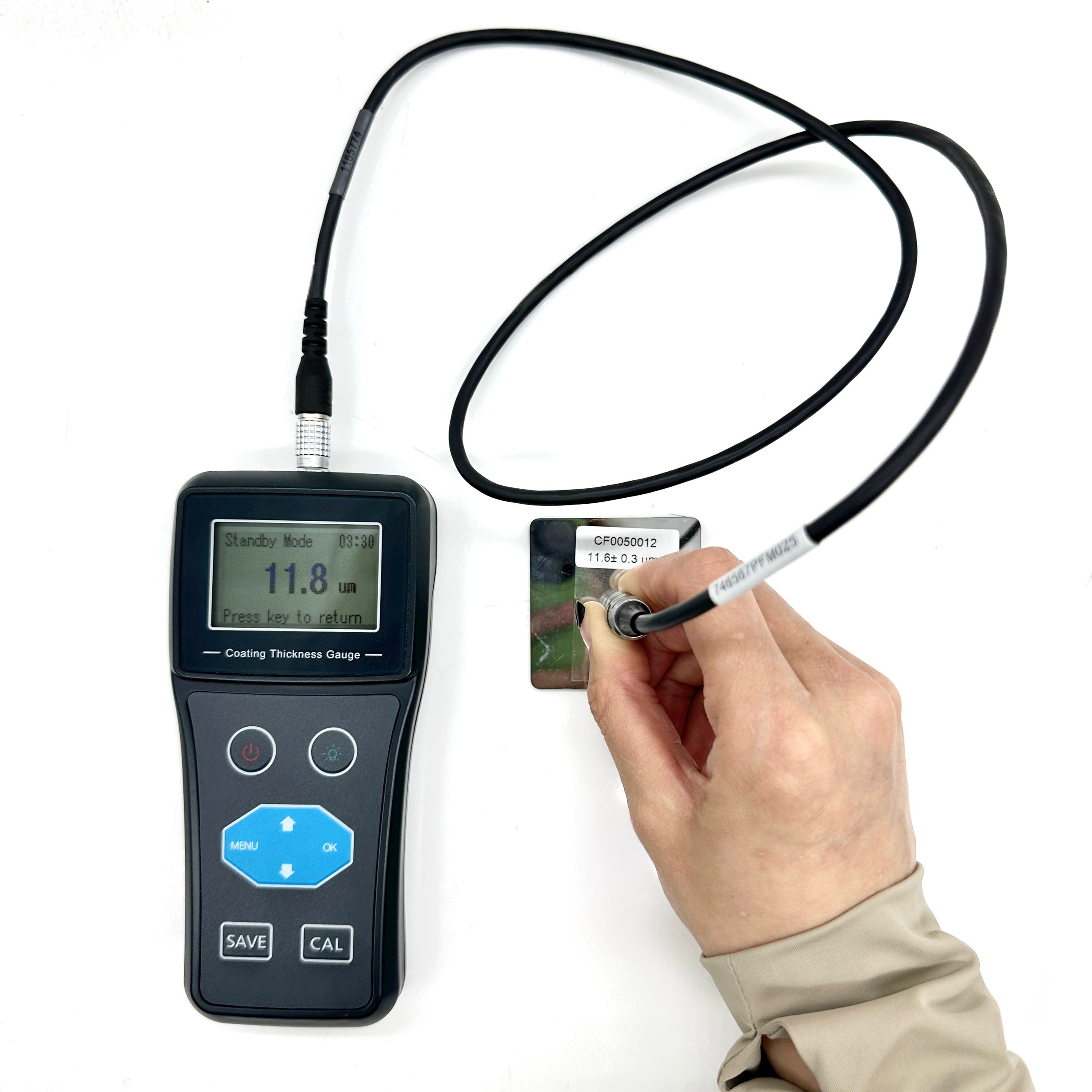

TG-6105 is a magnetic and eddy current portable coating thickness gauge, It can quickly, without damage, the precision to measure magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) on the magnetic coating thickness (such as zinc, aluminum, chromium, copper, rubber, paint, etc.)

Technical Parameters:

Display accuracy	0.1 um(0 ~ 99.9 um),1um(100 ~ 10000 um),0.1g/㎡(model TG-6105P)
Calibration Mode	Zero, One-Point, Two-Point and Basic Calibration
Measuring mode	Single point, scan mode, weight mode,differential mode, Mean value model,alarm mode
Display	English / Chinese selectable, FSTN LCD Display with backlight
Screen display	Thickness measurement value, unit weight measurement value, density set value, date, time, coupling state, Bluetooth state (optional), power indicator, measurement mode, probe type, real-time temperature compensation state, data storage state, storage file state, etc
Data memory	500 measurements, including time, probe type, etc.
Communication	Bluetooth (optional) & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable
Data printing	Optional portable Bluetooth thermal printers
Power supply	3 * AAA alkaline batteries for 100 hours usage (close backlight)
Power off	Timeout power off, and low battery power off
Temperature	Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C
Size and weight	150mm70mm30mm / about 160g(no battery)
Material	ABS and PC alloy(IP67)

and nonmagnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) on the conductive layer thickness (such as rubber, paint, plastic, anodic oxidation film, etc.),
