Brand Name : | HUATEC |
Model Number : | HGM-BZ206085 |
Certification : | CE |
Price : | USD575-USD715/SET |
Payment Terms : | T/T, Western Union,Paypal |
Supply Ability : | 10 Sets/Month |
Delivery Time : | 3-5 working days after receipt of your payment |

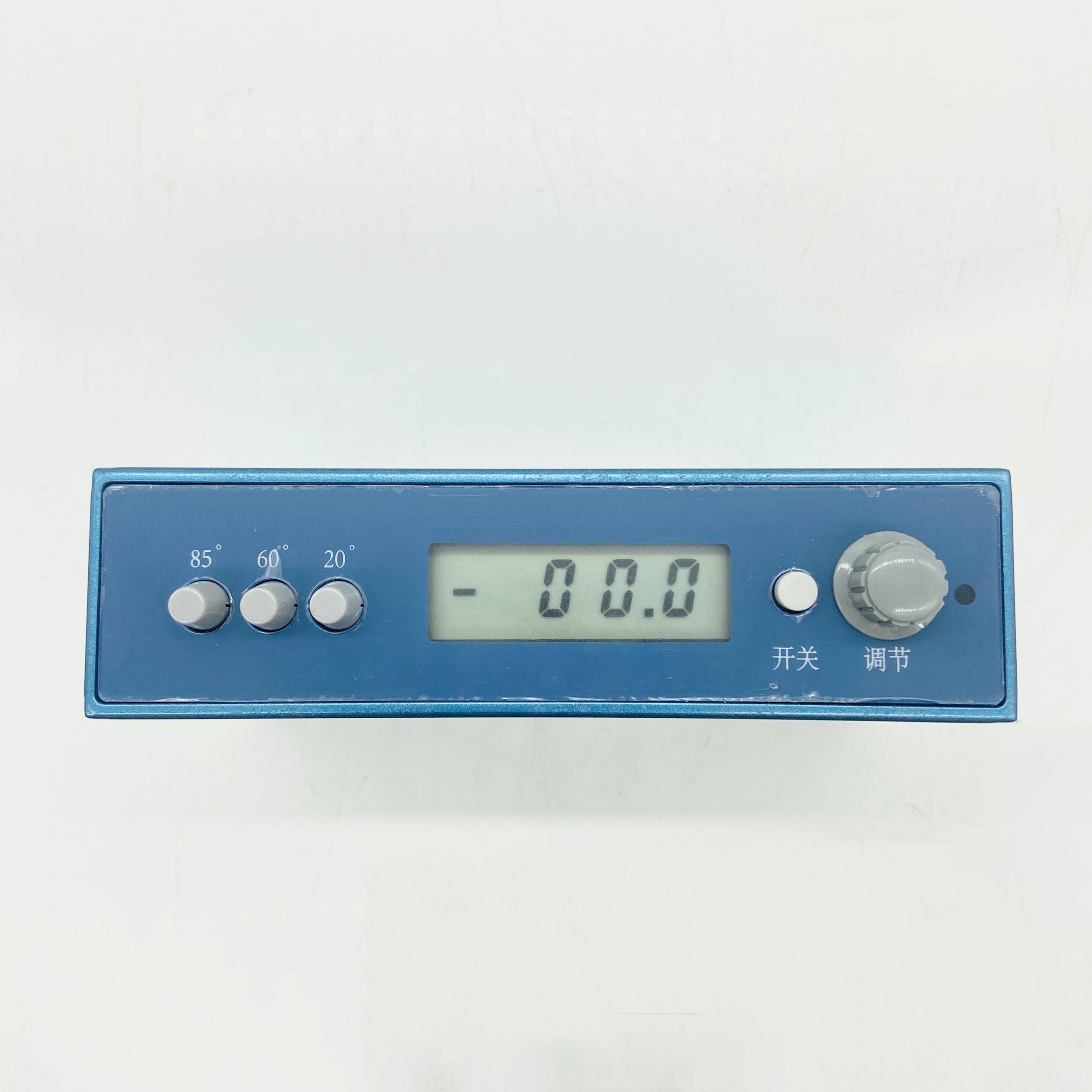

HGM-BZ206085 Intelligent Three Angle 0.4Gs/30min Non-metallic Coatings Gloss Meter
Standard
International standard ISO2813, ASTM-D2457, DIN67530 and China standard GB9754, GB9966, GB8807.
The technical parameters follows China metrology standard JJG696-2002.
Parameter
The technical parameters up to JJG 696 (First-level standard). |
1, test swpe:0.0-300.0(Gs) |
2, test accuracy:<1.2(Gs) |
3, stability:0.4Gs/30min |
4, test caliber:16×48(mm) rectangular |
5, size:138×36×82 (mm) |
6, power:4.8V (Rechargeable battery inside) |
Application
1.Measurement of the gloss of all kinds of non-metallic coatings.
2.Measurement of the surface gloss of the non-metallic decorative
material.
Monolithic integrated circuit control circuit, new pressed key
operation, dexterous portable, only needs a calibration, the
intelligent record calibration value, cuts the angle not to need
directly to calibrate.
Features
1. Small and light, real easy to be carried and used.
2. 4.8V rechargeable Battery can be used for almost 60 hours and
10000 reading.
3. High stability
4. Long-term stable light source needs no replacing forever.
5. Quartz crystal standard board, no excursion.
6. Single-chip microcomputer control circuit, the new keystrokes, light and portable, a single calibration, intelligent calibration record values
Standard Delivery
Gloss meter | 1pc |
Instrument case | 1pc |
Standard board | 2pc A black board is used for the highlight calibration A white board is used for the low light calibration |
Battery charger | 1pc |
English instruction manual | 1pc |
Calibration certificate | 1pc |
![]() |
