Brand Name : | Huatec |
Model Number : | HDL-380 |
Certification : | ISO,CE |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 100 sets per month |
Delivery Time : | 5~8 working days |

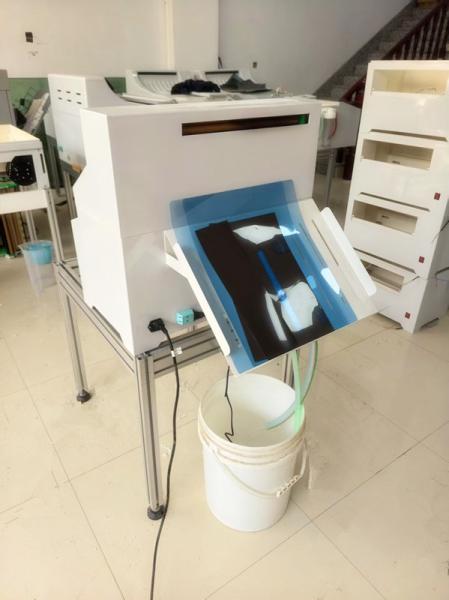

X-Ray Film Dryer With 8 Air Flow Channels
Technical parameters and specifications
● Drying process: → → Water washing → → Drying → →
● Film release method: front/back film release
● Film development speed: 40-240s adjustable
● Sheet feeding width: 360mm
● Moving speed: 950mm/min (running time: 40 seconds)
● Dry tablet quantity: 80X360mm (4 "X14") film 600 sheets per hour (dry film speed 40s)
● Power supply: 200-240V. 50/60Hz 5A
● Water consumption: 2 l/min during film operation
● Volume: 560mmX480mx545 (length x width x height)
● Add the function of chip induction
● 8 air flow channels, Improved air duct, higher drying efficiency
● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years
● Shell: engineering PVC plastic
● Heating element: PTC heating element
● Temperature control mode: constant temperature control with solid-state relay
● Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
![]() |
