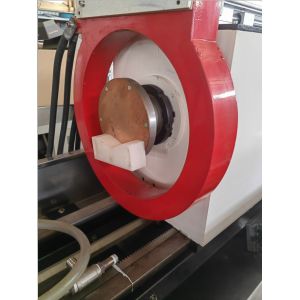

Fluorescent magnetic particle flaw detection machine HMP-6000A
Working principle
Magnetic particle flaw detection uses the interaction between
magnetic leakage field and magnetic powder at the defect of the
workpiece, which takes advantage of the difference between the
surface and near-surface defects of steel products (such as cracks,
slag inclusion, hair lines, etc.) permeability and magnetic
permeability of steel. After magnetization, the magnetic field at
the discontinuity of these materials will be distorted, forming
part of the magnetic flux leakage and generating a magnetic leakage
field. Thus attracting magnetic powder to form magnetic powder
accumulation at the defect - magnetic marks, under the appropriate
lighting conditions, showing the location and shape of the defect
Application
Fluorescent magnetic particle flaw detection machine is used to
detect the surface and near surface of ferromagnetic workpieces
(such as bolts, pins, bushings, gears, gear rings, crankshaft,
etc.) due to forging, quenching, grinding, fatigue caused by cracks
and slag inclusion and other minor defects.
Technical parameter
Detection range: diameter (φ400mm), length 1000mm
Detection method: fluorescent or non-fluorescent magnetic particle
detection
Magnetization mode: circumferential, longitudinal, composite
magnetization
Electrode spacing: 0~1000mm (adjustable)
Clamping mode: pneumatic clamping
Magnetizing current: 0~6000A
Demagnetization effect: 5 А/cm
Detection sensitivity: A1 standard test film (15/50) clearly
displayed
Power supply: three-phase 5-wire AC 380V 50Hz
| Testing parameters |
| Current Name | AC |
| Circumferential magnetizing current(A) | 5500 |
| Longitudinal magnetization method | Electromagnetic yoke, coil located inside the electrode box |
| Longitudinal magnetization current (A) | ≮50 |
| Max.coil diameter(mm) | 500 |
| Max.pole distance(mm) | 1000 |
| Control | Manual |
| Operation interface(*) | Touch screen |
| Clamp(*) | pneumatic |
| Movable electrode head | 2PCS |
| Rotating mode | Electric |
| Ac magnetization method | Circumferential magnetization, longitudinal magnetization,
composite magnetization |
| AC demagnetization method | Automatic attenuation demagnetization |
| Spray time | manual |
| Magnetization time | each time |
| Rotational observation time | circle |
| Demagnetization time | each time |
| catch box | Volume 40L; Equipped with roller, mixing function, |
| stainless steel filter, dual use for oil and water |
| White light illuminance | ≮1000 lx |
| Current measurement error | ≤±10% |
| Air source | 0,08-0,1МРа |
| Power | Three-phase five-wire,380V±10%,50Hz |
| Overall dimension(mm) | Length:2500 |
| Width: 800mm(dark room is not needed) |
Executive standard
Magnetic particle flaw detection machine: GB/ T8290-2011
Observation conditions for magnetic particle inspection: GB/T
5097-2020/ ISO 3059:2012
American Society for Materials and Testing: Magnetic Particle Test
Method ASTM E1444-01
European Union, international standard: DIN EN ISO 9934-2-2003
Standard configuration
1 main machine of fluorescent magnetic particle flaw detection
machine
Magnetic suspension spray recovery system 1 set
One Gauss meter
1 magnetic suspension concentration measuring tube
