    SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : SRT-5100
    Certification : CE
    Price : USD450/set - USD507/set
    Payment Terms : T/T,Paypal
    Supply Ability : 10sets/Month
    Delivery Time : 10-15 working days after receipt of your payment
    • Product Details
    • Company Profile

    SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge

    SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge


    Detailed Product Description

    * This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces.

    * It meets the standards of ASTM D 4417-B, IMO MSC.215(82), SANS 5772, US Navy NSI 009-32, US Navy PPI 63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.

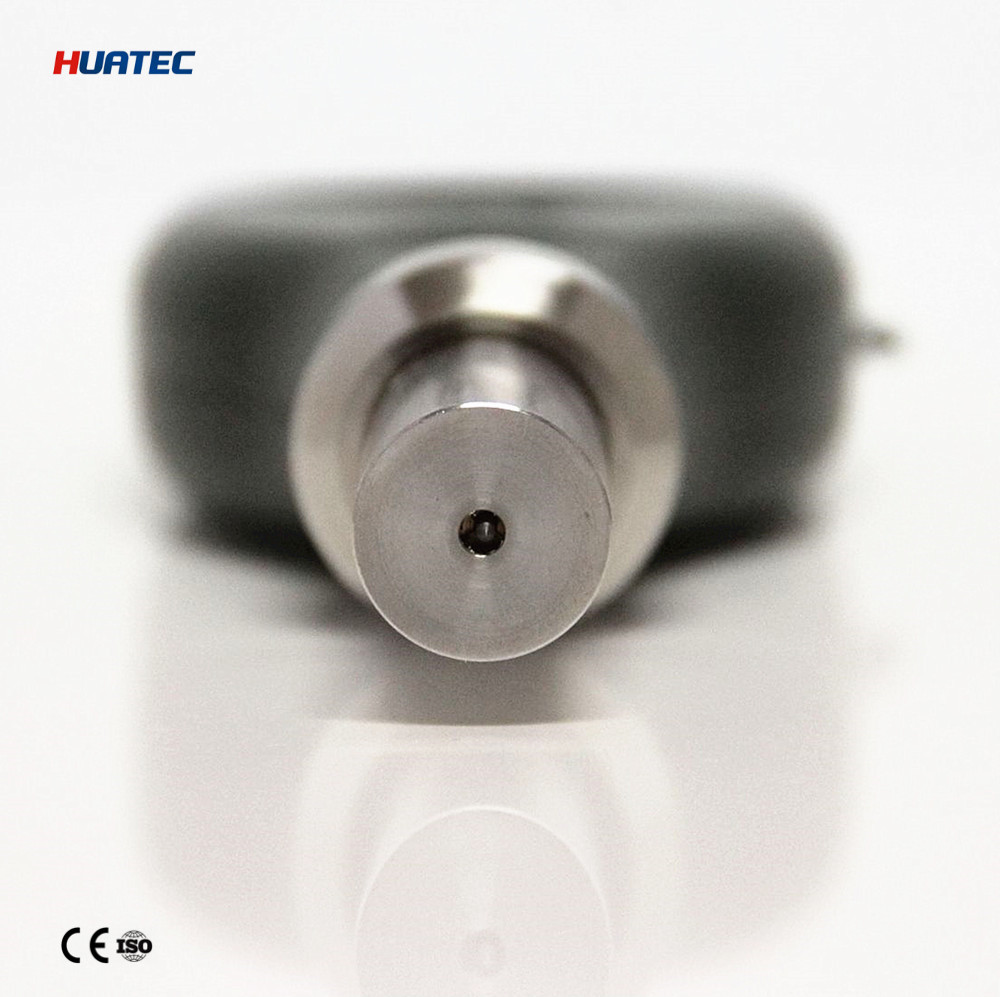

    * The tungsten carbide tip will last for up to 20, 000 readings and can then be easily replaced by the user in the field.

    * Cost per test is significantly lower than other test methods.

    * Used the exclusive Micro -computer LSI circuit and crystal time base to offer high accuracy measurement.

    * Can communicate with PC for recording, printing and analyzing by the optional software and cable for RS232 interface. USB adaptor and Bluetooth interface can also be used.

    * Automatic power off to conserve power.

    * Widely used in field of blast cleaned surface measurement. If the profile is too large the amount of coating required to ensure adequate coverage increases, otherwise there is a danger that the peaks remain uncoated - allowing rust spots to occur. If the profile is too small, there maybe an insufficient key to produce adequate adhesion, leading to premature coating failure . Ensuring the correct surface preparation optimises the performance of the coating and material usage.


    SPECIFICATIONS:

    echnical parameters:

    ItemDescription
    SRT-5100
    Measuring Range0 -800μm
    Resolution1 μm (0.1 mils)
    Gauge face diameter50mm
    Accuracy±5% or ±5 μm
    Power4x1.5v (AAA) battery
    InterfaceRS232/USB, bluetooth

    Standard Accessories :

    Main unit……………...1pc.

    Carrying case…………1 pc.

    Operation manual…….1 pc.

    Optional accessories:

    RS232C cable, USB adaptor, Bluetooth interface
