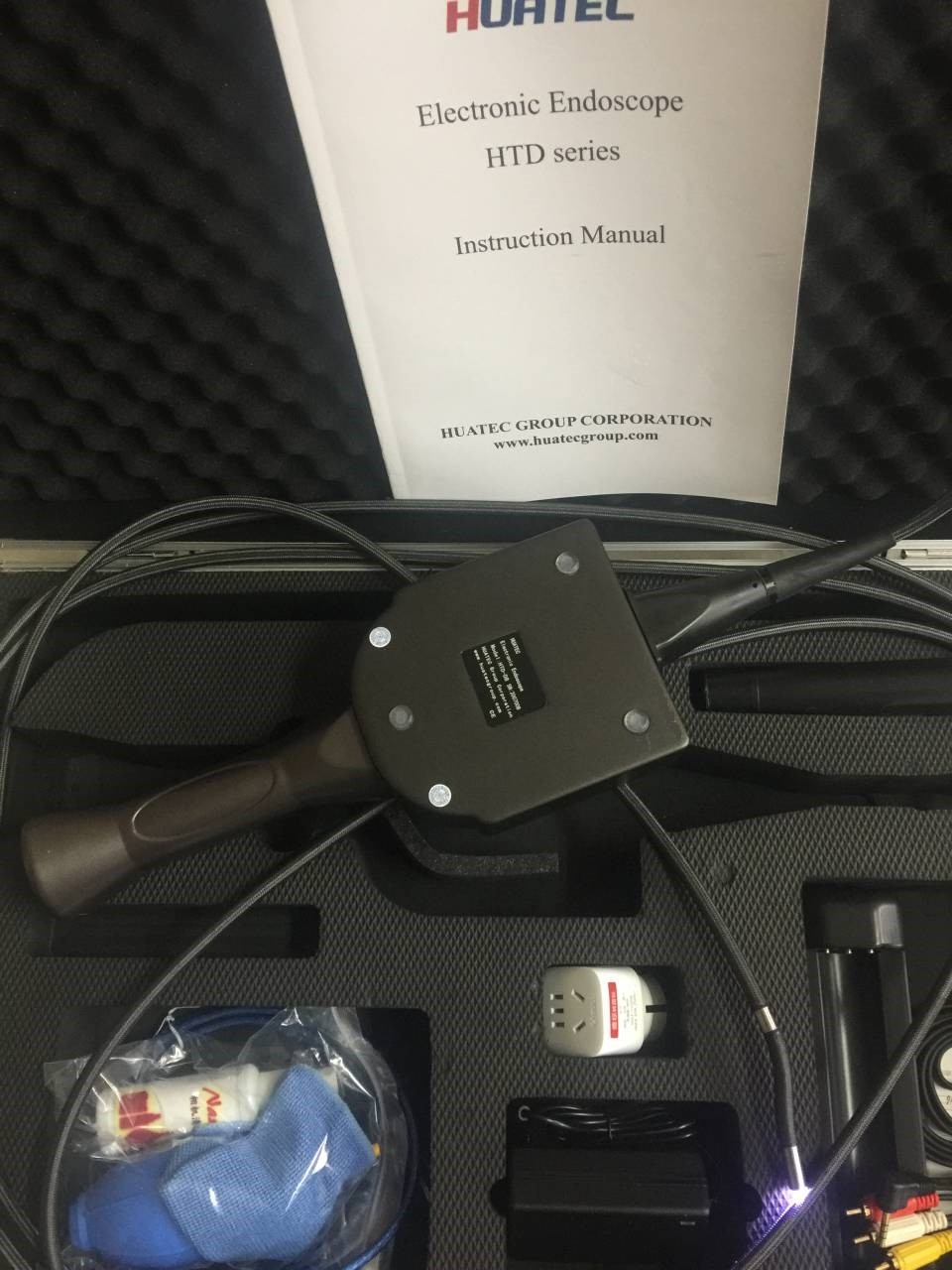

HTD-D Series 4 Directions Industrial Electronic Endoscope
HTD-D series industrial endoscopes use electric keys to control the
rotation of the speculum head in four directions, which is precise,
flexible and labor-saving, and can realize the positioning of any
point of the speculum head, so that your vision can follow your
heart. The machine adopts an integrated design, easy to operate;
all functions can be completed by one hand. High definition, sharp
color, image without distortion, wide use environment, and can be
taken pictures, videos and other ways to save the site of the
original data, to provide a strong guarantee for inspection and
maintenance. Widely used in automobile engine carbon testing, steel
pipe, casting, container internal defect testing, aerospace, power,
and industrial, police, civil and other fields.
| Technical parameter: |
| Name | HTD-D series Industrial electronic endoscope |
| optical system | direction of observation | Direct vision |
| Focal length | fixed |
| Field angle | ≥70° |
| Depth of field | 10mm-∞/20-150 |
| Probe specification | Probe diameter | Φ6mm/Φ8mm/Φ10mm/Φ12mm |
| Probe bending angle | ≥120° |
| Probe bending direction | 4 way |
| Working length | 1.5m (customizable) |
| Camera control | electric,key control |
| image capture and display | Screen brightness | 250cd/㎡ |
| Image acquisition resolution | >720*625 |
| pixel | 450000 |
| display | 5” TFT true color |
| System specification | Light source | High light LED |
| Storage medium | 8G SD card |
| Storage | JEPG,MPEG4 |
| power | Built in rechargeable battery |
| Output interface | USB2.0, AV OUT . |
| language | English |
| In-depth tube | material | Stainless steel |
| Operating mode | handheld portable control |
Product features:
1. Integrated handheld design, weighing about 0.88kg, easy to
carry.
2. User-friendly design, simple and clear operating system.
3. The voyeuristic head is controlled in four directions by
electric buttons, and any point can be positioned, and the
micro-movement can be adjusted precisely, allowing you to observe
as you wish.
4. Multi-layer stainless steel/tungsten wire mesh is adopted in the
deep tube, which is more anti-corrosion and wear-resistant.
5. Adopt 5-inch hd display screen.
6. High brightness LED lighting, multi-level adjustable brightness.
7. Multi-functional image processing system, which integrates photo
taking, video recording, browsing and return visit, and can be
connected with the computer via USB.
8. 8GB memory, super-large capacity lithium battery, sustainable
3-4h, ultra-low power consumption.
9. Can be customized, upgraded infrared, wireless peeping head
control.
