    Directional Ceramic Tube 250K Portable X Ray Flaw Detector For Welding

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : XXG2505
    Certification : ISO
    Payment Terms : T/T, Western Union,
    Supply Ability : 500PCS
    Delivery Time : 5-8 working days
    • Product Details
    • Company Profile

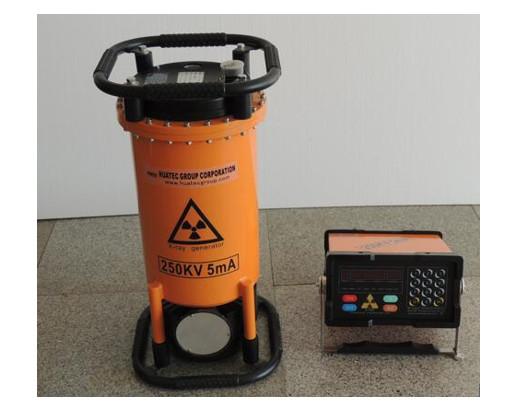

    Directional Ceramic Tube 250K Portable X Ray Flaw Detector For Welding

    Portable X-ray Flaw Detector with Directional Ceramic Tube 250K X-ray Detector for Welding

    Normal generator size is 320x320x630mm, weight 29kgs.

    Adopting micro-computer control and modular structure, with strong anti-interference ability and high automaticity and reliable performance.

    Parameter setting, working process and trouble indication will be indicated on the LED screen.

    Main technical parameters

    TYPE

    ITEM

    XXG2505
    Max Penetration thickness Steel (A3) 40mm 5minutes
    Focal Distance 600mm
    Exposure Time 5min
    Film Type Agfa D7
    Double lead foil Intensifying screen 0.03
    Darkroom Disposal 20±2
    Development 5minutes
    Blackness 1.5
    Input Voltage (V) 220V±10% 50-60Hz
    Capacity (KVA) 2.0
    Output Tube voltage (KVP) 100-250
    Tube current (mA) 5
    Stability ±1%

    X-RAY

    Tube

    Focus mm2 2.0×2.0
    Radiation Angle 40±5°
    Sensitivity k≤1.8%
    Operation Mode Intermittent operation, Radiating time to cooling time is 1:1

    X-Ray

    Controller

    Dimension 270×270×140
    Weight 9kg
    Circuit Structure Micro-computer control ,Modular structure,Voice prompt

    X-RAY

    Generator

    Cooling Force air cooling
    Insulation SF6 Gas Insulation
    Working Pressure 0.35Mpa-0.45Mpa
    Dimension 3232630mm
    Weight (kg) 29kg
    Working Temperature -10℃-+40

    Standard Delivery

    Directional ceramic X-ray tube 1 Pcs
    Generator 1 Set
    High voltage joins cable 1 Pcs 25 Meters
    Controller 1 Set
    Power cable 1 Pcs 10 Meters
    Grounding cable 1 Pcs 5 Meters
    Accessories 1 Set
    (Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)

    Optional accessories:

    Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
