Brand Name : | HUATEC |
Model Number : | SRT5060 |
Certification : | CE |
Payment Terms : | T/T,Western Union,Paypal |
Supply Ability : | 50 Sets per Month |
Delivery Time : | 3-5 working days after payment |

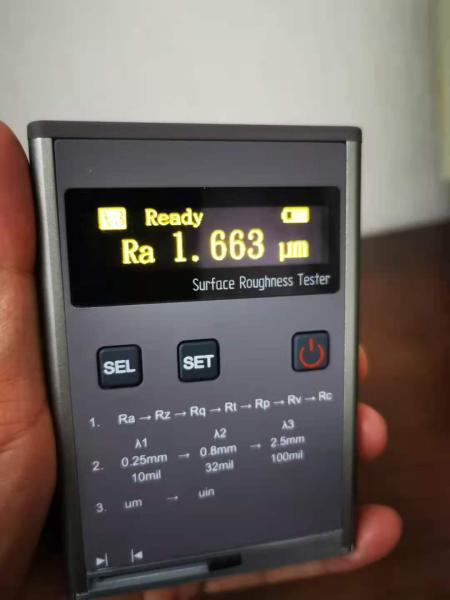

7 parameters High Precision Handheld OLED display Surface Roughness Tester
Features
>l >7 parameters Ra, Rz , Rq, Rt, Rp, Rv, Rc
>l >High precision inductive sensor
>l >GAUSS filter
>l >Comply with ISO4287
>l >256X64 OLED display
>l >Built in lithium ion battery and charging control circuit, high capacity, no memory effect
>l >Continuous working time more than 15 hours
>l >Aluminum mold design makes durable and better anti-electromagnetic interference ability
Specification
Parameters | Ra, Rz, Rq, Rt, Rp, Rv, Rc | |
Range | ±80um | |
Display Accuracy | ±10% | |
Indication variability | ≤6% | |
Resolution | 0.01um | |
Probe features | Type | Inductive |
Stylus radius/angle | 5um | |
Stylus material | Diamond | |
Measuring force | 4mN(0.4gf) | |
Measuring unit | Um/uin | |
Sensor angle | 90 degree | |
Longitudinal radius of guide head | 45mm | |
Max. driving length | 6mm | |
Traverse speed | λ1: cut off =0.25mm, Vt=0.135mm/s λ2:cut off =0.8mm, Vt=0.5mm/s λ3: cut off =2.5mm, Vt=1mm/s | |
Power | Built-in Rechargeable battery |
Standard Delivery
>l >Main unit
>l >Calibration block
>l >AD/DC adapter and data line
>l >Testing support board
>l >Carrying case
>l >English instruction manual
>l >Calibration certificate
>l >Warranty card
>l >Packing list
![]() |
