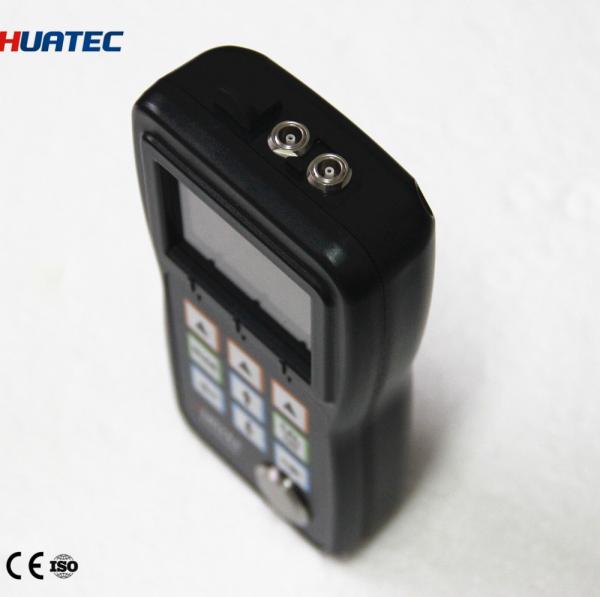

    2.4 Color Display Have Echo Pattern Coating Ultrasonic Thickness Gauge

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG-4500
    Certification : ISO, CE, GOST
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 500Pcs
    Delivery Time : 1-4working days
    • Product Details
    • Company Profile

    2.4 Color Display Have Echo Pattern Coating Ultrasonic Thickness Gauge

    Color display Have an echo pattern Coating, ultrasonic thickness measuring instrument TG-4500 series


    Features:

    Color 320x240 Pixels Display

    A-Scan Snapshot

    Echo-Echo Mode(Thru Paint & Coatings)

    Stores 100,000 Readings

    Gain: Low, Medium or High for varying test conditions

    Specifications:


    FeatureTG-4500TG-4500DTG-4500DLData Logger Option
    Color Display
    A-Scan Snapshot
    Gain: Low, Medium, High
    Min/Max Capture
    DIFF/RR%
    Thru-paint×
    Data Logger××
    Data View Software××

    Instrument Specifications:


    Display Type2.4" color OLED, 320X240 pixels, contrast 10,000:1
    Operating PrinciplePulse echo with dual element transducers
    Measuring Rang0.60mmto 508mm(0.025" to 20.00"), depending on material, probe and surface condition
    Through Coating FunctionFor TG-4500D and TG-4500DL Coating thickness:0-2mm; Measuring range:3-25mm
    MeasuringResolutionSelectable 0.01mm, 0.1mm(selectable 0.001", 0.01
    UnitsInch or Millimeter
    GainLow, Medium or High for varying test conditions
    Display ModeNormal, Minimum / Maximum capture, DIFF/RR%
    V-Path CorrectionAutomatic
    Update RateSelectable 4Hz, 8Hz,16Hz
    MaterialVelocity Range500 to 9999m/s (0.0197 to 0.3937in/us)
    LanguagesSelectable Chinese, English, Japanese
    Alarm SettingMinimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm
    Power Requirements2 AA size batter
    Operating TimeApproximately 40 hours
    Instrument Shut-offSelectable ALWAYS ON or AUTO OFFafter 5, 10, 20 minutes of inactivity
    Operating Temperature-10°Cto +50°C (+10°F to +120°F)
    Size153mmX 76mm X 37mm(H X W X D)
    WeightData View PC software

    Data Logger Option Features Capacity :

    400 files, 100,000 readings

    File Structure Grid file

    Rows X Columns 21 X 12

    CommunicationPort USB 2.0 (Full Speed ) port

    Software Data View PC software

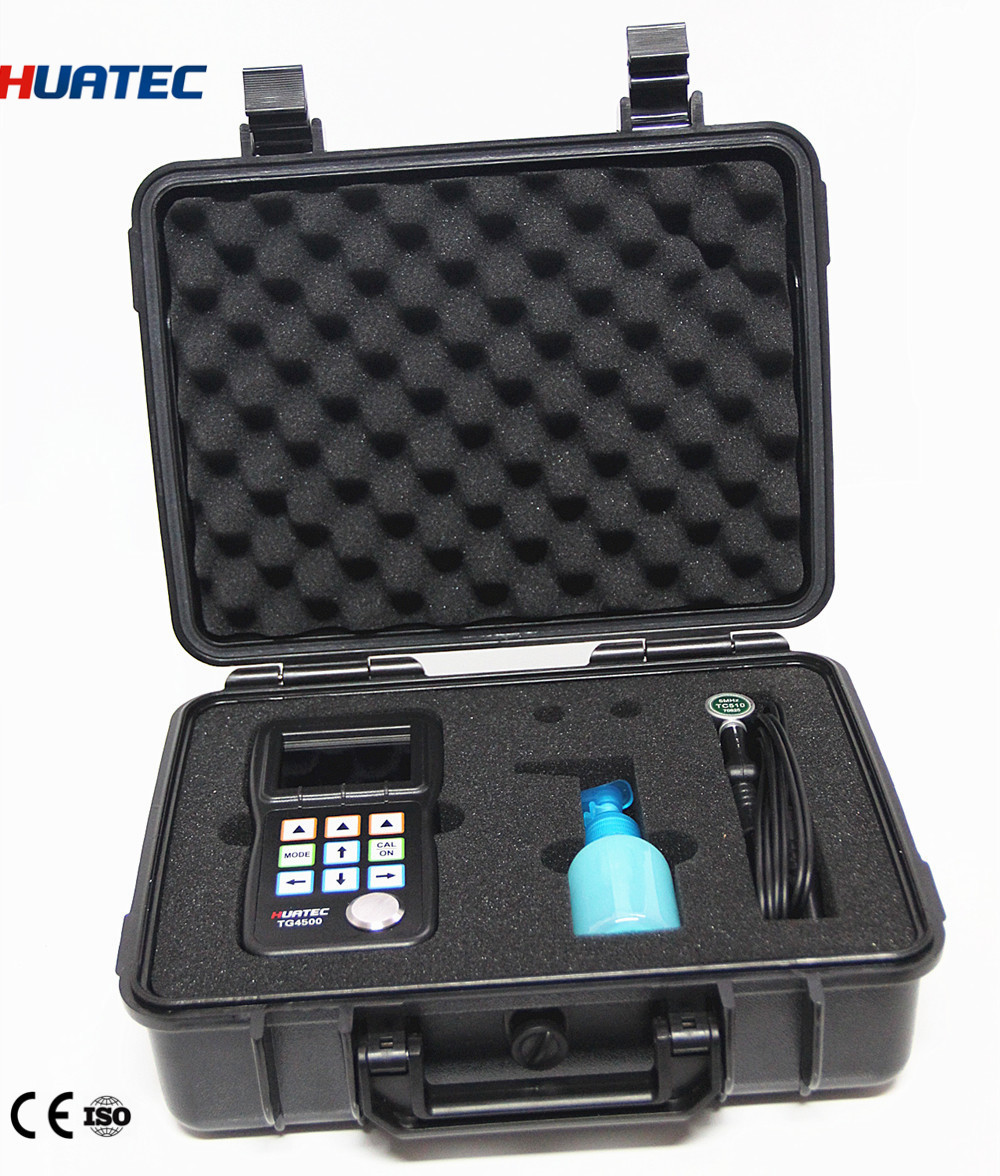

    Standard Configurations :

    Thickness Gauge 1

    Probe 1

    Alkaline Battery 2

    Couplant 1

    Carrying Case 1

    Operation Manual 1

    USB Cable 1(Only TG-4500DL)

    Software CD 1(Only TG-4500DL)


    Optional Configurations :

    High-temperature Probe Cast Iron Probe

    Small Probe Mini Probe Probe Cable

    Stepped Calibration Block

    Rubber Sheath Storage Option(Only TG-4500DL


    2.4 Color Display Have Echo Pattern Coating Ultrasonic Thickness Gauge2.4 Color Display Have Echo Pattern Coating Ultrasonic Thickness Gauge
