    Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : HCDX-220AC/HCDX-220DC
    Certification : ISO,CE
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 500 set per month
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

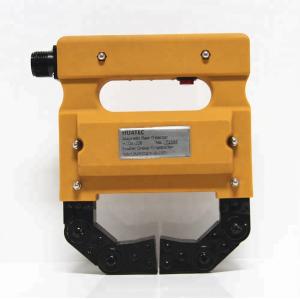

    Portable Handy Yoke Flaw Detector Magnetic Particle Testing Equipment


    Portable handheld equipment for magnetic particle inspection

    HCDX-220AC/HCDX-220DC Handy yoke flaw detector


    Product overview

    Portable handheld equipment for magnetic particle inspection


    Magnetic particle flaw detector has the characteristics of compact structure, reasonable layout, compact size, light weight, easy to carry and so on. It is suitable for magnetic particle inspection of surface and near surface defects of all kinds of iron and steel structural parts, boilers, pressure vessels, pressure pipelines and various types of welded ferromagnetic materials in electric power, metallurgy, petrochemical, machinery and other industries. The flaw detector can be directly connected to AC power, or alternatively equipped with AC magnetized power supply and DC magnetized power supply, efficient and light. It is especially suitable for welding seam inspection of ship hull, welding seam inspection of steel structure in high altitude and internal operation of pressure vessel.


    The instrument meets the requirements of JB/T7411-2012 "Technical Conditions of Electromagnetic Yoke Flaw Detector" standard.

    Standard Practice for Magnetic Particle Testing——ASTM E1444-05

    Product features

    1, Compact size, handy and light weight, robust construction is safe for operator

    2. One-piece forming, comfortable hand feel.

    3. Two power supply modes can be selected freely: single-phase AC power supply (straight plug mode); DC magnetization power supply (dc battery pack)

    4.Strong and rugged construction for continuous inspection

    Technical Parameters

    Model/Item

    HCDX-220AC


    HCDX-220DC


    Power/220V50Hz 12V
    Power source220V 50Hz220V 50Hz
    Rechargeable Battery/MF12—7.2AH
    Working currentAC1.4A

    AC1.4A

    DC1.7A

    Charging time/8~15h
    Battery working time/6hours up
    Testing time100 seconds on 100 seconds off100sec on 100sec off
    Pole distance0-200mm0~200mm
    Lifting capacityA C>5.5kg>5.5kg
    D C/>26kg
    Yoke weightProbe3.1kg3.1kg
    Battery pack/2.9kg
    Size (㎜)Probe208×52×146208×52×146
    Battery pack/160×70×100
    Charger/75×50×40

    Standard delivery

    HCDX-220AC

    Electromagnet yoke

    Power cord

    Carrying case

    HCDX-220DC

    Electromagnet yoke

    Power cord

    Battery pack

    Battery charger

    Battery DC connection cable

    Battery bag

    Carrying case



    Optional accessories

    White light lamp and UV lamp
