    CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : TG-2910
    Certification : CE ISO
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 500 sets per months
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    CE Ultrasonic Thickness Gauge Measuring Thickness And Corrosion Of Pressure Vessels

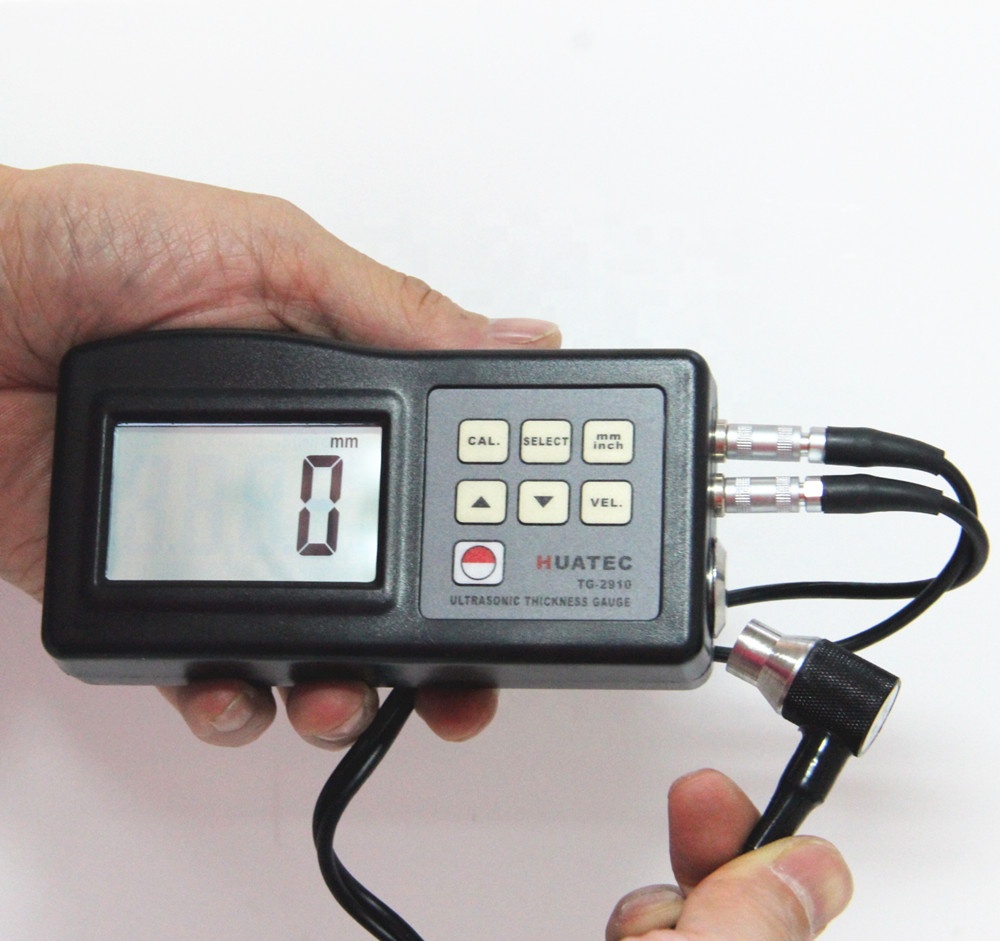

    Ultrasonic Thickness gauge TG-2910

    Application

    TG-2910 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.


    Description

    l Measuring range (metric/imperial)1.2-225mm, 0.05-9inch
    l Operating principleULTRASONIC
    l Sound velocity500-9000m/s
    l Lower limit steel pipesф15x2.0mm, ф20x3.0mm determined by the transducer
    l Calibration blockincluded
    Resolution0.01mm
    l Accuracy±(0.5%n+0.1)
    l Power supply4x1.5V AA(UM-3)battery
    l Battery indicatorlow battery indicator
    Operating conditions0-+45℃(32℉-104℉),≤90%RH
    l Dimensions120x62x30mm
    l Weight164g (not including battery)

    Standard Delivery

    Main unit:1
    5M Φ8 Transducer:1
    Couplant bottle:1
    Carrying case:1
    Instruction manual:1

    Optional Accessories

    1. 6M Φ6mm thin material probe:

    measuring range (steel): 1.0-50.0mm

    Operating temperature:-10-+60℃

    2. 5M Φ12mm high temperature probe:

    measuring range (steel):4.0-100.0mm

    Operating temperature:-10-+300℃

    3. Cable and Software for RS232C interface
