Huatec Digital Paint Coating Thickness Gauge

Ask Lasest Price
Brand Name :	Huatec
Model Number :	TG8831FN
Certification :	ISO,CE
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	500 set per month
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

Huatec Digital Paint Coating Thickness Gauge

small error of measure excellent performance and good stability Coating Thickness Gauge
TG8831FN digital coating thickness gauge is using the magnetism and backset measuring thickness method .It can measure the thickness of the magnetism metal substrate (such as steel, iron, alloy and rigid magnetism steel and etc), non-magnetism cover layer (such as aluminum, chrome, copper, enamel, rubber, oil paint and etc) and non-magnetism metal substrate (such as copper, aluminum, zinc, tin and etc) and non-transmitting electricity cover layer (such as enamel, rubber, oil paint, plastic and etc). This instrument has small error of measure, excellent performance and good stability, easy operation and other characteristics, is a necessary measure instrument to control and guarantee the product quality, can be widely applied to manufacturing, metal processing industry, chemical industry, merchandise test fields.

Features

Precise measurements (2%+1)/(1%+1)
Quick measuring response and rapid measuring speed
Design of two independent parts ,better applicability, stable measurement results
Strong data processing and analysis :5 types of Statistic value and histogram

Technical Specification

Measuring range	F400:0~400μm,N400:0~400μm,F1:0~1250μm,F1/90:0~1250μm, N1:0~1250μm,F10:0~10000μm,CN02:10~200μm,
Measuring accuracy	1 point calibration : ±(2%+1)2 point calibration : ±(1%+1)
Calibration	1 point calibration /2 point calibration /basic calibration
Display resolution	0.1um (0~99.9um) / 1um (Over 100um)
Weight	250g(including battery package )
Operation environment	Temperature: 0℃~50℃ humidity: 20%RH～90%RH
Operation mode	Direct testing mode and block statistics mode
Measuring mode	continuous/single
Shutdown mode	manual/automatic
Operation alarm	Ring music to alarm mistake
Signal Dealing
Threshold	Limits setting and automatically alarm measured values out of limit
Data analysis	Analyzing a batch of measuring values via histogram
Statistic function	Mean/ Standard deviation / Number of measurements/ Maximum/ Minimum
Data Merory
Thickness values	500 measuring data
Delete	Single doubtful data / All data of one group
Power supply
Battery	9V Nickel-hydride/ alkaline batteries
Power battery inspection	low voltage indication

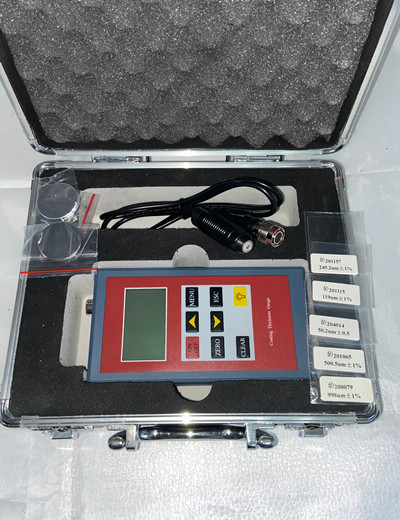

Standard delivery	Main unit	1
	Integrated probe((N 1 or F1 )	1
	Calibration foil set	4
	Calibration base set	1
	9V alkaline battery	1
	Instruction manual	1
Optional accessories
probe	F400,N400,F1/90,F10,CN02

Probe model

F400

F1/90°

F10

N400

CN02

Working principle

magnetic induction

induced eddy current

Measuring range(mm)

0～400

0～1250

0～10000

0～400

0～1250

10～200

( chromeplating upon copper base set 0～40)

Resolution (mm)

0.1

Tolerance

1point calibration (mm)

±(3%H+0.7)

±(3%H+1)

±(3%H+10)

±(3%H+0.7)

±(3%H+1.5)

±(3%H+1)

2point calibration (mm)

±(1%H+0.7)

±((1%H+1)

±(1%H+10)

±(1%H+0.7)

±(1%H+1.5)

--------

Measuring condition

Min curvature radius (mm)

convex

1.5

flat

convex

1.5

flat

Only flat

Min measure

Area(mm)

Critical substrate thickness(mm)

0.2

0.5

0.3

No limit
