0.001 Millimeters 0.0001 Inc 400mm Ut Thickness Gauge

Ask Lasest Price
Brand Name :	Huatec
Model Number :	TG-3250
Certification :	ISO,CE
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	500 set per month
Delivery Time :	3-7 working days

Add to Cart

Product Details
Company Profile

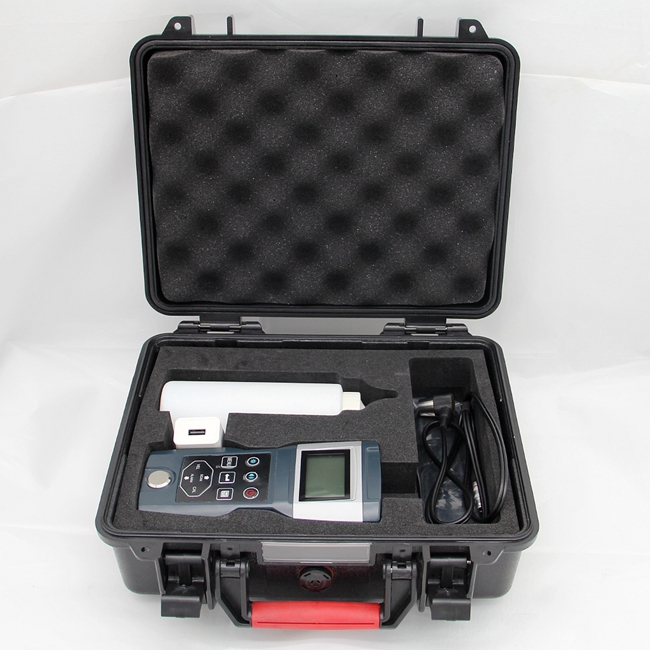

0.001 Millimeters 0.0001 Inc 400mm Ut Thickness Gauge

high precision accuracy as high as 0.001 millimeters or 0.0001inc digital Thru Coating Ultrasonic Thickness Gauge

TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on

Features:

1.High precision timing chip &V-Path model used for precision measurement

2.Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.

3.Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)

4.Bluetooth & Mini-USBinterfacefor printing& communication, host software upgradable

5.Can work with dual element probe and also single element probes

Main Functions:

1.Support Pulse-Echo, Echo-Echo, Interface-Echo measurement modes, gain adjustable

2.Scan mode, min/max capture mode, differential mode & alarm mode support

3.Sound velocity calibration by known thickness

4.Storage capacity of 1000 measurements with thickness, velocity, time, etc.

5.Communicate with PC or smart phones, support online measurement & command control (OC version)

Technical Parameters

Measure Range	0.75~400 mm (Steel)	Sound Velocity Range	1 ~ 19999 m/s
Resolution	0.001mm / 0.0001inches	Accuracy	0.03mm or 0.3%*H
Measuring Period	4 times per second	Probe Frequency	2MHz,3MHz,5MHz,7.5MHz
Calibration Mode	Probe Calibration & Two Point Calibration	Calibration block	4.000mm(Steel)
Measurement Mode	P-E, I-E, E-E	Gain Adjustable	16 Stages
Measuring Mode	Single point, scan, min/max capture, differential, alarm	Data Storage	1000 measurements, including thickness, sound velocity, time, etc.
Display	English / Chinese selectable, FSTN LCD Display with backlight	Display Content	Thickness, Sound velocity, Stability, Battery, Measuring Mode, etc.
Communication	Bluetooth & Mini-USB interface, virtual serial port protocol	Print	Optional portable Bluetooth thermal printers
Power Supply	3.7V Li-Ion chargeable battery	Power off	Timeout power off, low battery power off
Usage Temperature	-10 ~ 50 °C	Storage Temperature	-30 ~ 60 °C
Size	157mm78mm37mm	Weight	About 260g
Shell Material	ABS & PC alloy	Box Material	ABS (IK08 / IP67)

Prob

Probe Parameters

Label	5M Φ10	5M PT-08	2M ZT-12	7.5M PT-06	3M GT-12
Measure Range (Steel)	0.8~300 mm	0.8~300 mm	3.0~400 mm	0.75~50 mm	2.0~200 mm
Min. Measure Diameter	Ø25 x 3 mm	Ø20 x 1.2 mm	Ø30 x 4 mm	Ø15 x 1.2 mm	Ø25 x 3 mm
Probe Diameter	13mm	11mm	17mm	9mm	15mm
Effective area Diameter	10mm	8mm	12mm	6mm	12mm
Probe Frequency	5MHz	5MHz	2MHz	7.5MHz	3MHz
Contact Temperature	-10~60°C	-10~60°C	-10~60°C	-10~60°C	-10~310°C

Ver

Version	Measurement Mode	Thru-paint measurement	Measure Coatings
Basic	P-E	x	x
Standard	P-E, I-E, E-E	√	x
Advanced	P-E, I-E, E-E, E-C, C-E	√	√
