Huatec 60KHz Digital Eddy Current Conductivity Meter

Ask Lasest Price
Brand Name :	Huatec
Model Number :	HEC-101
Payment Terms :	T/T, Western Union,Paypal
Supply Ability :	500 set per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

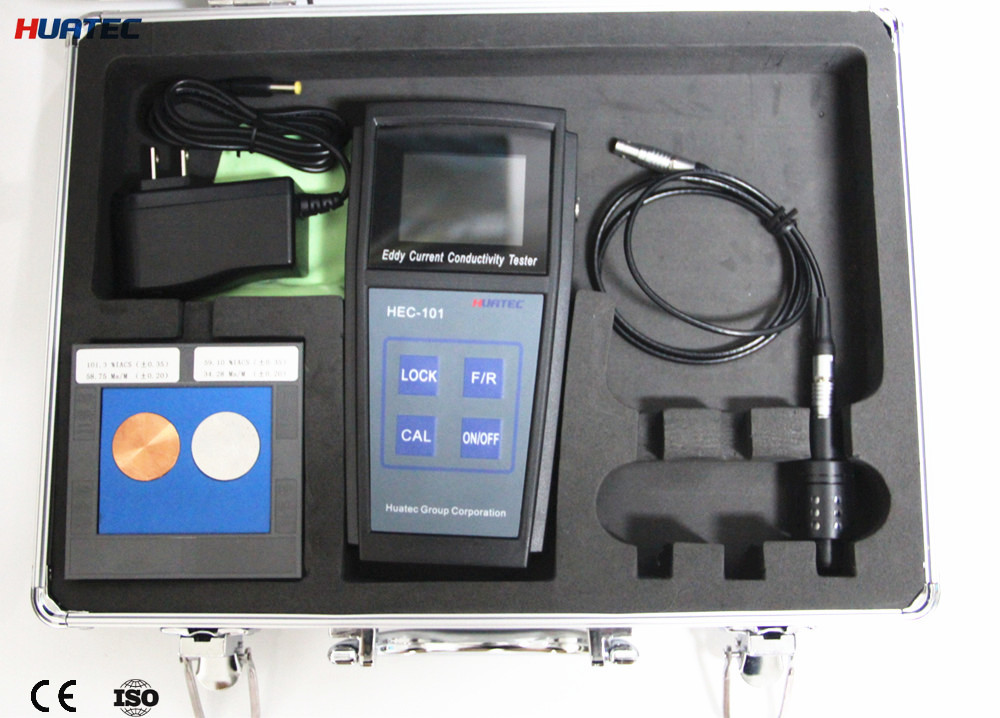

Huatec 60KHz Digital Eddy Current Conductivity Meter

High Precision Eddy Current Testing Equipment Digital Eddy Current Conductivity Meter

HEC-100 series products use 60 KHz (aviation industry standard) to inspirit, the testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini-size, you could easy to carry and to grasp hold. The design of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. About HEC-100, two kinds of operate languages (English &Chinese) satisfy different national demand. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.

Huatec 60KHz Digital Eddy Current Conductivity Meter

Application:
★ Absolute measurement of electrical conductivity of nearly all non-ferrous metals；(Ti – Ag)
★ In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy；
★ Test the conductivity whenthe aluminum have not been oxidized；
★ Measurement the purity of non-ferrous metals；
★ Test the resistivity ofconductivematerials；
★ Analyze thermal properties ofmaterials.

Hand-held eddy current conductivity tester for NF-metals with automatic normalization of the conductivity values to 20°C through temperature sensor.

HEC-101 Technical parameters

NAME	CONTENT	NOTE
Measurement technology	Eddy current
Operating frequency	60KHz
Display screen	Monochrome
LBH	1809040 mm
Instrument case	Anti-intense impact, water-proofing polyester	Match the fixed belt the leather protective covering
Weight	300g	Contain battery
Power supply	High capacity, high performance lithium polymer battery	Not back light illuminate may keep on working about 100 hours.
Measuring range	6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
Distinguishing rate	0.1% IACS
Measuring accuracy	0°Cto 45°C ±0.1%IACS-0.3%IACS
Temperature compensation	Automatic compensation to the value of 20℃	Automatic compensation function
Normal work environment	Relative humidity	0～95%
Operating temperature	0℃～50℃
Language	Chinese, English
Fitting	Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter	Conductivity sample installs in the instrument, to verify and guarantee temperature compensation
Probe Diameter	12mm (Applicable to minimum measuring area diameter at 60KHz is12mm.)
