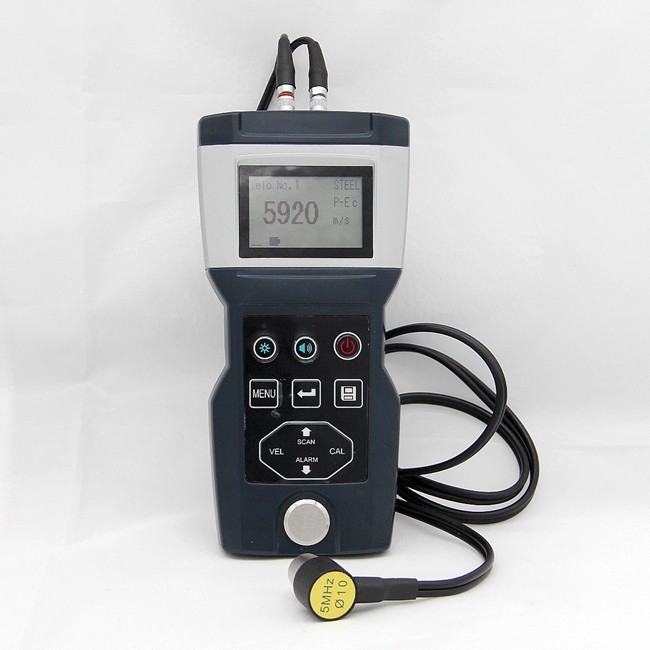

    Thru Coating TG-3250 2MHz Digital Ultrasonic Thickness Gauge

    Thru Coating high precision digital Ultrasonic Thickness Gauge TG-3250


    TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on


    Features:

    • High precision timing chip & V-Path model used for precision measurement
    • Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
    • Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
    • Bluetooth & Mini-USB interface for printing & communication, host software upgradable
    • Can work with dual element probe and also single element probes.

    Main Functions:

    • Support Pulse-Echo, Echo-Echo, Interface-Echo measurement modes, gain adjustable
    • Scan mode, min/max capture mode, differential mode & alarm mode support
    • Sound velocity calibration by known thickness
    • Storage capacity of 1000 measurements with thickness, velocity, time, etc.
    • Communicate with PC or smart phones, support online measurement & command control (OC version)

    Technical Parameters


    Measure Range0.75~400 mm (Steel)Sound Velocity Range1 ~ 19999 m/s
    Resolution0.001mm / 0.0001inchesAccuracy0.03mm or 0.3%*H
    Measuring Period4 times per secondProbe Frequency2MHz,3MHz,5MHz,7.5MHz
    Calibration ModeProbe Calibration & Two Point CalibrationCalibration block4.000mm(Steel)
    Measurement ModeP-E, I-E, E-EGain Adjustable16 Stages
    Measuring ModeSingle point, scan, min/max capture, differential, alarmData Storage1000 measurements, including thickness, sound velocity, time, etc.
    DisplayEnglish / Chinese selectable,
    FSTN LCD Display with backlight
    Display ContentThickness, Sound velocity, Stability, Battery, Measuring Mode, etc.
    CommunicationBluetooth & Mini-USB interface, virtual serial port protocolPrintOptional portable Bluetooth thermal printers
    Power Supply3.7V Li-Ion chargeable batteryPower offTimeout power off, low battery power off
    Usage Temperature-10 ~ 50 °CStorage Temperature-30 ~ 60 °C
    Size157mm*78mm*37mmWeightAbout 260g
    Shell MaterialABS & PC alloyBox MaterialABS (IK08 / IP67)

    Techn

    Version Comparison

    VersionMeasurement ModeThru-paint measurementMeasure Coatings
    BasicP-Exx
    StandardP-E, I-E, E-Ex
    AdvancedP-E, I-E, E-E, E-C, C-E

    Probe Parameters

    Label5M Φ105M PT-082M ZT-127.5M PT-063M GT-12
    Measure Range (Steel)0.8~300 mm0.8~300 mm3.0~400 mm0.75~50 mm2.0~200 mm
    Min. Measure DiameterØ25 x 3 mmØ20 x 1.2 mmØ30 x 4 mmØ15 x 1.2 mmØ25 x 3 mm
    Probe Diameter13mm11mm17mm9mm15mm
    Effective area Diameter10mm8mm12mm6mm12mm
    Probe Frequency5MHz5MHz2MHz7.5MHz3MHz
    Contact Temperature-10~60°C-10~60°C-10~60°C-10~60°C-10~310°C
