    Ra 0.01μM Huatec Digital Surface Roughness Tester

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : SRT5030
    Price : USD 460 set
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 500 set per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Ra 0.01μM Huatec Digital Surface Roughness Tester

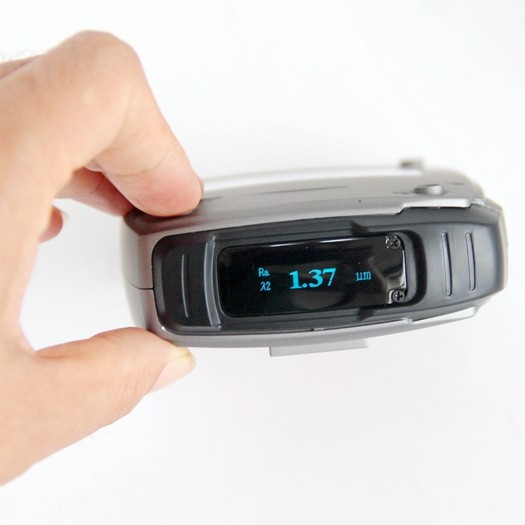

    Integral DUAL OLED Surface Roughness Tester SRT5030


    Features

    Dual OLED displays to suit your applications;

    2 start keys ( the left key & the right key) to satisfy the different using habits;

    Mobile app compatible to get the higher accuracy, convenient to be used in a small space

    ARM processor to offer higher speed, low power consumption and fast accurate measurement.

    Light weight of 150g, easy & convenient to use.

    Ra 0.01μM Huatec Digital Surface Roughness Tester

    Ra 0.01μM Huatec Digital Surface Roughness TesterRa 0.01μM Huatec Digital Surface Roughness Tester


    Main Technical Specifications
    Optional ParameterRa, Rz, Rq, Rt
    Measuring Range(μm)Ra, Rq: 0.05 ~ 10.0; Rz, Rt: 0.1 ~ 50
    Sampling Length(mm)0.25/ 0.80/ 2.5
    Evaluation Length(mm)1.25/ 4.0/ 5.0
    Running Length(mm)6
    Display Accuracy0.01μm
    Display Deviation±(7-10)%
    Display Repeatability<12%
    Stylus Radius10 μm±1 μm
    Static Contact Force≤ 0.016N
    Force Change Rate≤ 800N/m
    Sensor Lead Pressure≤ 0.5N
    Battery3.7V Lithium Rechargeable battery
    Dimensions in mm110×81×32
    Weight150g

    Standard Delivery

    Main Unit1 pc
    calibration block1pc
    Power adapter1pc
    USB cable1 pc
    User Manual1 pc
    Calibration certificate1 pc

    Optional accessories:

    ImageDescription

    Standard Roughness Calibration Block Multi-engraved lines (Square Wave)

    Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.

    Meet standard GB/T19067.1-2003 and ISO5436-1:2000

    Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um

    Customized Value and Sine Wave available, welcome to inquire.

    Standard Roughness Calibration Block Single engraved lines

    Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block.

    Meet standard GB/T19067.1-2003 and ISO5436-1:2000

    Approximation: Ra=0.1um, 0.2um, 0.4um, 0.8um, 1.6um, 3.2um, 6.4um)

    Customized Value available, welcome to inquire.

    Roughness Comparator (30 pcs/set)

    This set contains standards of the six most important machining methods in the prevalent "AA" values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u''AA (Arithmetical Average) and in the metric equivalents um Ra.

    Charge and Cable for Surface Roughness Tester

    Charger: US and EU standard optional

    Cable: USB interface
