    Automatic Loading Hardness Measuring Instrument 0.01µM Test Resolution

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HV-10MDX
    Certification : CE ISO
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 500 per months
    Delivery Time : 4 working days
    • Product Details
    • Company Profile

    Automatic Loading Hardness Measuring Instrument 0.01µM Test Resolution

    HV-10MDX Auto Turret Touch Screen Digital Vickers Hardness Tester Automatic (loading, Dwelling , unloadin


    Main features:

    Electronic loading, high accuracy sensor,with special closed-loop control system, each force is automatically compensated.

    Touch screen, simple operation of menu structure.

    Eyepiece structure with digital encoder, measure D1, D2 value, LCD display hardness value and D1, D2 value directly.

    Auto-turret,the indenter and the objective lens are automatically switched to each other, and the test point is automatically positioned accurately, loaded and unloaded.

    The hardness values of brinell, rockwell and vickers can be converted.

    It can be calibrated according to standard hardness block or length scale.

    Test force can be automatically corrected by standard dynamometer.

    All data is saved in EXCEL format on a usb stick

    Double language setting, convenient for users to choose.


    Technical specification:

    ModelHV-10MDX
    Test force0.3Kgf (2.94N),0.5Kgf (4.90N),1.0 Kgf (9.8N),2.0Kgf(19.6N),3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N),
    Carried standardGB/T4340,ASTM E92
    Min measurement unit0.01µm
    Data outputLCD display,saved in EXCEL format on a usb stick
    Conversion scaleHRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
    Hardness range8~2900HV
    Test force loading methodAutomatic(laoding,dwell,unloading)
    Eyepiece magnification100X(testing),200X(testing)
    Dwell time1~99s
    Max height of specimen180mm
    Distance from indenter to the wall160mm
    Dimension580*190*700mm
    Weightabout 55Kg
    Power supplyAC220V+5%,50-60Hz

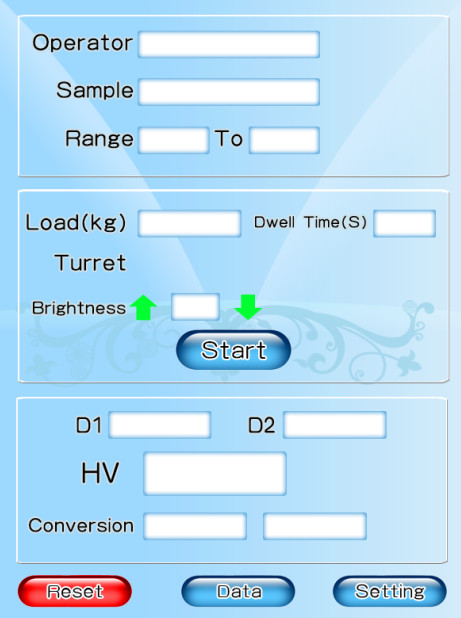

    Operation interface:


    Automatic Loading Hardness Measuring Instrument 0.01µM Test ResolutionAutomatic Loading Hardness Measuring Instrument 0.01µM Test ResolutionAutomatic Loading Hardness Measuring Instrument 0.01µM Test ResolutionAutomatic Loading Hardness Measuring Instrument 0.01µM Test Resolution


    Standard accessories

    ItemQuantityItemQuantity
    HV-1000-10X eyepiece1Large, medium, V sharped test tableEach 1
    Vickers test block2Fuse (2A)2
    Power cord1Dust bag1
    U disk1Touch pen1
    Certificate, warranty card1Manual1
    Wrench1Regulating screw4
