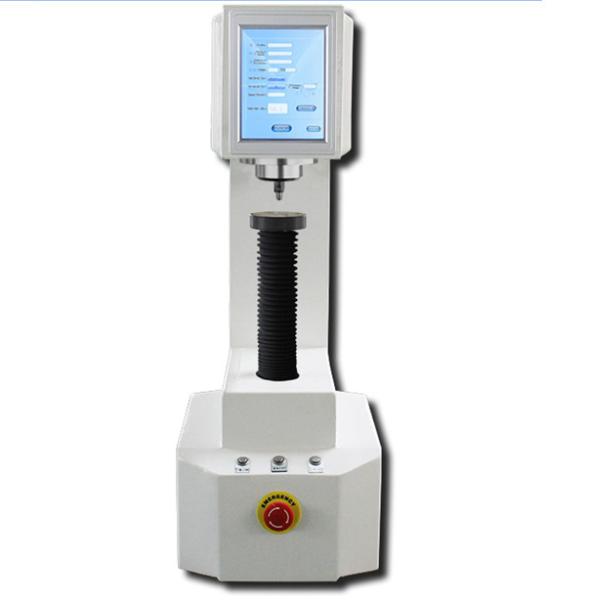

Name: Hrc Automatic Digital Rockwell Hardness Tester Machine High Resolution
Brand: HUATEC
Price: 8531 USD

Add to Cart

Automatic rockwell hardness tester,rockwell hardness testing machine

Model:HR-150DX-Z

Electronic electric loading, high precision sensors, with a unique closed loop control system.
Worktable automatic lifting, without manual rotation of screw wheel.
Press the start button, the table will rise automatically, the sample will be loaded and unloaded automatically after touching the pressure head, and the hardness value will be displayed automatically.
With the touch screen interface, the operator can directly select the hardness scale, and the force value can be changed automatically in the test parameters.
According to the standard hardness block, each hardness scale is divided into high, middle and low sections for automatic correction.
The test force can be automatically corrected by standard dynamometer.
Automatically apply the initial test force and the main test force.
Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, automatic alarm over the limit, can input the tester, sample name and other information.
More sample and test information, measurement data USB disk saved in EXCEL format, easy to edit and process.
Meet ASTM E18 standards.

2. Technical parameters

Model	HR-150DX-Z
Initial test force	10 KGF (98.07 N)
Main test force	60kgf(588N) 100kgf(980N) 150kgf(1471N)
Hardness scale	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Rockwell test range	HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Meet standard	BSEN 6508, ISO 6508, ASTM E18, GB/T230
Dwell time	0-99s
Hardness resolution	0.1 HR
Error of test force	< 0.5%
Data output	LCD display
Data is stored	The measured values are saved on USB flash drive in Excel format
Conversion scale	Rockwell, Brinell and Vickers
Maximum allowable specimen height	300mm
Distance from indenter to wall	200mm
size	560 * 280 * 850 mm
Weight	80kg
Power supply	AC220 + 5%, 50 ~ 60 hz

3. Operation interface

4. Standard accessories

Item	quantity	Item	Quantity
Diamond Rockwell indentor	1	Diameter 1.5875mm ball head	1
Hardness block (HRC high and low 2 pieces, HRB 1 piece)	3	Large, medium and V-shaped test tables	Each 1
Power cord	1	U disk, touch pen	Each 1
Product qualification certificate, warranty card	1	Instructions	1

5. Optional accessories

indenter cover
