Hr-P200 Rockwell Hardness Testing Machine Digital Magnetic Portable

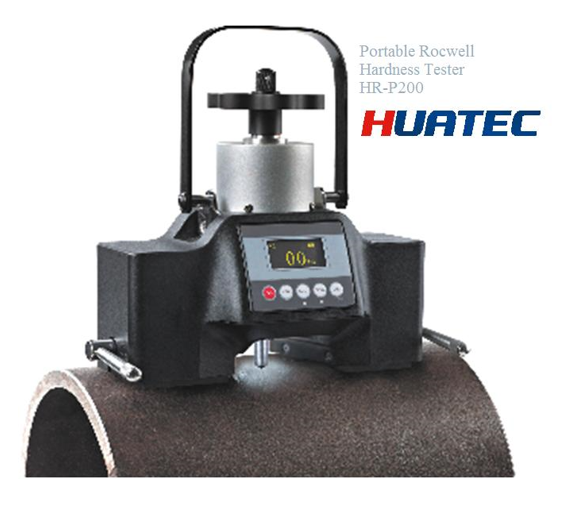

HR-P200 DIGITAL MAGNETIC PORTABLE ROCKWELL HARDNESS TESTER

APPLICATION

Apply to test large or heavy iron and steel parts for the desk testers.

Test the hardness of steel parts, bearings, moulds; large and medium-sized heating parts.

Test a large batch of parts piece by piece on site.

Replace inaccurate and unreliable Leeb hardness tester, in a wide range of manufacture industry.

FEATURES

World leading product designed and manufactured by HUATEC Group with patent, because of high-accuracy sensor and unique distance measuring technology, reaching far higher test accuracy than other portable hardness testers.

It is fixed onto the surface of an iron and steel part smartly with magnetic chucks. Simply reached one side of the part, the test could be accomplished. Only if the surface is available, an iron and steel part could be tested, no matter what shapes and sizes are.

It follows the Rockwell Hardness Test Principle, and complies with relevant regulation of ISO6508, and ASTM E18 standards.

It simplifies the operation steps of Rockwell Hardness Test: directly load total test force; maintain it for a few seconds; release the total test force and then the test is finished. It takes about only 10 seconds for a test, high effective.

It permits customer to calibrate the tester with a standard block at any time.

It could be operated under a temperature range of 0℃ to 50℃ either indoor or outdoor.

TECHNICAL PARAMETERS

Initial Test Force	10 kgf
Total Test Force	60 kgf, 100 kgf, 150 kgf
Testing Range	20~88 HRA, 20~100 HRB, and 20~70 HRC
Testing Resolution	0.1 HR
Indication Error	complying with ISO6508, ASTM E110 and ASTM E18 standards
Repeatability Error	complying with ISO6508, ASTM E110 and ASTM E18 standards
Test Force Error	≤±1%
Operating Temperature	0~50℃
Nominal Dimension	245 mm×105 mm×138 mm
Weight	5.3 kg
Test Piece Surface	Flat: Area≥195 mm×60 mm, Thickness≥5 mm Cylinder: Diameter≥60 mm, Length≥200 mm, Thickness≥8 mm

STANDARD ASSEMBLY

Portable Hardness Tester HR-P200

120°Diamond Indenter

1/16” Carbide Alloy Ball Indenter

Rockwell Hardness Block

Seat Iron

Recharger

Battery Box

Carrying Case

Instruction Manual

Calibration Certificate
