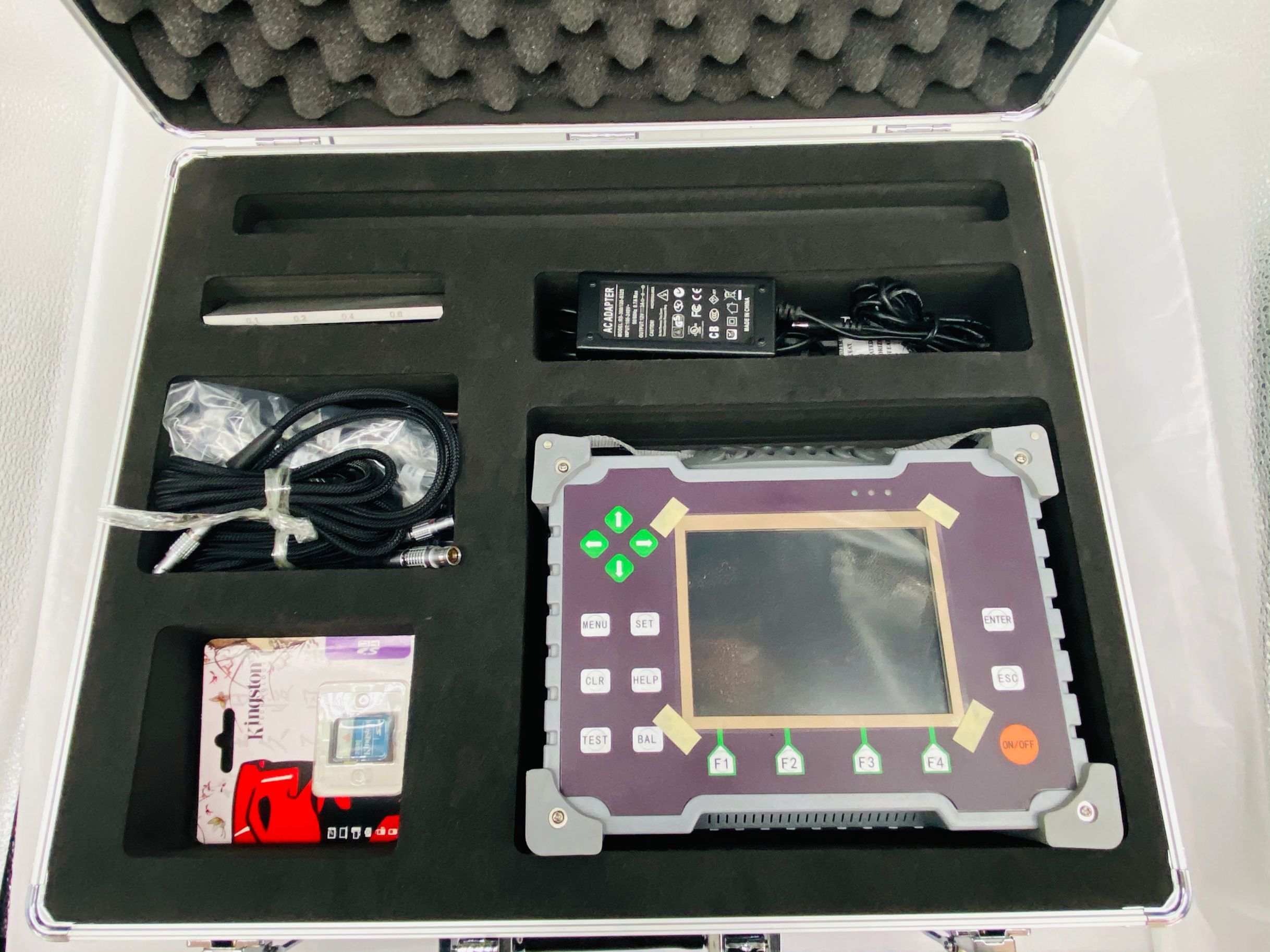

HEF-2D 10Hz to 10MHz Frequency Range Intelligent Dual Frequency
Eddy Current Detector In Digital Electronic Balance
Product description
1.HEF-2D is HUATEC electromagnetic product family adds a "forcing",
using the world's most advanced DSP and FPGA integration technology
greatly improve the signal processing speed, detection accuracy
rate is 10 times that of similar products.
2. Suitable for almost all eddy current testing applications, but
also effectively suppress interference signals, which not only has
a conventional digital "dual" eddy current testing, also has a
"magnetic memory, conductivity, thickness measurement" measurement
functions, products widely used in military vulnerability
assessment ( surface inspection blades, wheels, landing gear and
other aircraft components); aircraft rivet holes or bolt holes in
the surface crack detection hole without dismantling or removing
fasteners state, the multilayer structure of the aircraft, and
aluminum skin detection wing fuselage joints, the stress of the
metal structure has a strong focus on early diagnosis function.
3.HEF-2D Fool-style operation available., Without long time special
training, we will be able to work posts.
4. Special Note :Two functions required to configure different
sensors support.
Applications
For aerospace, aviation, special, college education, metal parts,
pipe, structure, weld, metal parts testing.
Technical Parameters
| Power | 1 10V ～ 220V, Built-in Rechargeable | Operating
Temperature: | -20° ～ 60°Ｃ |
| Supply | Lithium Battery 8000MAH | Dimensions | 250 MM X 200 MM X 85 MM |
Standard
System | Cartesian Coordinates, Polar Coordinates | Weight | 2.0KG |
| Display | Waveform, Value, So You At A Glance | Using DSP Digital
Filtering | High-pass, Low-pass Frequency
(0Hz～2000Hz) |
Alarm
Setting | Each Channel Independent Non-equal Size Settings | Alarm Sound | On / Off |
Testing
Method | Eddy Current Method | | |
Eddy current testing technical indicators:
1.Large screen, high brightness 5.7-inch color TFT-LCD, to solve the
shortcomings of traditional screen
2.Independent Detection Frequency:2 in total
3.Frequency range: 10 Hz to 10 MHz, excellent frequency regulation
performance
4.Gain: 0 dB ~ 99 dB, wide gain adjustment
5.Phase:0～359°,Step 1 Deg , flexible phase rotation
6.Intelligent Mixing Unit:1 in total
7.Lift-off height: 1--3mm, no need to hide the surface layer
processing
8.Automatic Balance:Digital Electronic Balance
9.Phase / non-amplitude, box and fan boxes, alarm mode to meet your
testing needs
10.Probe Driver:Vpp=1 ～ 8V,meet different probe structures, multi-function
11.Independent X and Y gain adjustment
12.Digital Filtering:HPF(0Hz ～ 2000Hz),LPF(0Hz ～ 2000Hz)
13.Capacity USB 2.0 (Host) output connection
14.Eddy current detection signal playback, analysis, save, print
function
15.Center coordinates: X Y adjustable
16.Operating System:Linux 2.6 Operation Language:English/Chinese
17.Display Mode:Impedance, time base, rectangular coordinates,
polar coordinates
18.Power Supply : 1 10V～220V, built-in rechargeable lithium battery 8000MAH
19.Online hotkey graphics, text help
20.Operating Temperature: -20° ～ 60°Ｃ
21.Standard system: Cartesian coordinates, polar coordinates
22.Instrument dimensions:250 MM x 200 MM x 85 MM,Weight:2.0KG
23.Display: waveform, value, so you at a glance
24.Using DSP digital filtering: high-pass, low-pass frequency(0Hz～2000Hz)
25.Fast digital electronic balance
26.Automatically clear the "magnetic field" effect
27.Alarm setting: each channel independent non-equal size settings
28.Alarm sound: On / Off
29.100 sets of detection process parameter storage
30.10000 graphics storage, graphics can be saved as a U disk
Coating thickness measurement technical data:
1.Testing method: eddy current method
2.Matrix: iron, non-ferrous
3.Conductivity test range:0—1500μm (0—59.04mil)
4.Display units:um & mil convertible
5.Resolution:1um
6.Accuracy: ±1um
7.Data memory: the measurement data can be stored for more than
1000
8.Language: Chinese, English
