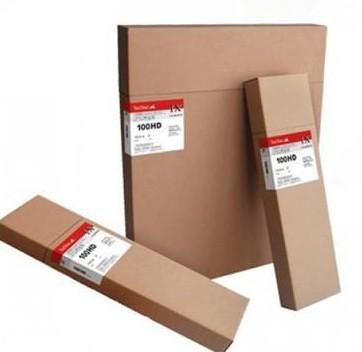

Different specification of D4,D7 HUATEC industrial radiographic
film
Product name and model specification
| Model | Specification |
D4,D4-D,H4,LA400,D5,D5-D,
D7,D7-D,H7,H7-D | 356mm×432mm(14in.×17in.),305mm×381mm(12in.×15in.),
260mm×360mm (10in. ×14in.),70mm×300mm,80mm×150mm,
80mm×240mm,80mm×300mm,80mm×360mm, 100mm×356mm,
195mm×275mm,70mm×200m,80mm×100m,80mm×200m |
Other specifications and packing capacity can also be provided
according to customer requirements.
Features and uses
Industrial X-ray film is a kind of high resolution and high image
resolution film which is widely used in
nondestructive flaw detection. The film has high sensitivity, high
contrast, high definition,
It can be directly or with lead sensitization screen for X or γ ray
exposure. It is suitable for electronic components,
synthetic materials, casting and casting, welding, etc.
NDT testing for shipbuilding, national defense and nuclear
industry, aerospace and aviation industry, etc. Using
blue polyester sheet base, two sides coated with emulsion layer,
layer and
Protective layer. This film has rich layers, high image resolution
and good definition. This film can be processed
at room temperature, also can be processed by high temperature
machine.
Features and uses
Product performance
Safety lighting and washing processing
The safety operating light in the darkroom of this film is a
crimson safety light with a 15W bulb. When the film is
used for unsealing, the lamp distance is generally above 1.2
meters. Cumulative illumination time
No more than 40 minutes. The exposed sample should be flushed
within 2h. The washing process is shown in the
table below.
Main film working curve
D7 film aluminum working curve D7 film steel working curve
Storage and shelf life
This film should be stored in a low temperature dry place, the best
storage conditions are temperature 10℃ ~
23℃, relative humidity 30% ~ 65%. Should be strictly avoided in
high temperature, high
Stored in wet, radioactive and chemical gases, avoid to store in
the same room with processing liquid medicine,
and should be used within the validity period, product shelf life
of 30 months.
Matters needing attention
1. The film stored at low temperature should be taken out 2 hours
in advance before use, and placed at room
temperature for more than 2 hours to ensure the temperature of the
film and the use environment
The temperature balance is consistent, and then open the film
packaging, in order to avoid the formation of water
vapor on the surface of the film caused by the adhesion between the
films and affect the film picture effect,
To ensure the normal use of film.
2. The film should be unsealed, loaded and rinsed under the safety
lamp. The film should not be exposed for too
long under the safety lamp
Contaminated film, film should be handled with care to avoid
friction. After unsealing, the film should be used
up as soon as possible, and the unused film should be sealed
according to the original package.
