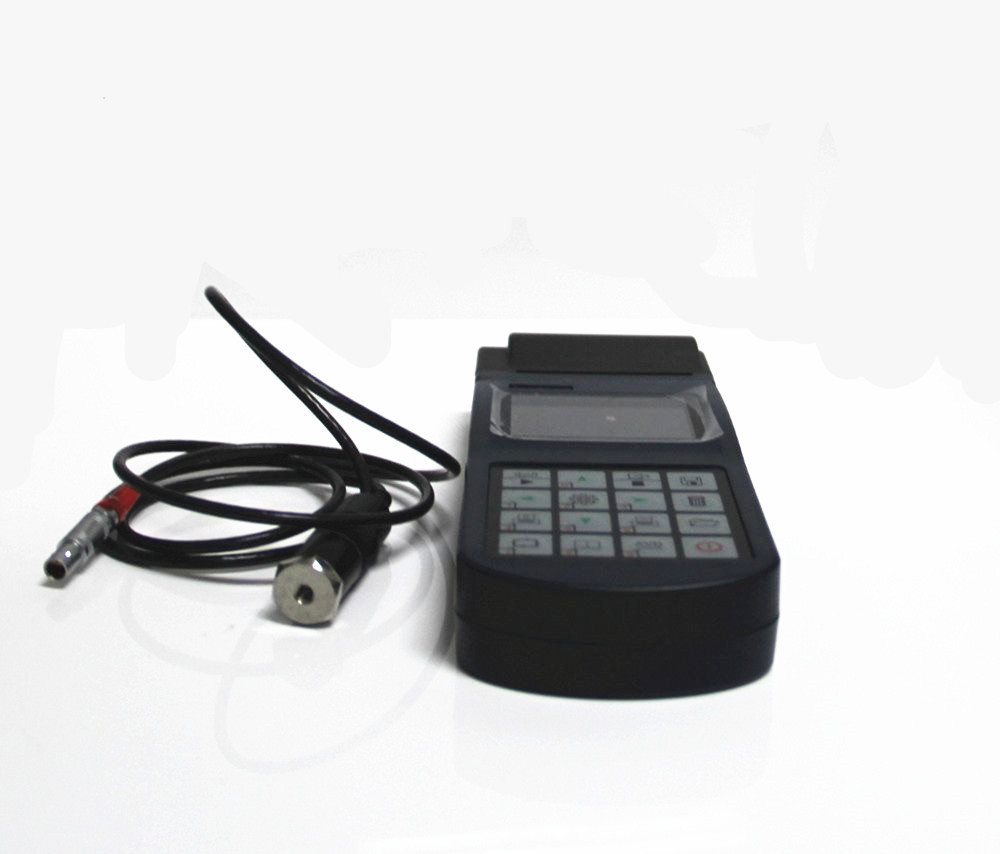

    Real Time Spectral Chart Usb Portable Vibration Meter For Industrial Fields HG-6380


    Real-time Vibration Meter spectral chart Portable For Industrial Fields HG-6380


    HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed. The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis. The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.


    l Basic configuration

    TitleQuantity
    Main body HG63801
    9V/1000mA power adapters1
    Vibration transducer1
    Package case1
    Manual1

    l Optional accessories

    TitleQuantity
    Data Management software1
    Magnetic base1
    Probe groupware1
    Laser transducer1

    l Specifications:

    Model nameHG-6380
    Testing range (Metric)Acce: 0.1 ~ 205.6 m/s2 (peak) Velo: 0.1 ~ 400.0 mm/s(RMS) Disp: 0.001 ~ 9.0 mm(peak-peak)
    Testing range (Imperial)Acce: 0.01 ~ 22.00 g(peak) Velo: 0.01 ~ 15.75 in/s(RMS) Disp: 0.1 ~ 356.3 mil(peak-peak)
    Freq rangeAcceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz
    Frequency resolution0.25Hz
    Data memory100 × 80 pieces of data and 100 spectrums
    SoftwareYes
    Temp0℃ ~ 40℃
    Tolerance±5%
    Speed measuring range30 ~ 300000 rpm corresponding to 0.5 ~ 5000Hz
    Measuring distance0.15 ~ 1m
    DisplayTFT 320×200 pixels with RGB
    Data interfaceUSB
    Overall dimensions212×80×35
    PrinterIntegrated thermal
    Weight320g
    BatteryRechargeable Li battery,1500mAh
    Continuous working timeAbout 50h
