Portable And Light Hg-6378 Handheld Vibration Meter Two Channel

Portable and light handheld Vibration Meter HG-6378 two channel

Application

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.

Portable And Light Hg-6378 Handheld Vibration Meter Two Channel

Features

* 2 same parameters in one display for 2 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specification

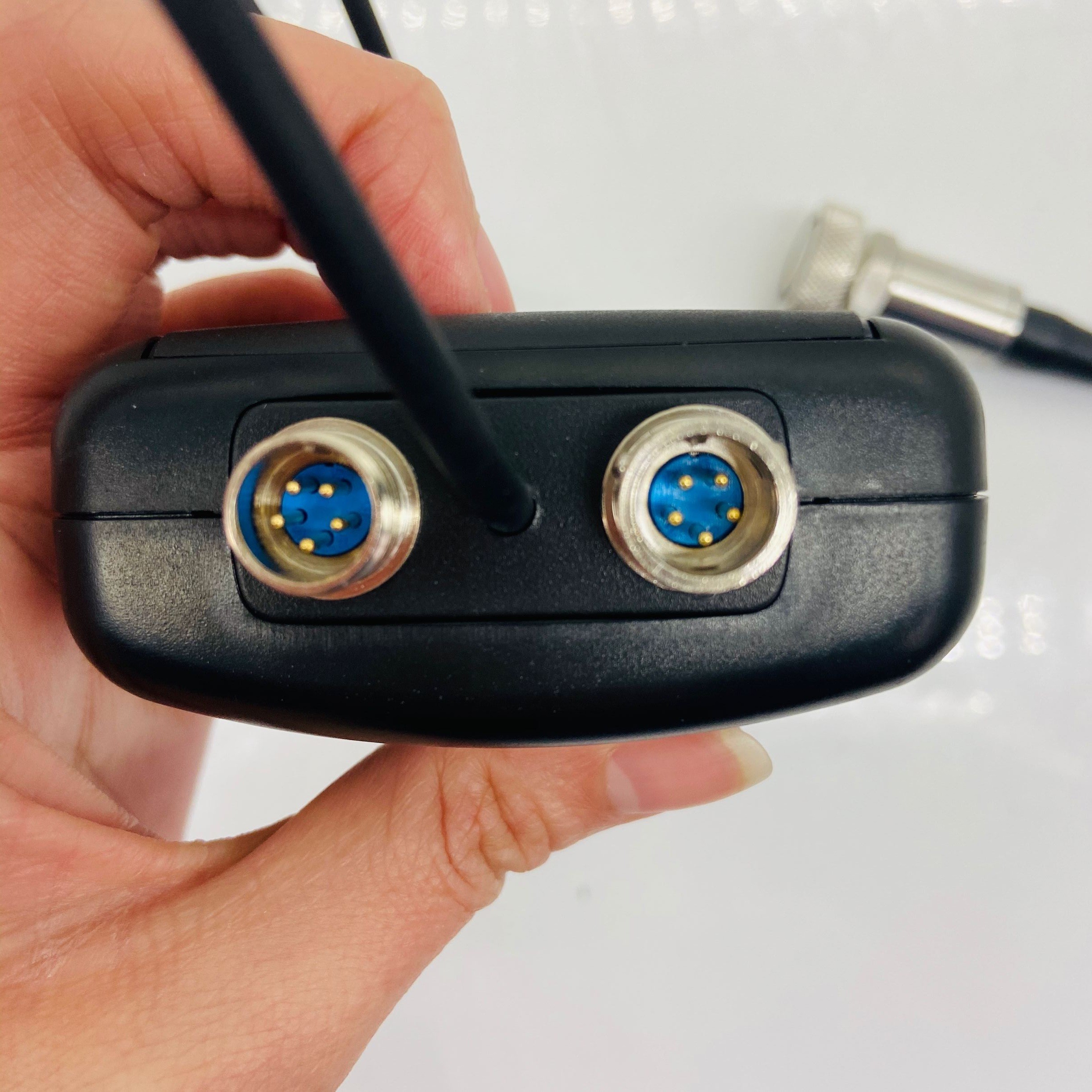

Sensor	2 Piezoelectric Transducers
Measuring Range	Acceleration	0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak
	Velocity	0.01~400mm/s 0.004~16.0inch/sTrue RMS
	Displacement	0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Acceleration	10Hz~10kHz
	Velocity	10Hz~1kHz
	Displacement	10Hz~1kHz
Accuracy	5% of Reading+2 digits
Operating Conditions	Temperature	0~50ºC
	Humidity	<90%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Dimensions	140x73x35mm
Weight	415g(Not Including Batteries)

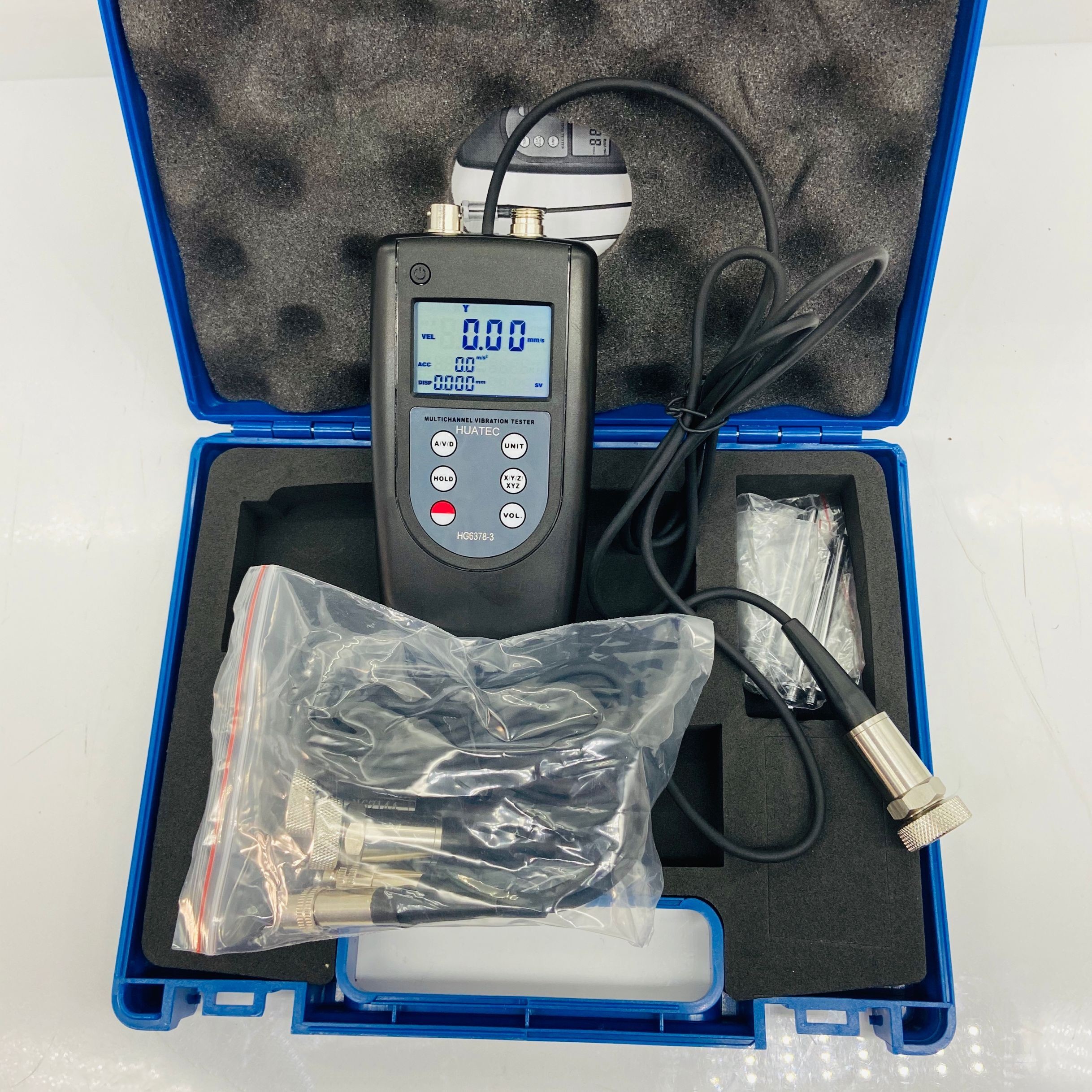

Standard Accessories	Main Unit
	Piezoelectric Transducers
	Powerful Rare Earth Magnet
	Probe(Cone)&Probe(Spherical)
	Carrying Case(B04)
	Manual Book
Optional Accessories	Headset
	RS-232C Data Cable with Software
	Bluetooth Data Adapter with Software

Vibration Standard

ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank	Rev(rpm)	H:high of shaft(mm) Maximum vibration velocity rms(mm/s)
Quality Rank	Rev(rpm)	80<H<132	132<H<225	225<H<400
Normal	600~3600	1.8	2.8	4.5
Good(R)	600~1800	0.71	1.12	1.8
Good(R)	1800~3600	1.12	1.8	2.8
Excellent(S)	600~1800	0.45	0.71	1.12
Excellent(S)	1800~3600	0.71	1.12	1.8

HUATEC has always been adhering to the first concept of customer-oriented, the products we sell will be carefully checked before shipping and then delivered to your hands.If you have any product requirements, you can contact me.Looking forward to your order.
