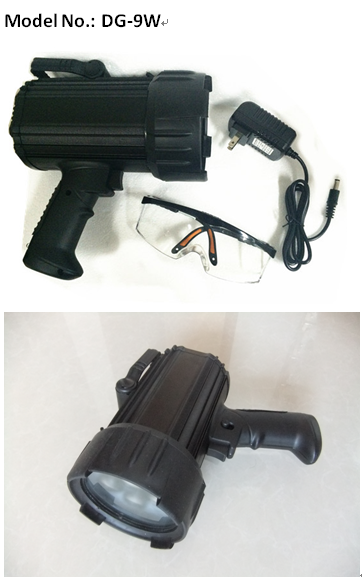

Handheld LED UV light UV lamp Ultraviolet lamp
Characteristic:
Internal batteries
Pre-alert and protection of low power
Light source life 30000H
Meet standard:ASTM E3022-2015 or JB/T 8290-2011
Feature:
9av power saving of power consumption
30000H life expectancy of light source
0 UV-B contained
Battery endurance 5-6hrs
Pre-alert and protection of low power
Weight 1kg only including batteries
Build in battery, no wiring outside, can change battery easily
Three minute delay(power saving)//constand lighting,mode can be
switched
Quartz and optical glass module, not PMMA material, excellent
weather resistance
Continuous operation and external surface temperature rises less
than 5 Celsius
No need to preheat, instant to reach 100% power
With UV and white light dual function, one hand switch.
White light less than 20LUX
UV irradiance intensity distribution diagram
Dimension: (mm)
Technical specifications
| Item | DG-4W | DG-8W | DG-4WX | DG-8WX |
| Standard | JB/T 8290-2011 | ASTM E3022-2015 |
| Intensity≥ | 4000uW/cm² | 8000uW/cm²
| 4000uW/cm² | 8000uW/cm² |
| White light≥ | 800LUX | 1200LUX | no |
| White levels≤ | 20LUX | 5LUX |
| Area covered | 280mm | 220mm | 280mm | 220mm |
| Power supply | AC100-240V 50/60Hz |
| Power | UV LED-9VA,LED Light-3VA |
| Wave length | Indoor temperature 25℃ 365nm±3nm(UVA) |
| Outline dimension | 203mm(W)*110MM(D)*220mm(H) |
| Weight | 1kgs |
| Battery capacity | 5800mA/H 12.6V |
| Battery cumulative time | UV LED 4-5H or Light 16H |
Notice
If not properly operated, the danger may cause minor injuries and
moderate injuries, especially in severe cases
Possible serious injury and death! In addition, it may cause damage
to property!
1, the power supply beyond the scope of "technical parameters";
2. When the earth socket is not used;
3. Maintenance of non professional personnel;
4. When the shell and cable are damaged;
5, the equipment is installed beyond the "safe use conditions";
6, when the lights open, you must wear professional UV protective
glasses throughout;
7, after opening, not allowed to look directly at the UVLED light
source;
8, must wear gloves and a sleeve full opaque;
Safe use condition
Please do not use in the following environment!
1. The place where the sun is shining directly;
2, the rapid change in temperature, will produce condensation site;
3, the temperature is lower than -10 or higher than 40 degrees;
4, humidity is greater than 85% or have rain, liquid splash place;
5, will bring vibration and shock to this product place;
Maintenance
1. Keep special glass clean;
2. Keep the appearance clean;
3, regularly cleaning fan filter, the cumulative time shall not be
more than 60 days;
4, the use of detergent, you must use a neutral detergent;
Attention: the lamp shell and the air duct prohibit the foreign
body covering! No display, shelving or installation of other items!
Please install the product correctly according to "technical
parameter"!
Warranty clause
1. Unless otherwise agreed, the warranty period will be one year
from the date of shipment;
2. When the number is altered or the seal is damaged, the warranty
is invalid!
3. The damage caused by natural disasters or non - resistance is
not within the scope of warranty;
4, not in accordance with the "safe use conditions" and "technical
parameters" installation or improper use of damage, not in warranty
Within the scope;
