HDL-P17A Digital Display Film Developer Processor
HDL-P17A NDT is the two high market, economical and practical
industrial flushing machine. It washes the width and speed of high
quality, good reliability and various specifications. It is widely
used in the construction of boiler, shipbuilding, pressure vessel,
petroleum and natural gas pipeline, and the quality inspection of
various kinds of dynamic and pressure equipment. Praised by the
clients of the testing industry.
| Model | HDL-P17A |
| Film specification | Minimum 10*10cm maximum 45*∞cm |
| Flushing time | 90-360sec |
| Developing time | 20-60sec |
| Flushing volume | 140pieces / hours(14"*17")210 pieces / hours(11"*14") |
| Drug tank capacity | Developing, fixing, and washing each 8L |
| Developer temperature | 20℃-40 ℃adjustable (interval 0.1℃) |
| Drying temperature | 40℃-65 ℃(automatic regulation) |
| Film induction | Imported microswitch |
| Volume ㎝³ | 79*69*42 |
| weight | Gross weight 60kg (net weight 55kg) |
| Anti crystallization and anti oxidation | 45 minutes / times |
| Flushing process | Development→Fixed shadow→washing→Dry |
| Supplement | According to the area of film flushing, automatic water
replenishment is provided, and manual replenishment is also
provided. The amount of water replenishment is 20-200ml/0.3㎡ |
| Water washing control | When the film is flush, it will automatically water for 2-8L/
minutes, and automatically shut down when standby. |
| Power consumption | 220V 50/60Hz 8.8A (flushing 2KW, standby 120W) |
Outstanding features:
digital display: all set parameters can be read from the operation
panel, easy to operate, include wide security; operation panel, can
be personalized: running time, flushing temperature and
replenishment.

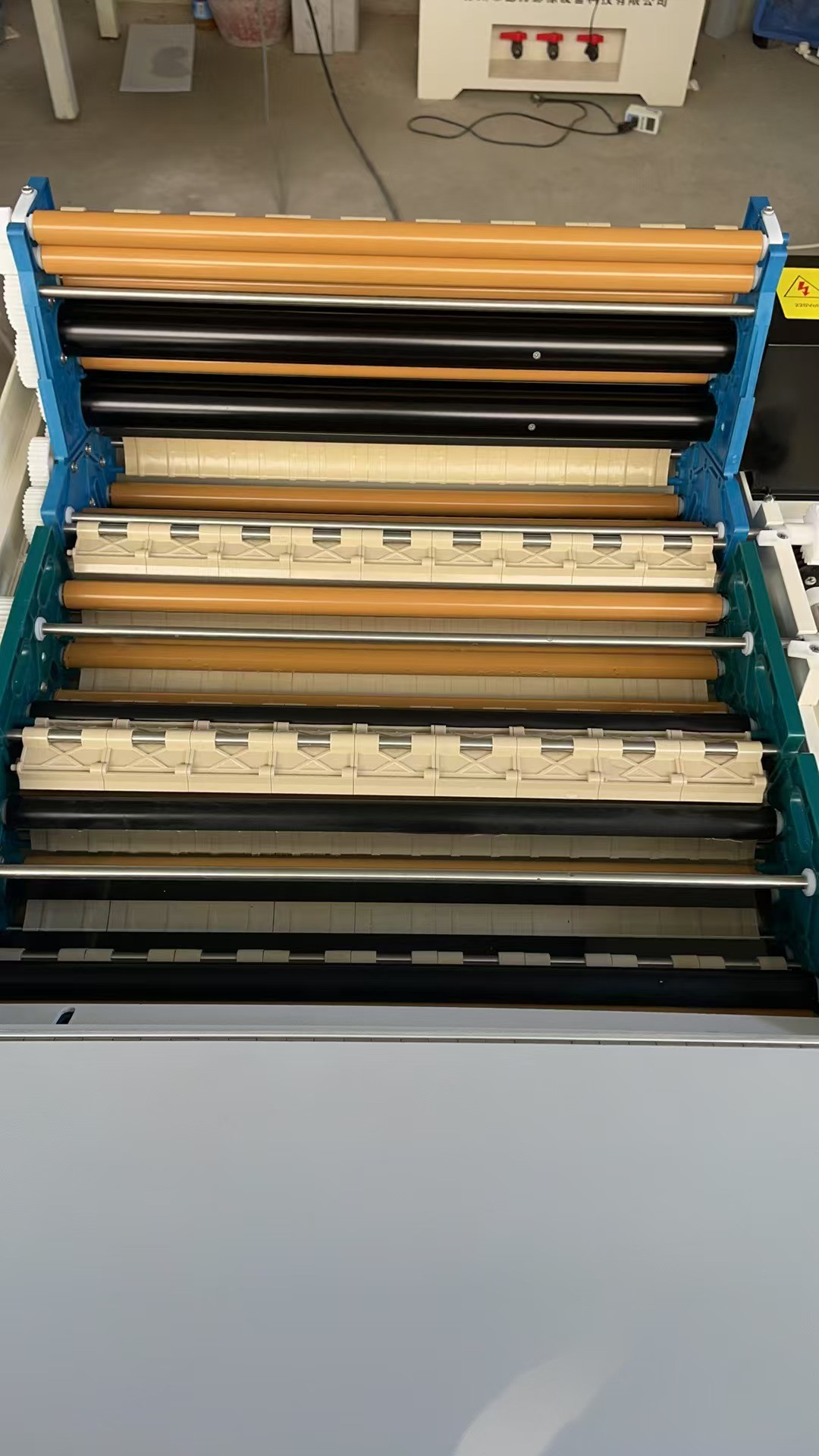

The shaft rack system of L precision roller can protect film
transmission and facilitate daily cleaning and maintenance.
drying system adopts special roller combination and electronic
control to ensure hot air drying film.
anti crystallization and anti-oxidation program design, continuous
circulation of liquid, prevent the aging of liquid, prolong the use
time, and get high-quality image.
Standard equipment
1. development synchronous heating system
2. development of independent circulation system
3. development synchronous supplementary system
4. water controlled water saving system of solenoid valve
5. professional conical air duct drying system
6. mechanical sensing feeding system
7. DKM electronic speed control energy saving system
Technical parameters:
The size of u film is minimum 60 * 100mm, the widest 450mm width
and the longest film is 15 meters.
film type film & sheet film
The running time of u is 4.5 to 14 minutes
chip speed 100~33 mm / min
development time is 60-180 seconds (recommended for 90 seconds)
washing volume 350*430mm 25 sheets / hour; 80*300mm 100 sheets /
hour.
volume development, fixing and washing each 6.8 liters.
supplementary volume automatic test supplement 50-200 ml / m2
development temperature can be adjusted from 20-40 degrees
setting temperature automatically adjusts according to developing
temperature
drying temperature 40-70 degrees
water temperature 5~30 degree
water consumption film is less than 2 liters / minutes during
operation
power 220~240V8.8A 50 or 60Hz
weight 60 kg
volume (long * width * height) 78 x 59 x 45 cm
