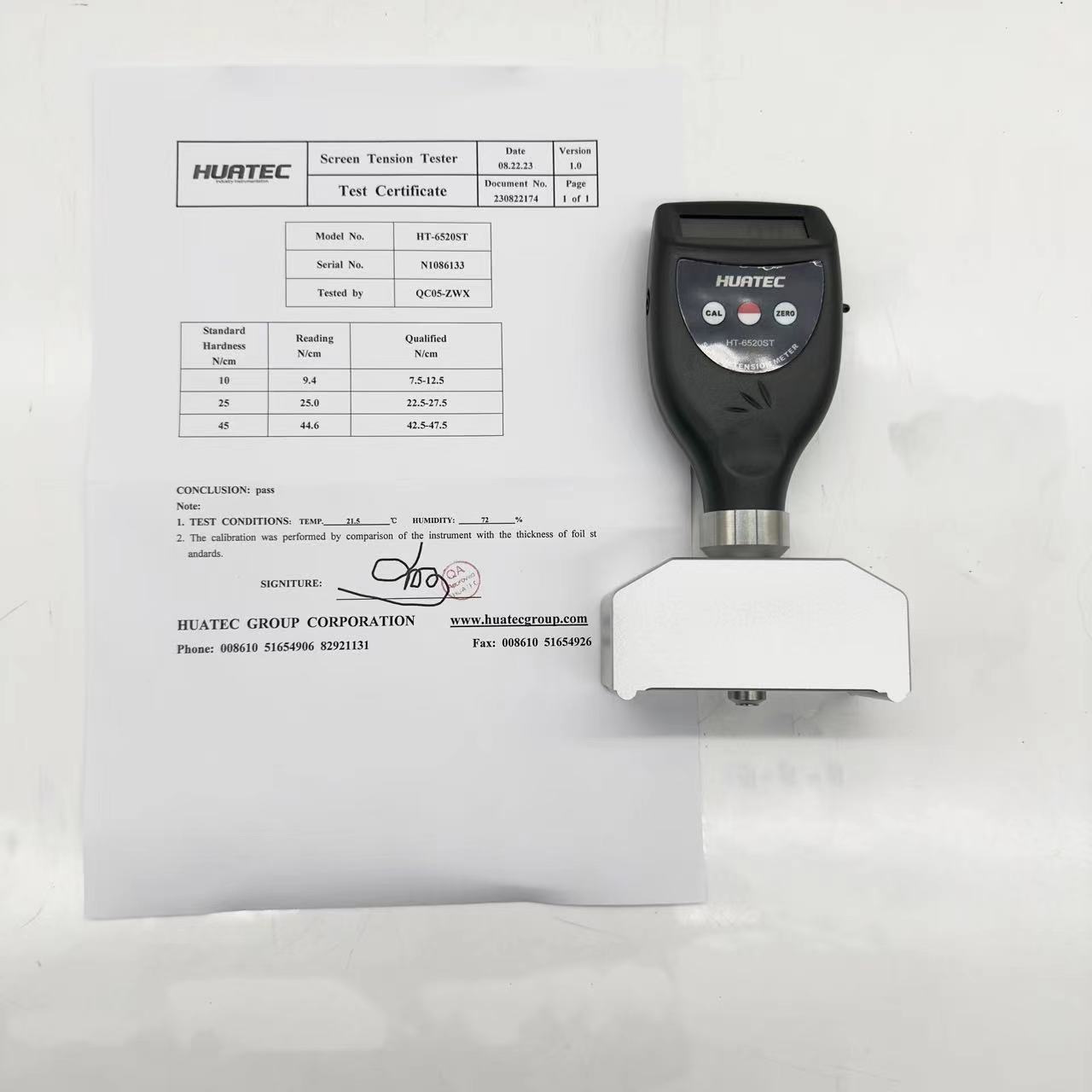

    High Accuracy Tension Meter For General Wire Mesh Tension And Steel Mesh Tension Measurement

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HT-6520ST
    Certification : ISO,CE,Gost
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 100 sets per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    High Accuracy Tension Meter For General Wire Mesh Tension And Steel Mesh Tension Measurement

    High Accuracy For General Wire Mesh Tension And Steel Mesh Tension Measurement


    Applications & Features

    * Suitable for general wire mesh tension and steel mesh tension measurement, high accuracy.

    * The ideal and necessary tool for production of precise screen and steel mesh. Can avoid the personal or tactile

    measurement error.

    * LCD digital display, eliminating reading error.

    * Applies USB, RS-232, Bluetooth data output

    Technical Data

    Commonly Used Screen Maximum Tension

    Data in the table is based on testing condition of Swiss thick gauze. Concrete data depends on the quality of

    network machine. With good quality network machine,the gauze will not crack even in the highest tension. but

    if it exceeds the maximum tension, the gauze cracks easily, please reference when trapping net.

    Maximum TensionRegulating Pressure
    77T200 mesh30N/cm7kg/cm
    90T230 mesh25N/cm6.5kg/cm
    100T250 mesh23N/cm6kg/cm
    120T300 mesh21N/cm5.7kg/cm
    140T350 mesh20N/cm5.3kg/cm
    165T420 mesh18N/cm5kg/cm
    Note: The above data is the reference data in the use of a factory pneumatic net machine, the specific operation according to actual circumstances

    Specifications

    Measurement Range7~40N/cm
    Diaplay Range0~50N/cm
    Resolution0.1
    Fiducial Error5%
    Operating ConditionTemp.: 0~40℃ Humidity: 10~90%RH
    Power Supply4x1.5V AAA Size (UM-4) Battery
    Dimensions175x95x40mm
    Weight490g (Not Including Batteries)
    Standard AccessoriesMain Unit
    Calibration Board
    Carrying Case
    Operation Manual

    Printing Task and Determination of Screen Tension

    Wire MeshPrinting TaskTension (N/cm)
    Ultra High Tension Wire MeshCircuit Board and Measuring Scale16~20
    High Strength Wire MeshMulticolor and Four-Color Printing (Mechanical Printing)16~20
    High Precision Ultra Fine Wire MeshHigh Precision Multi Layer Circuit Printing25~30
    High Precision Polyester Net (Standard Monofilament)Multicolor and Four-Color Printing (Manual Printing)8~12
    Ordinary Polyester Net (Standard Monofilament)Flat Object8~12
    Nylon MeshCurve Surface or Rough Object8~12
