Low price High performance Large screen (segment LCD) Portable Hardness Tester

Features:

• Compact plastic case,suitable for use under poor working conditions. Test at any angle, even upside down.
• Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL
• Large screen (segment LCD), showing all functions and parameters. With EL background light.
• Large capacity memory could store 100 groups information.
• Datapro Software to connect with PC via RS232 port. Micro printer support
• Software calibration function.

Technical Specifications:

• Measuring range:(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
• Measuring direction:360°(↓↖↗↘↙→←↑)
• Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
• Display:segment LCD
• Data memory:max. 100 groups(relative to impact times 32～1)
• Working voltage:3V(2 AA size alkaline battery)
• Continuous working period:about 100 hours(With backlight off)
• Communication interface:RS232

• Main Application

• Die cavity of molds
• Bearings and other parts
• Failure analysis of pressure vessel, steam generator and other equipment
• Heavy work piece
• The installed machinery and permanently assembled parts.
• Testing surface of a small hollow space
• Material identification in the warehouse of metallic materials
• Rapid testing in large range and multi-measuring areas for large-scale work piece

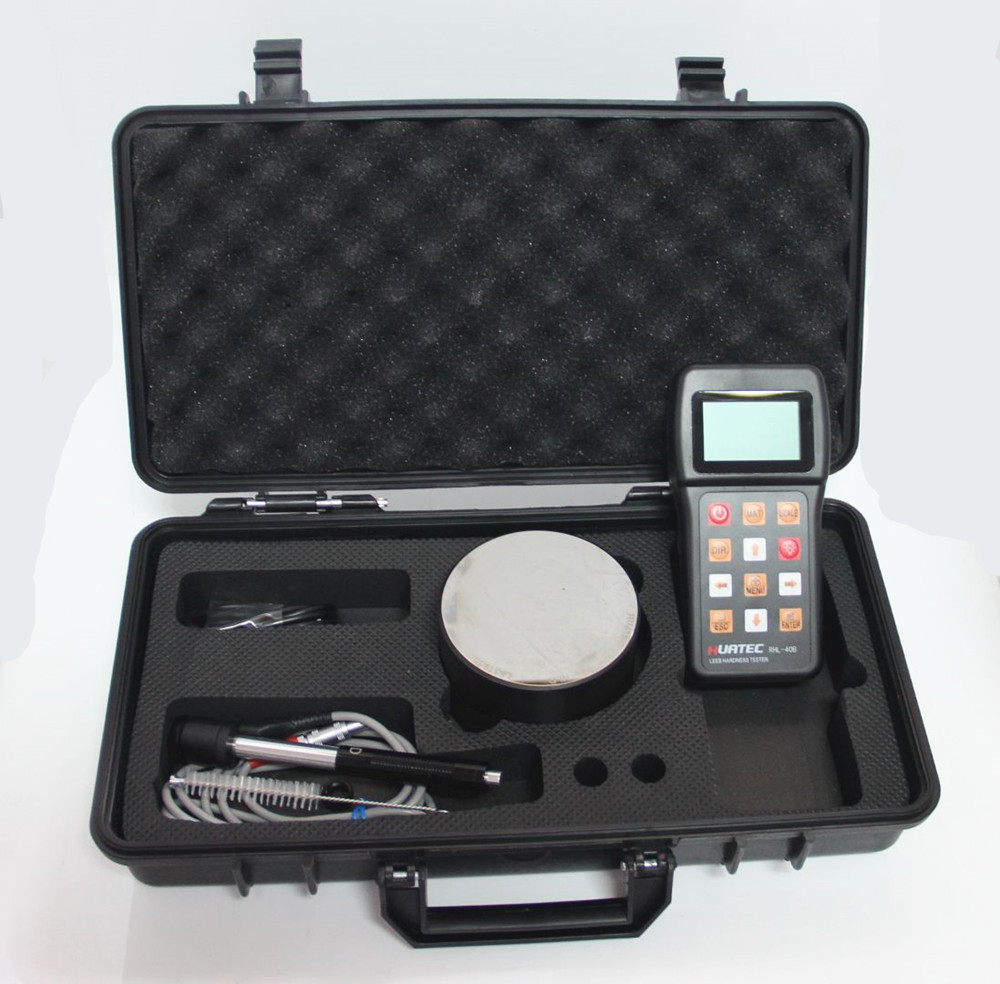

• Configuration:

  	No.	Item	Quantity	Remarks
  Standard Configuration	1	Main unit	1
  	2	D type impact device	1	With cable
  	3	Standard test block	1
  	4	Cleaning brush (I)	1
  	5	Small support ring	1
  	6	Alkaline battery	2	AA size
  	7	Manual	1
  	8	Instrument package case	1
  Optional Configuration	9	Cleaning brush (II)	1	For use with G type impact device
  	10	Other type of impact devices and support rings		Refer to Table 3 and Table 4 in the appendix.
  	11	DataPro software	1
  	12	Communication cable	1
  	13	Micro Printer	1
  	14	Print cable	1

•
•
