    Carbon Steel 1018 Stainless Steel 304 ISO2400-1972E, BS2704 DIN 54120 Ultrasonic Calibration Blocks IIW V-2

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : IIW V-2 block
    Certification : ISO,CE,Gost
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 100 sets per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Carbon Steel 1018 Stainless Steel 304 ISO2400-1972E, BS2704 DIN 54120 Ultrasonic Calibration Blocks IIW V-2

    Carbon Steel 1018 Stainless Steel 304 ISO2400-1972E, BS2704 DIN 54120 Ultrasonic Calibration Blocks IIW V-2

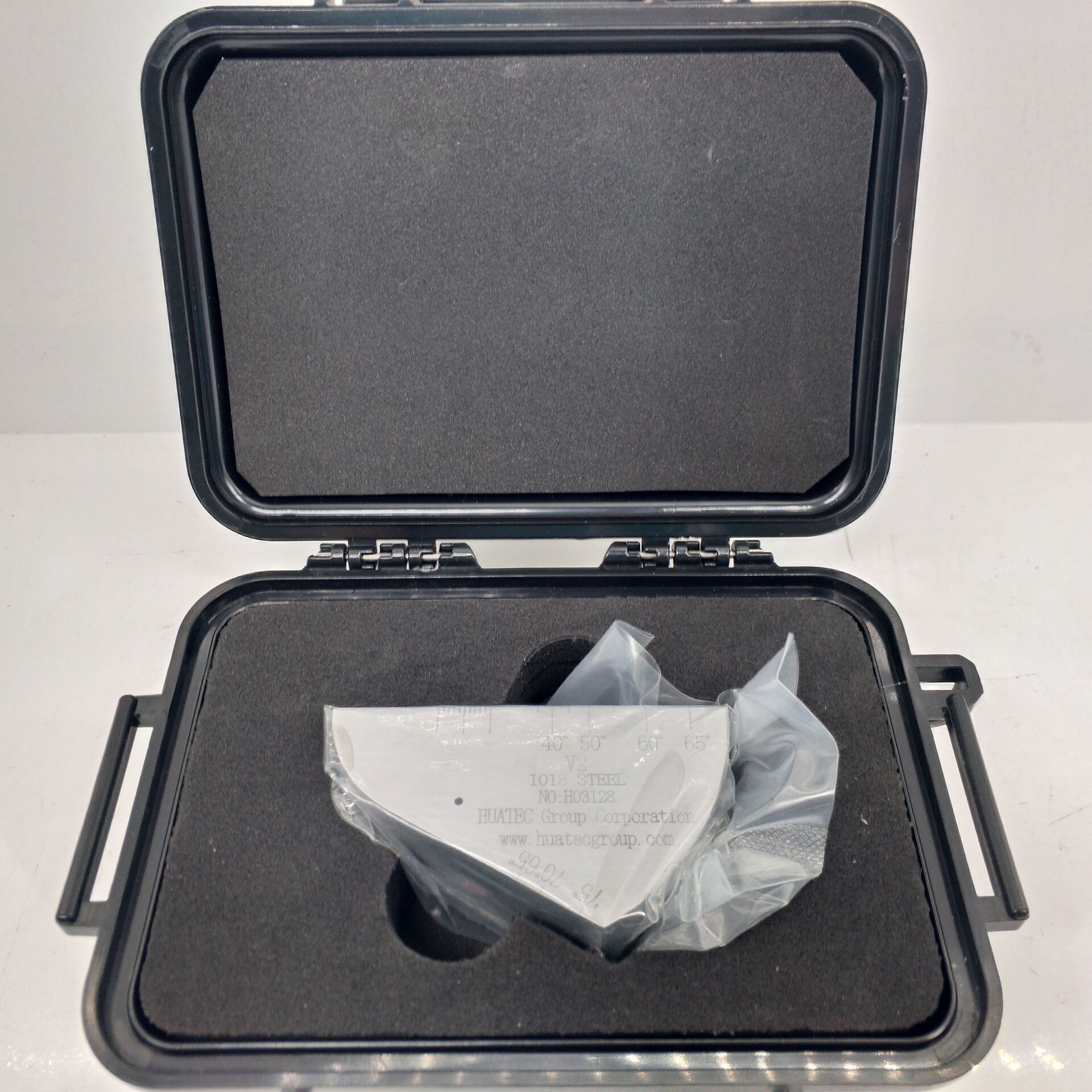

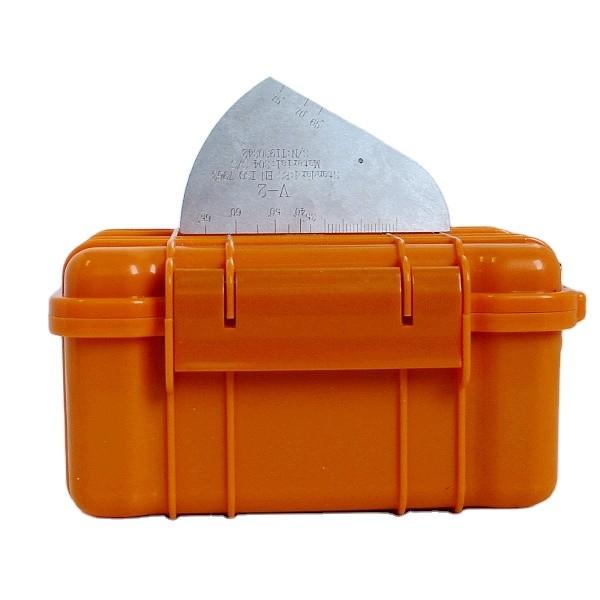

    IIW 2 test block

    Standard: BS 2704


    IIW2 test block (V-2 test block) is the standard test block approved by the International Welding Society. V-2 (DIN54122) compared with IIW test block, V-2 test block has the advantages of light weight and easy to carry, especially suitable for field use. See Figure 1-2.


    Main Points of use:

    (1) The incident point and sensitivity margin of the inclined probe were measured by using an arc reflection surface with a radius of R50mm;

    (2) Using the reflection surface of 5-pass hole, the refraction range of tilt probe is 45°-65° and 65°-75°, respectively.

    (3) The horizontal and vertical linearity of the flaw detector can be measured by using multiple p-wave reflections of the bottom with a thickness of 12.5mm;

    (4) Two arc surfaces, R25 and R50, are used to correct the time axis and zero point.
