    Non Destructive Testing Ndt Equipment Led Ultraviolet Torch Lamp Uv Lamps

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : DG-30
    Certification : ISO,CE,Gost
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 100 sets per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Non Destructive Testing Ndt Equipment Led Ultraviolet Torch Lamp Uv Lamps

    Non-Destructive Testing (NDT) LED Ultraviolet Torch Lamp UV Lamps


    1· Introduction

    DG-30 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

    The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:

    1. Exposure intensity on the workpiece surface must be greater or equal to 1000 uW/cm².
    2. The wavelength should be 315nm~400nm, and the peak value wavelength should be 365nm.
    3. Light source should meet the specification of GB/T5097.

    2. Main Application

    1. Fluorescence Penetrate Testing
    2. Fluorescence Magnetic Particle Flaw Detection
    3. Fluorescence Leak Detection

    Other Application

    1. Oil Stain, Blot Testing
    2. Special Gas, Oil and Gas Pipeline Testing
    3. Fluorescence Reflection Detection for Special Materials
    4. Criminal Investigation and Legal Medical Expert Survey
    5. Paper Money Authentication, Jewel Appreciation
    6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

    3. Characteristic and Performance

    1. HUATEC DG-30 adopts high-power 365nm Ultraviolet band LED Lamp

    Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

    1. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
    2. Quick Start, can reach the maximum illuminance as soon as switch on.
    3. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
    4. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
    5. Optical filter is black vitaglass.
    6. High strength aviation aluminum alloy shell with anodize surface.
    7. Enhance thermal design, can be used continuous for long time.
    8. Configure dedicated high speed charger for each lamp.
    9. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
    10. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

    4. Technical Parameters


    Mode

    DG-30
    Lamp BeadsNICHIA 365nm Ultraviolet band LED Lamp Beads
    Lamp Bead Amount1
    Input Voltage3.7-4.2V
    Output Power3W
    Intensity of Ultraviolet Ray at 38cm Distance

    ≥13000

    uW/cm2

    Irradiated Area at 38cm Distance¢45mm
    Diameter of Light Inlet Window¢34
    Battery ModelICR 26650
    Battery Capacity4800mAh
    Number of Battery1
    Charging Time≥6H
    Working Hours≥5H
    Battery LifeMore than 500 time for fully charge and discharge
    Outline DimensionA¢40 mm
    B¢33 mm
    L144 mm
    Weight(including Battery)240g

    5. Configuration List

    DG-30
    Main Device1
    Battery1
    Charger1

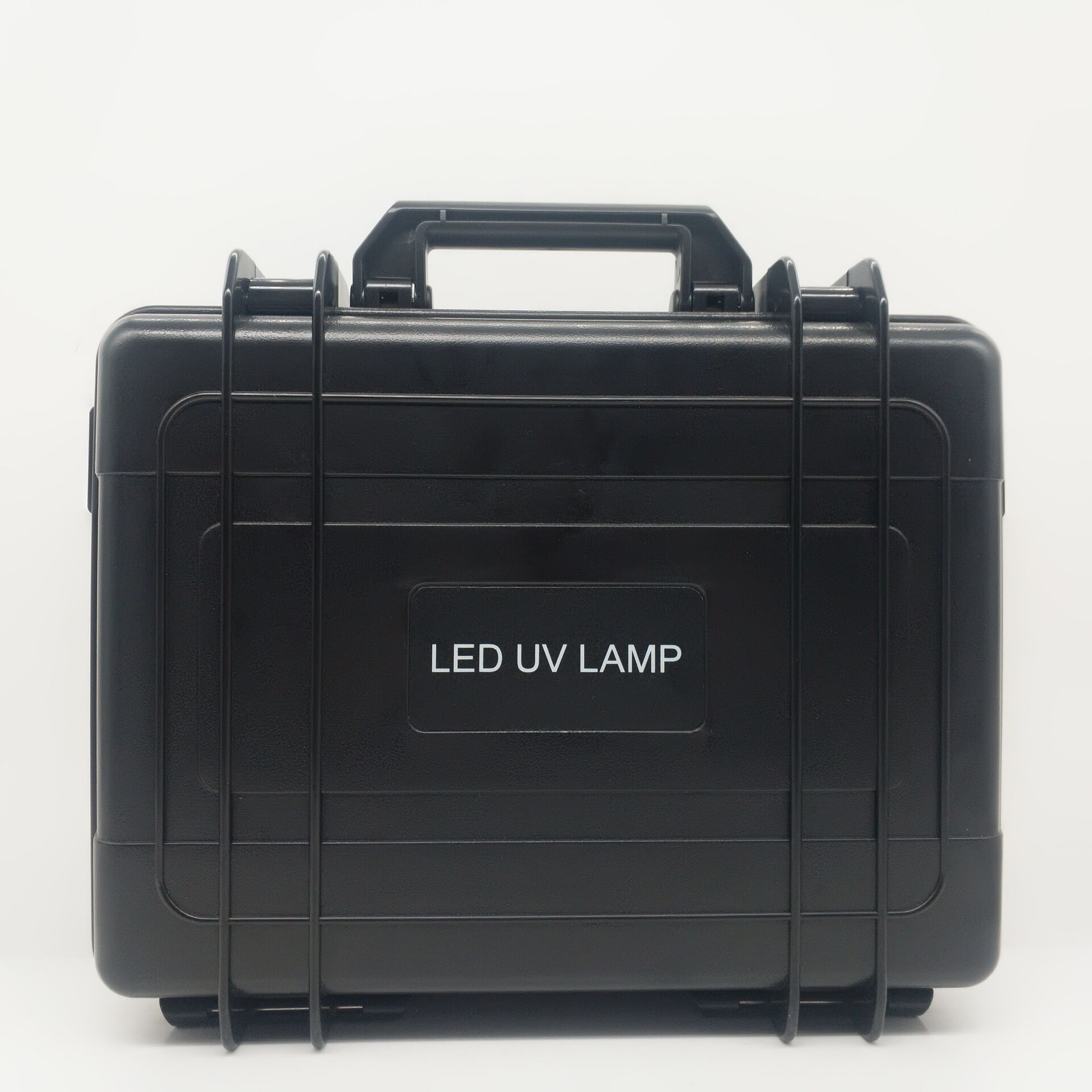

    Suit case1
    Operating Manual1
    Certification1
    Warranty Card1
    Packing List1

    Optional Configuration

    Protective Glass
