    Nondestructive Inspection Ultrasonic Rail Flaw Detector Digital

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : FD-GT-3
    Certification : ISO,CE,Gost
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 100 sets per month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Nondestructive Inspection Ultrasonic Rail Flaw Detector Digital

    Non-Destructive Inspection Digital Ultrasonic Rail Flaw Detector Ultrasonic Rail Flaw Detector


    9 independent flaw detection channels

    Type A &B display

    Probe self-test function

    GPS positioning system


    FD-GT-3 digital Ultrasonic rail flaw detector is the latest hand-pushed digital ultrasonic rail detection instrument. The instrument is equipped with global positioning system (GPS) and built-in storage device to record the whole process of flaw detection. The data can be easily imported into the computer through the SD card, so as to realize data management easily


    Functional Features

    • highlight 8.4 inch TFT screen, the sun visible;
    • 9 + 1 channel configuration, anti-interference design, satisfy various demand on site inspection,
    • preset type variety of rail flaw detection to set, and can be user-defined type rail flaw detection parameters;
    • dynamic type A stored all the way, can store more than six months continuously testing data;
    • fully sealed waterproof, dustproof design, adapt to bad environment;
    • smart lithium battery power supply, the machine can work continuously more than 10 hours.

    9 flaw detection paths

    The instrument consists of nine independent flaw detection channels and one calibration channel,Can realize the rail defect detection, positioning and other operations.


    Main technical parameters

    Number of channels: 9 independent flaw detection channels

    Operating frequency: 2MHz

    Pulse repetition rate: 400Hz

    Detection range: 0~300mm

    Dynamic range: ≥20dB, inhibition of 2~6dB

    Horizontal linearity: ≤2%

    Vertical linearity: ≤5%

    Attenuator: 0~80dB

    Gain error: ≤1dB (per 12dB)

    Operating voltage: 12V, power less than 8W

    Temperature range: -30 to 50℃


    A&B scan display

    FD-GT-3 has type-A and type-B scanning, among which type-B scanning is the side view of the rail, which can clearly distinguish the distribution and direction of defects. Type A and type B display mutually assist each other, easy to complete the ultrasonic inspection of the rail.


    Easy defect location using GPS system

    The FD-GT-3 recorded all the data of the operation, including operation time, location, detection speed and distance. All information can be continued on the computer management, and can generate inspection reports directly printed.

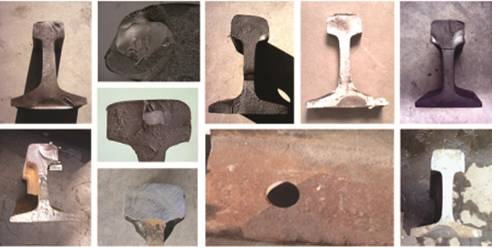

    Example of FD-GT-3 flaw detection
