Product Description:

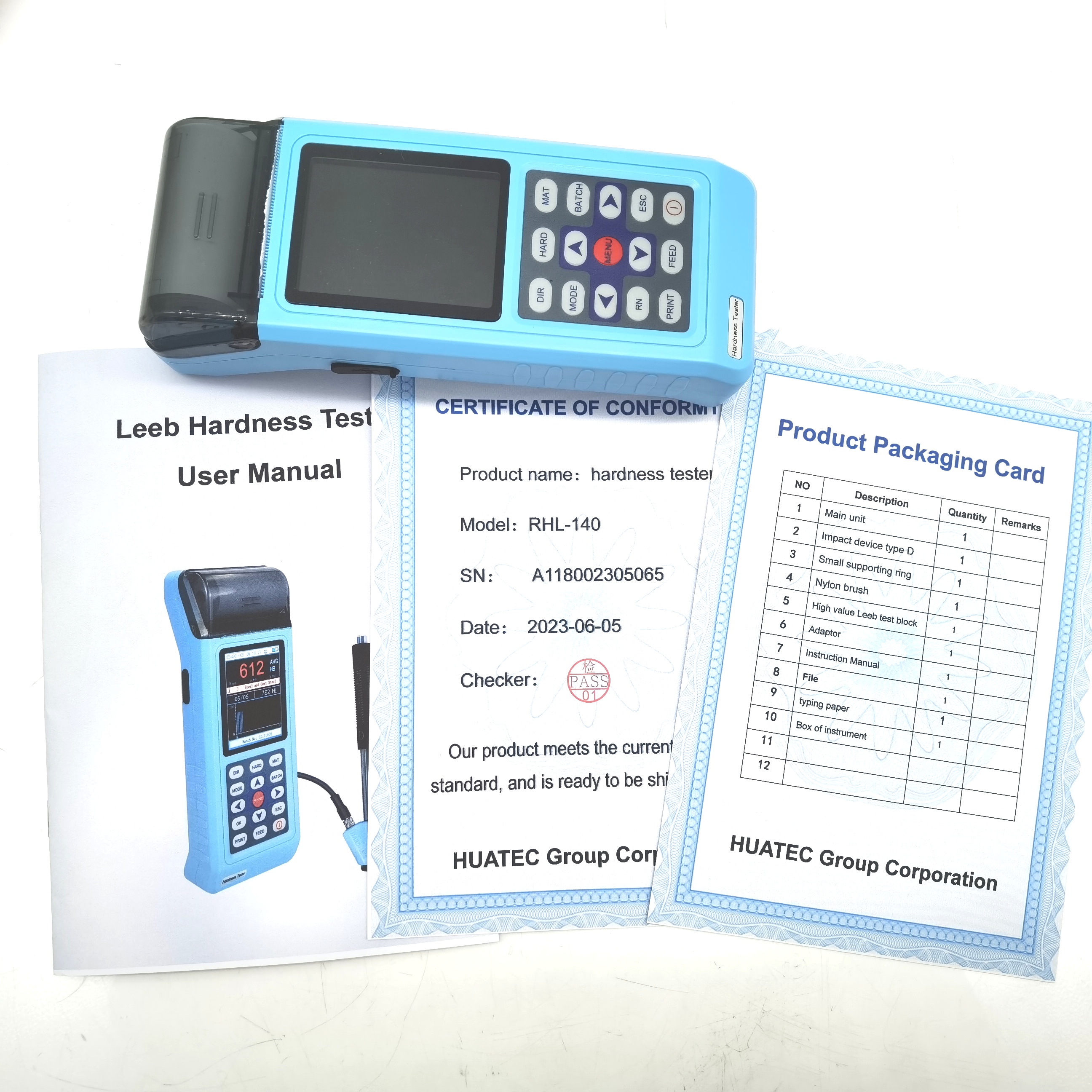

The Hardness Testing Machine is a portable, accurate and reliable
instrument for measuring the hardness of materials. It is equipped
with data storage capacity of 510 files and 46 to 215 groups, which
allows it to store a large amount of data for future review. The
machine is capable of testing the hardness of materials in
different systems, such as Leeb (HL), Brinell (HB).Rockwell A (HRA)
etc. The communication interface of the machine is USB2.0
(RS232,RS485). Moreover, it comes with a suitcase package for easy
and convenient carrying. The charging time of the machine is
2-3hours.
This Hardness Testing Machine is an ideal choice for engineers and
technicians who need a portable and reliable tool for hardness
testing. It is a great way to quickly and accurately measure the
hardness of various materials on the go.
Features:
- Product Name: Hardness Testing Machine
- Gross weight: 5kgs
- Model: RHL-140
- Communication interface: USB2.0 (RS232,RS485)
- Measuring direction: 360°
- Battery: 7.4V, Li(2000mAh)Battery
- Features: Portable Hardness Tester
Technical Parameters:
| Parameter | Value |
|---|
| Model | RHL-140 |
| Battery | 7.4V,Li(2000mAh)Battery |
| Charging power supply | 5VDC,220VAC |
| Display | TFT, 320 × 240 TFT LCD Screen |
| Impact device type | D,DC,DL,D+15,G,E,C |
| Storage temperature | -25～70℃ |
| Measuring range | HLD(170～960. HRA(59～85).... |
| Data storage | 510 Files, 46 To 215 Groups |
| Charging time | 2-3hour |
| Communication interface | USB2.0 (RS232,RS485) |
Applications:
The Huatec RHL-140 Hardness Testing Machine is a portable device
providing accurate and reliable hardness testing results. This
machine can be used to measure the hardness of a variety of metals,
alloys and other materials, such as steel, aluminum, copper,
titanium, brass, etc. It is equipped with D,DC,DL,D+15,G,E,C Impact
Device types to meet various testing requirements, and features a
USB2.0, RS232, RS485 communication interface for easy data
transfer. It also has a Gross weight of 5kgs and can store up to
510 files and 46 to 215 Groups of data.
The Huatec RHL-140 Hardness Testing Machine is ideal for testing
the hardness of a wide range of components and materials, from
small components to large components. It is perfect for laboratory
and industrial applications and is suitable for use in automotive,
aerospace, military and other industries. It is a cost-effective
and reliable solution for measuring the hardness of any material in
any environment. With its portable size and easy operation, it is
the perfect solution for any hardness testing requirement.
Customization:
This machine is designed to meet the highest standards, with a
operating temperature range of 0-40℃ and a storage temperature
range of -25-70℃. It is powered by a 7.4V Li(2000mAh) battery and
can be fully charged in 2-3hours.
