Handheld Portable Vibration Analyzer With Fft Analysis Function

Ask Lasest Price
Brand Name :	HUATEC
Model Number :	HG6380
Payment Terms :	T/T, Western Union

Add to Cart

Product Details
Company Profile

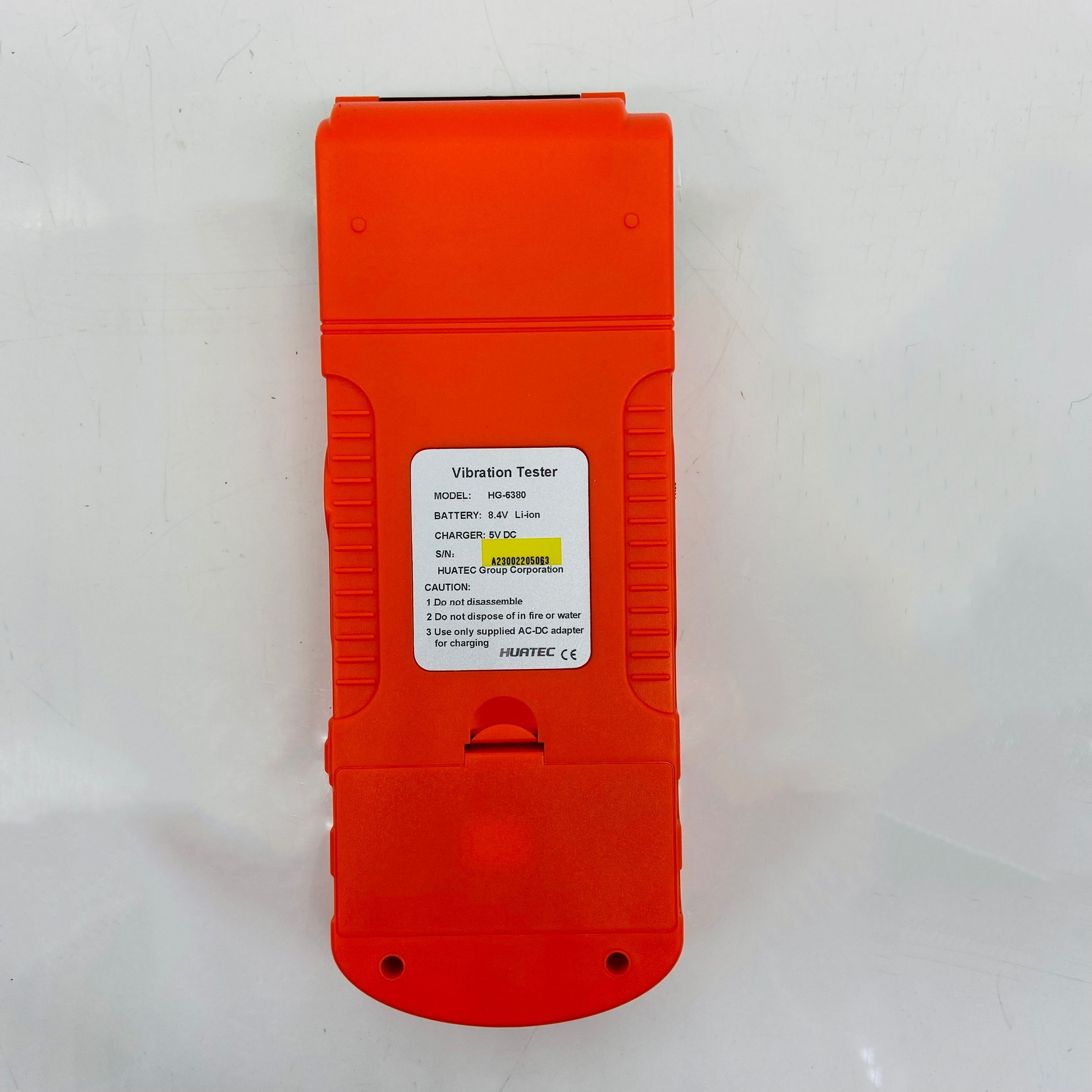

Handheld Portable Vibration Analyzer With Fft Analysis Function

Portable Vibration Analyzer with FFT Analysis Function

The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can be used not only to test the acceleration, velocity, and displacement of vibration but also perform simple failure diagnosis.

Specifications:	HG-6380
Testing range (Metric)	Acce: 0.1 ~ 205.6 m/s²(peak) Velo: 0.1 ~ 400.0 mm/s(RMS) Disp: 0.001 ~ 9.0 mm(peak-peak)
Testing range (Imperial)	Acce: 0.01 ~ 22.00 g(peak) Velo: 0.01 ~ 15.75 in/s(RMS) Disp: 0.1 ~ 356.3 mil(peak-peak)
Freq range	Acceleration: 10Hz ~ 200Hz, 10Hz ~ 500Hz,10Hz ~ 1KHz, 10Hz ~ 10KHz Velocity: 10Hz ~ 1KHz Displacement: 10Hz ~ 500Hz
Frequency resolution	0.25Hz
Data memory	100 × 80 pieces of data and 100 spectrums
Software	Yes
Temp	0℃ ~ 40℃
Tolerance	±5%
Speed measuring range	30 ~ 300000 rpm corresponding to 0.5 ~ 5000Hz
Measuring distance	0.15 ~ 1m
Display	TFT 320×200 pixels with RGB
Data interface	USB
Overall dimensions	212×80×35
Printer	Integrated thermal
Weight	320g
Battery	Rechargeable Li battery,1500mAh
Continuous working time	About 50h

HG-6380 uses piezoelectric acceleration transducer to convert vibration signal into electric signal. Results including RMS of velocity values, peak-peak value of displacement, peak values of acceleration or real-time spectral charts are displayed or printed out. It can not only measure the three parameters, but also rotational speed.

The vibration meter is designed to test conventional vibration, especially the vibration test in rotating and reciprocating machines. It can test the acceleration, velocity, and displacement of vibration as well as rev (or inherent frequency), also perform simple failure diagnosis.

The technical specifications of HG-6380 comply with the requirements of GB 13823.3. HG-6380 is widely used in machinery, power, metallurgy, automobile and other industrial fields.

Standard delivery

Main unit. 1pc

Power Adapters

(input:220V/50Hz, output:9V/1000mA) 1pc

Power Adapters (input:110V/50Hz,output:9V/1000mA) 1pc

Piezoelectric sensors 1pc

Magnetic seat (with 2 bolts) 1pc

Manual 1pc

Communication cable

Package case 1pc

Optional accessories

Speed transducer (Lacer)

PC Software

Probe
