Leakage damage detection Geomembrane (impervious membrane) leakage
damage detector
General introduction
Geomembrane leak detection equipment, at the scene of the
absorption adopt a generation of user feedback, on the basis of the
integration of various conditions around the application
experience, further optimization, by testing the large, improve the
core component of pressure, make the output voltage of up to 50 kv,
according to check the thickness of the geomembrane, conductivity,
and soil dry and wet sensitivity can fit match, with better easily
detect funnelled position, and continue to alarm prompt.This system

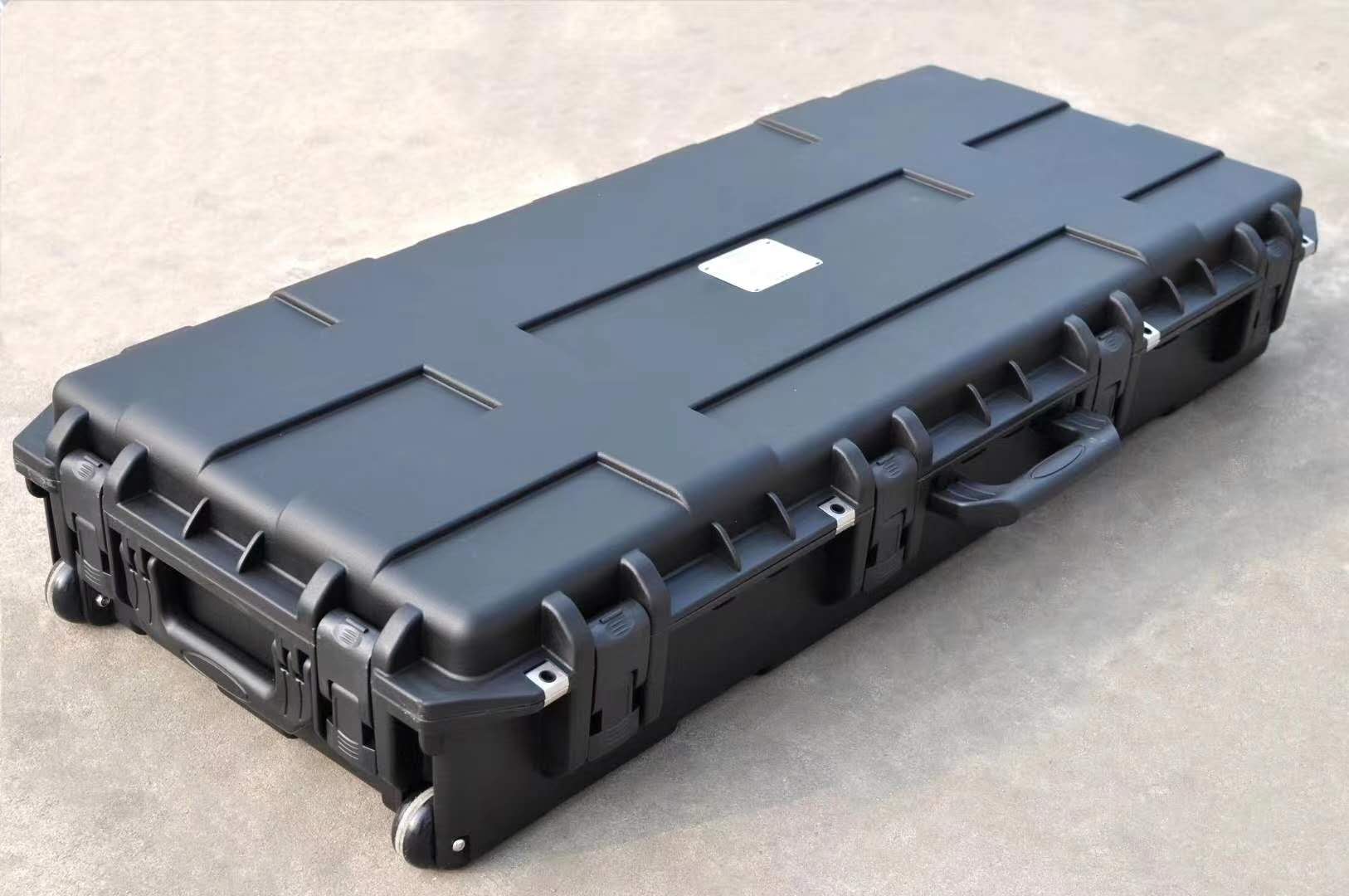

equipment still has good portability and operability. After the
upgrade, the output is more linear and the detection of leakage
point is more efficient. In view of the large battery capacity
doubling to 4400AMH, it is more suitable for long-term continuous
construction in the field.
Applicable occasion
Leakage damage detection of landfill, tailings dam body leakage
damage detection, landscape lake leakage damage detection,
aquaculture pond leakage damage detection, sewage storage pond
leakage damage detection, chemical solid waste treatment pond
leakage leakage leakage
Specific application occasion
Geomembrane (impervious membrane) leakage damage detector is
suitable for landfill leakage damage detection, tailings dam
leakage damage detection, landscape lake leakage damage detection,
aquaculture pond leakage damage detection, sewage storage tank
leakage damage detection and other construction leakage detection.
Applicable types of geomembrane are: HDPE LDPE PVC polypropylene
asphalt geomembrane conductive supporting geomembrane any other
electrically isolated materials. The types of soil film roadbed
are: compacted clay with suitable conductivity, conductive
concrete, suitable conductive GCL, conductive aluminum foil of soil
engineering material, etc.
Main technical performance:
1. Output high voltage: 0.6kV ~ 50KV (stepless continuous
adjustable)
2. Detection thickness: 0.1~35mm (affected by the soil environment
on site)
3. Direct indication of output high voltage value
4. Variable sensitivity
5. Battery: 12V/2200mA,rechargeable Li-ion battery
6. Power consumption: ≤5W
7. Main engine volume: 220 × 130 × 88 mm
8. With background light
9. Instantaneous power on, automatic power off and shutdown
10.3 LIQUID crystal display output voltage, full touch panel
11. Alarm: Peak-ringing alarm
