    HUH-6M Ultrasonic Hardness Tester Handheld Manual Probe Brinell Rockwell Vickers

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HUH-6M
    Certification : CE
    Price : USD3450-USD3900/SET
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10 Sets/Month
    Delivery Time : 7-10 working days after receipt of your payment
    • Product Details
    • Company Profile

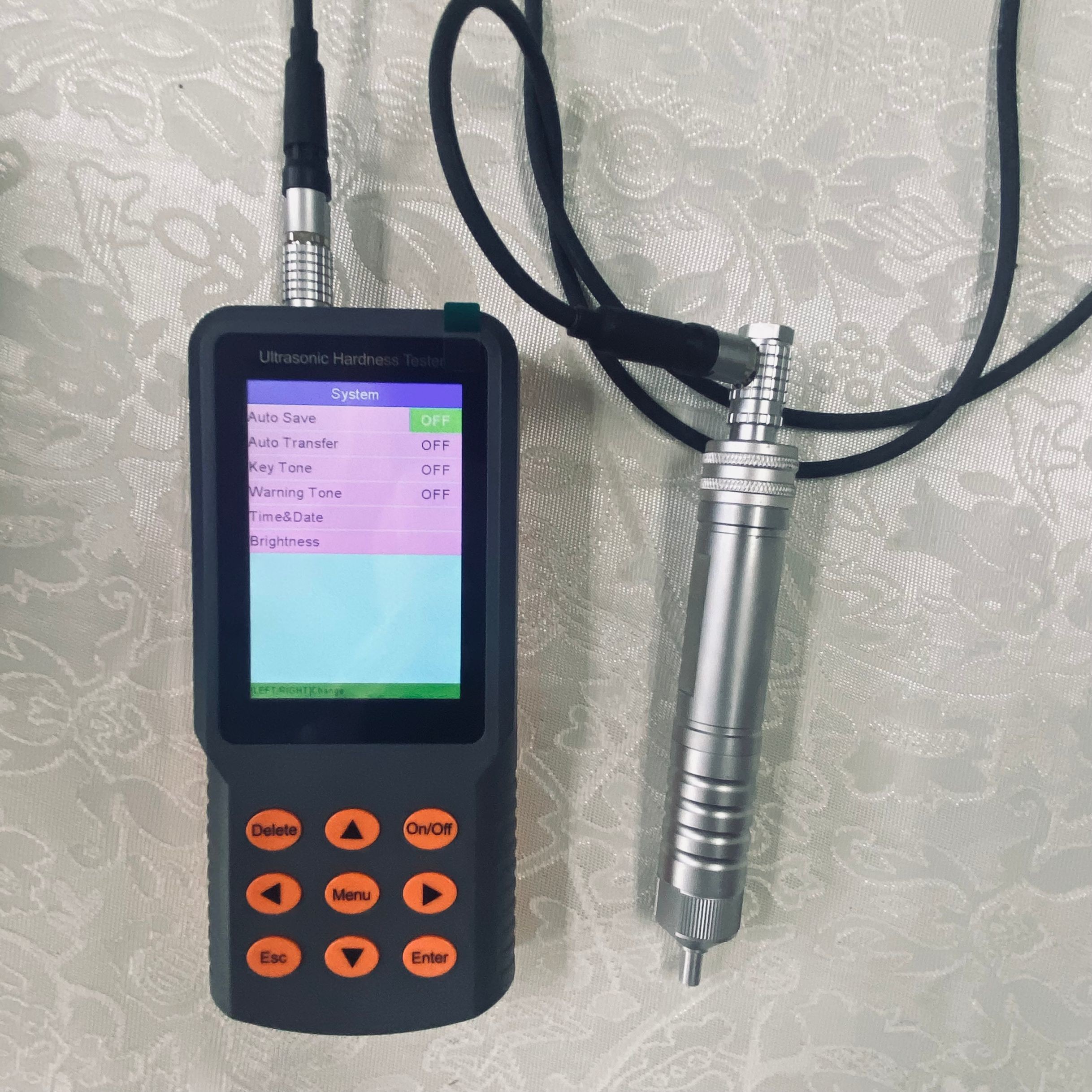

    HUH-6M Ultrasonic Hardness Tester Handheld Manual Probe Brinell Rockwell Vickers

    HUH-6M Handheld Manual probe Brinell Rockwell Vickers Ultrasonic Hardness Tester

    Product overview

    There are many types of hardness testing methods,commonly used methods include HB, HRC, HV, HL, etc. But all these methods have boundness. The test force of HB and HRC is strong, so the indentation is big, and the damage to the surface is obvious. HV is tested by optical method, which needs very professional and technical personnel to operate, and cannot directly test large workpiece. And our ultrasonic hardness tester HUH-6M uses ultrasonic contact impedance method to compare and test patterns, this new method brings advantages of high precision, fast speed, portable, easy operation, etc.

    Technical parameters:

    Model

    HUH-6M

    Standard

    DIN50159-1-2008; ASTM-A1038-2005; JB/T 9377-2010; JJG-654-2013; GBT34205-2017

    Range

    HV50-1599,HRC20-76,HB76-618,HRB41-100,HRB41-100,HRA61-85.6,Mpa255-2180

    Test Error

    HRC:±2HRC; HB:±3%HB; HV:±3%HV

    Maximum allowable relative error

    Hardness of standard test block

    Maximum allowable relative error of hardness tester%

    HV10

    HV5

    HV2

    HV1

    HV0.8

    HV0.3

    HV0.1

    <250HV

    4

    4

    4

    4

    4

    5

    5

    250HV-500HV

    4

    4

    4

    4

    4

    6

    6

    >500HV-800HV

    4

    4

    5

    5

    5

    7

    7

    >800HV

    4

    4

    6

    6

    6

    8

    8

    Probe test force

    2kgf(optional0.5kgf,1kgf,5kgf,10kgf)

    Working temperature

    -20℃~50℃

    • Working humidity

    <=85%

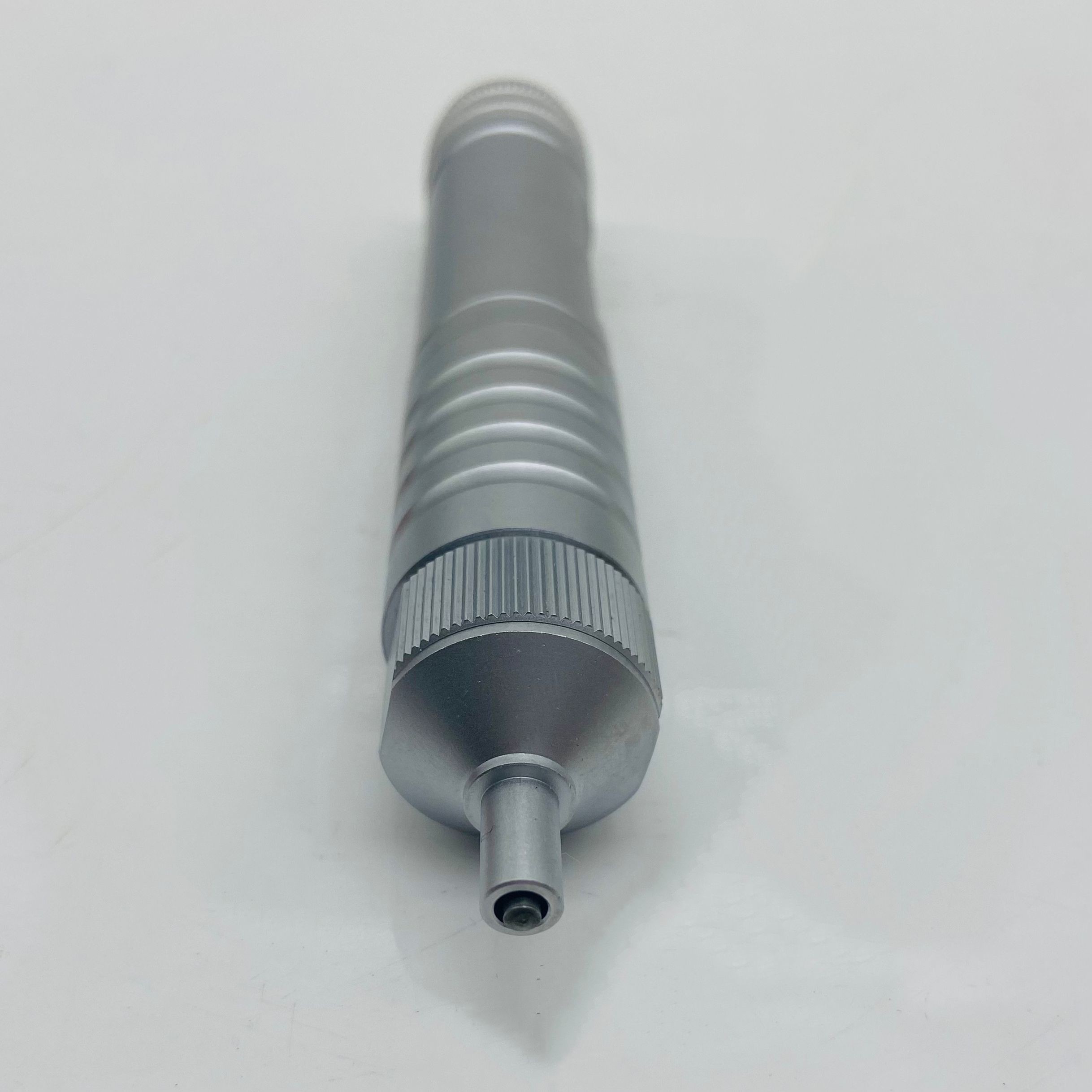

    Probe parameters:

    Probe

    0.5kgfmanual probe

    1kgfmanual probe

    2kgf manual probe

    5kgf manual probe

    10kgf manual probe

    Accessory

    Optional accessory

    Optional accessory

    Standard accessory

    Optional accessory

    Optional accessory

    Test force

    5N

    10N

    20N

    50N

    98N

    Diameter

    22mm

    22mm

    22mm

    22mm

    22mm

    Length

    150mm

    150mm

    150mm

    150mm

    150mm

    Resonant rod diameter

    2.4mm

    2.4mm

    2.4mm

    2.4mm

    2.4mm

    Maximum roughness of test surface

    Ra<3.2um

    Ra<3.2um

    Ra<5um

    Ra<10um

    Ra<15um

    Minimum workpiece weight

    0.3kg

    0.3kg

    0.3kg

    0.3kg

    0.3kg

    Minimum workpiece thickness

    2mm

    2mm

    2mm

    2mm

    2mm

    Applications

    • Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part

    • Hardness test of axle and thin-wall pipes and vessels

    • Hardness test of wheels and turbine rotors

    • Hardness test of bit edge

    • Hardness test of welding parts

    • Measure the depth of deep hole with certain aperture, concave and convex mark with large radians, and irregular plane

    • Hardness test of most ferrous and nonferrous metals and their alloys in industrial production

    • Etc.

    Functional characteristics

    • New appearance design, innovative sculpt, convenient to hold and good craft.

    • 3.5 inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display.

    • Full English display, menu-type operation, few keys, simple and convenient to operate.

    • For materials with different elastic modulus, only a simple point calibration is required to adapt to the new material.

    • Provide multi-point calibration function for any hardness standard. For materials without conversion table, users only need to prepare 2 to 10 test samples with different hardness to directly calibrate the hardness(Hardness standard is arbitrary, as long as these 2 to 10 samples have the same standard).

    • High accuracy -- ±3%HV, ±3%HB, ± 1.5HR (using test stand), according with the test error standard of GB/T-34205, JJF1436 and JB/T9377.

    • Tiny test indentation - smaller than a Leeb hardness tester and requires a high-power microscope to see.

    • High test speed -- output test results within 2S.

    • Easy to test on assembly line -- compare with Leeb hardness tester.

    • 50 sets of data storage -- the data includes time information.

    • 360° test without correction.

    StandardDelivery:Main unit, Probe (2kgf), Probe cable, 5V ac power adapter,Custom-made carrying case, Standard test block

    ◣Optional Accessories:Probe(optional0.5kgf,1kgf,5kgf,10kgf)
