    DC AC Tasla Meter Digital Gauss Meter For Inspecting Checking Flux Density

    Ask Lasest Price
    Brand Name : Huatec
    Model Number : HGS-10C
    Certification : ISO CE GOST
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 500 sets one month
    Delivery Time : 3~7 working days
    • Product Details
    • Company Profile

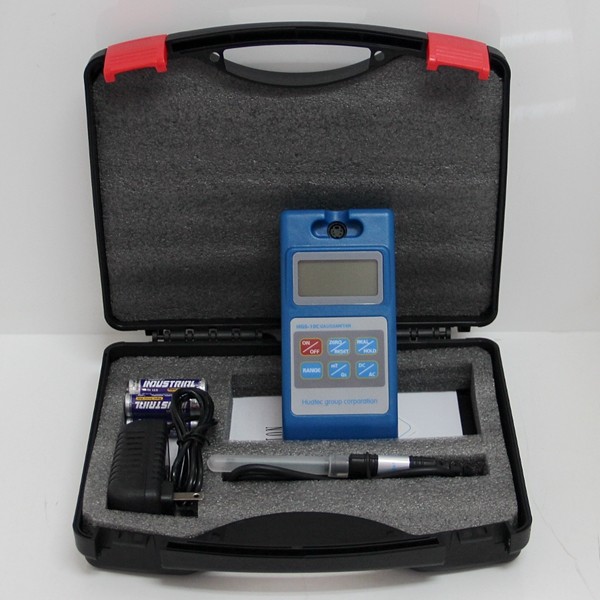

    DC AC Tasla Meter Digital Gauss Meter For Inspecting Checking Flux Density

    For Inspecting & Checking Flux Density DC And AC Both Tasla Meter Digital Gauss Meter


    The Tasla meter is a special instrument used for inspecting & checking flux density ,which is also one of the most universally devices in the field of magnetic measurement.


    Model HGS-10C digital Tasla meter is controlled by the SCM, which is suitable for handle operation.It can be used to measure DC or AC magnetic field and flux dencity.The device can be carried on one’s person. It is characterized by its wide measuring range,simple operation and clear display. It is still added with the function of maintenance such as holding Measure Value/Peak Value, As mT or Gs unit of display can be change over, Measuring range of 200mT or 2000mT can be chose, and others that as resetting zero by key and so on. The power is one piece of battery 9V. It can be used continually about 20 hours.


    Reality Working Domain:

    1.Magnetic field distribution of material surface

    2. Working magnetic field produced fro some instrument that as iron-removing device,magnet-selecting machine, magnet chuck, magnet spool and demagnetizing coil

    3. Leakage Magnetic iron-surface


    Technical parameter:

    Range0~200mT~2000mT
    Accuracy±2%
    Sensitivity0.01mT, 0.1mT
    AC Magnet Field50-200Hz
    Temperature of environment5℃-40℃
    Relative humidity20%-80%(no condensation)
    Power SupplyBattery 9V, constant DC power
    Dimension150mm×70mm×30mm
    WeightN.W: 500g G.W:900g
    Display4½ LCD

    Shape of the device:
    1. Sensor Connecting
    2. LED Screen
    3. Zero/Reset Reading

    DC AC Tasla Meter Digital Gauss Meter For Inspecting Checking Flux Density
