DAC AVG Curves Digital Ultrasonic Flaw Detector Measuring Range 2.5～5000MM

Ask Lasest Price
Brand Name :	Huate
Model Number :	FD201B
Certification :	ISO CE GOST
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	500 sets one month
Delivery Time :	3~7 working days

Add to Cart

Product Details
Company Profile

DAC AVG Curves Digital Ultrasonic Flaw Detector Measuring Range 2.5～5000MM

DAC AVG Curves Digital Ultrasonic Flaw Detector Measuring Range 2.5～5000MM

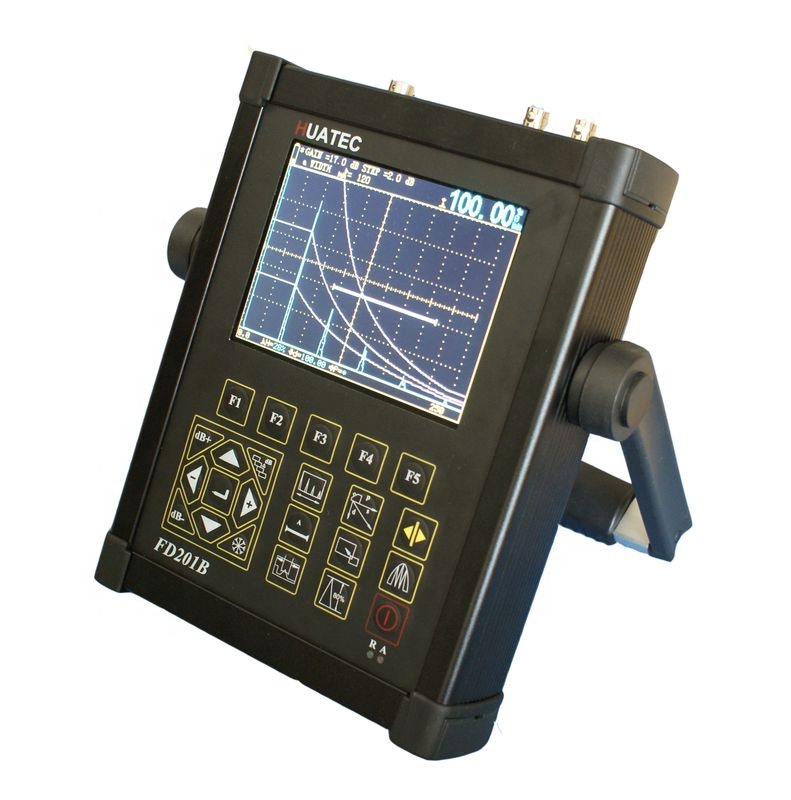

Features for digital ultrasonic flaw detector FD201B:

DAC, AVG curves

AWS function

High-speed capture and very low noise

Gate and DAC alarm;Acoustic-Optical alarm

Solid metal housing (IP65)

High contrast viewing of the waveform from bright

Powerful pc software and reports can be export to excel

1.Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)

2. Automated switch three staff gauge ((Depth d, level p, distance s)

3. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated

4. Ten independence setup, any criterion can be input freely, we can work in the scene without test block

5. Big memory of 300 A graph and 30000 thickness value

6. Automated gain and gain scan, automated echo degree

7. Peak hold and Peak memory

8. Powerful PC software and reports can be export to excel

9. RS232/USB

10.The embeded software can be online updated

11.Li battery, continue working time up to 10 hours

12.Display freeze

13.Lock and unlock function of system parameters

14.Dormancy and screen savers

15.Electronic clock calendar

16.Two gates setting and alarm indication

Specifications

Title	Parameter	Title	Parameter
Measuring Range(mm)	0 ～ 5000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.2%	Pulse Displacement(μs)	-20 ～ +3400
Sensitivity Leavings	＞60dB	Zero(μs)	0.0 ～ 99.99
Dynamic range	＞32dB	Port Type	BNC Q9
Resolving Power	≥40	Operating Temperature (℃)	-20～50
Frequency Range(MHz)	0.5 ～ 15	H×W×D(mm)	240×180×50
Gain(dB)	0 ～ 110	Weight(kg)	1.8
Material Velocity(m/s)	1000 ～ 9999
